The Cisco^® IP Phone 6800 Series is a cost-effective, high-fidelity voice communications portfolio designed to improve your organization’s person-to-person communications while reducing your operating costs on approved Unified- Communications-as-a-Service (UCaaS) platforms.

The 6800 Series combines an attractive, new ergonomic design with “always-on” reliability and secure encrypted communications. The phones deliver advanced IP telephony features and wideband audio capabilities with an easy-to-use, full-featured voice communications experience.

The Cisco IP Phone 6800 Series introduces three phone models (and an optional Key Expansion Module) to the Cisco Multiplatform Phone (MPP) portfolio (Figure 1):

●   Cisco IP Phone 6821 with Multiplatform Firmware, supporting two SIP registrations

●   Cisco IP Phone 6841 with Multiplatform Firmware, supporting four SIP registrations

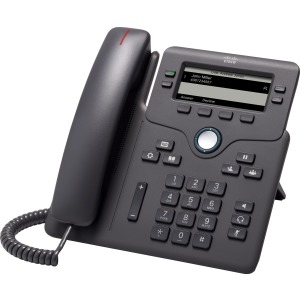

●   Cisco IP Phone 6851 with Multiplatform Firmware, supporting four SIP registrations
Only the 6851 supports the Key Expansion Module (KEM).

Cisco IP Phone 6800 Series product overview

The line buttons on each model are fully programmable. You can set up line buttons to support either SIP registrations, or call features, such as speed dialing. You can also boost productivity by handling multiple calls for each SIP registration, using the multiple-calls-per-line appearance feature. Tricolor LEDs on the line buttons support the calling features and make the phone simple to use.

Fixed function buttons on the 6800 series phones give you one-touch access to service, messaging, directory, hold/resume, transfer, and conference features. A full-duplex speakerphone lets you set up clear multiparty conferences for flexible, productive collaboration. There are fewer fixed function buttons available on the 6821 than on the 6841 and 6851 (see Table 1 for details).

The Cisco IP Phone 6800 Series maintains the same usability standards and standards for a context-sensitive user experience as the Cisco IP Phone 7800 Series. The 6821 IP phone has a 2.5-inch (240x120-pixel) grayscale display with white backlighting for easy reading. The 6841 and 6851 IP phones each have a high-resolution 3.5-inch (396x162-pixel) grayscale display with white backlighting. Localized language support is available for global users. See Table 6 for a list of available languages.

The 6800 Series is also energy-efficient and eco-friendly, to support green initiatives. The 6821 and 6851 support Power over Ethernet (PoE) Class 2. The 6821, 6841, and 6851 are Energy Star certified. The 6841 and 6851 support a power-save option that reduces power consumption during off-hours, saving costs by increasing energy efficiency.

The 6800 Series is ideal for businesses that want to update their phone systems from traditional analog or digital-based systems to an IP communications system with supported multiplatform call control systems.

Cisco IP Phone 6800 Key Expansion Module product overview

The Cisco IP Phone 6800 Key Expansion Module (KEM) extends the capabilities of the Cisco IP Phone 6851 with additional buttons. This module adds 14 physical buttons along with access to 14 additional buttons via the page buttons, for a total of 28 additional buttons. The KEM supports the Programmable Line Key (PLK) function, but does not support any SIP registrations. Calls may be monitored and answered using the PLK function, but calls may not initiated from the KEM. The 6851 IP phone supports one KEM only.

The 6800 KEM comes with a foot stand and cable to connect it directly to the base device in a traditional side-by-side configuration (Figure 2).
