Brand
CISCO
Model
AIR-ANT2524DW-R

Spec
Type
Antenna
Specifications
Color: White

Antenna type: Dual-band dipole

Operating frequency range: 2400 to 2500 MHz; 5150 to 5850 MHz

Nominal input impedance: 50 Ohms

VSWR: Less than 2:1

Peak Gain @ 2.4. GHz: 2 dBi

Peak Gain @ 5 GHz: 4 dBi

Elevation plane 3dB beamwidth @2.4 GHz: 63 degrees

Elevation plane 3dB beamwidth @ 5 GHz: 39 degrees

Connector type: RP-TNC plug

Antenna length: 6.63"

Weight: 1.3 oz.

Environment: Indoor, office

Features
Features
System Requirements:
This antenna is designed for use with Cisco Aironet access points that support simultaneous operation in the 2.4 GHz band and the 5 GHz band and that have dual-band antenna ports, labeled as such in orange text.

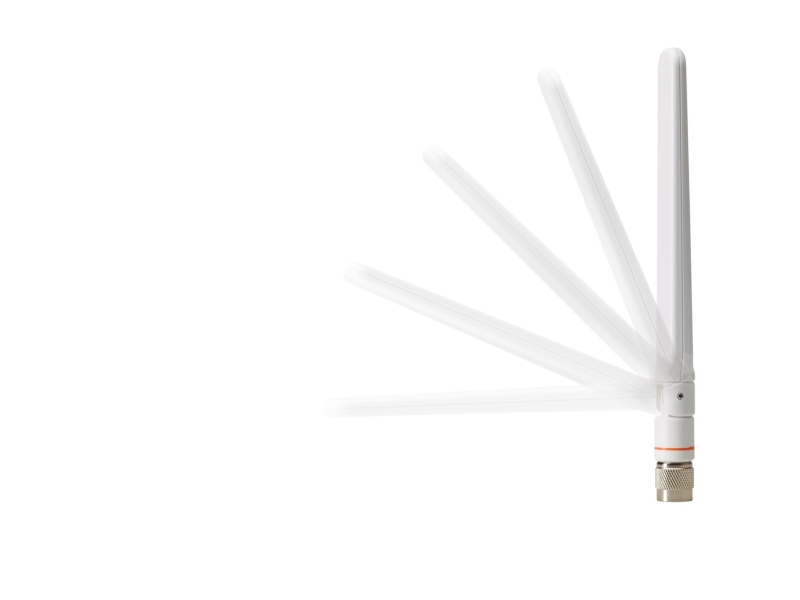

The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its joint.
