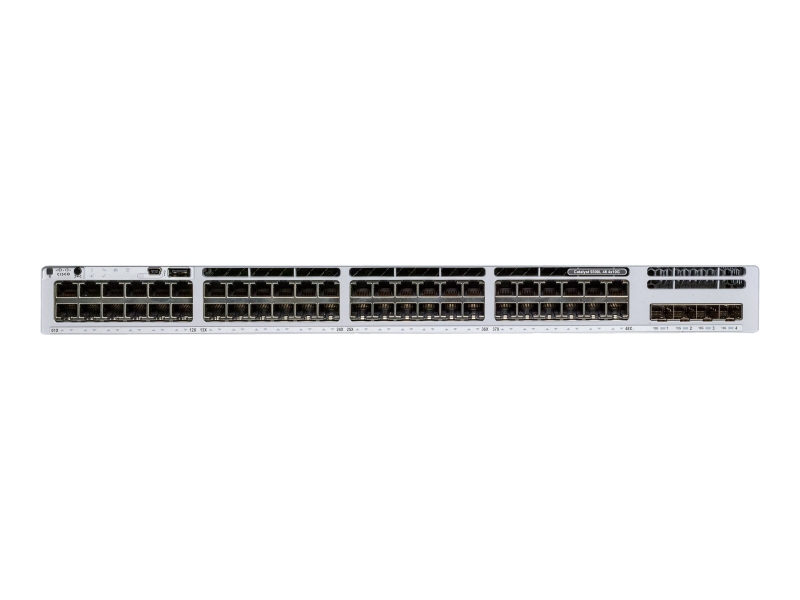

Cisco - Catalyst 9300L 48p PoE, Network Essentials ,4x10G Uplink C9300L-48P-4X-E
SKU
294163
Brand
MPN
C9300L-48P-4X-E
Warranty
Standard Manufacturer's Warranty
$12,250.00
Buy Now And Earn 12250 Reward Points!
Cisco Catalyst 9300L - Network Essentials - switch - L3 - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (505 W)
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power | AC 120/230 V (50 - 60 Hz) |
| Weight | 7.03 kg |
| Subtype | Gigabit Ethernet |
| Capacity | IPv4 routes: 32000 ? IPv6 routes: 16000 ? Multicast scale: 8000 ? QoS scale entries: 5120 ? ACL scale entries: 5120 ? Routed ports: 416 ? VLANs supported: 4094 ? Switched virtual interfaces (SVIs): 1000 |
| Features | QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, 16MB packet buffer, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR |
| PoE Budget | 505 W |
| Device Type | Switch - 48 ports - L3 - stackable |
| Performance | Switching capacity with stacking: 496 Gbps ? Switching capacity: 176 Gbps ? Forwarding rate: 130.95 Mpps ? Forwarding rate with stacking: 369.05 Mpps |
| Enclosure Type | Rack-mountable |
| Power Redundancy | Optional |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Dimensions (WxDxH) | 44.5 cm x 4.4 cm x 40.9 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz |
| Jumbo Frame Support | 9198 bytes |
| Product Description | Cisco Catalyst 9300L - Network Essentials - switch - 48 ports - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32000 entries |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Cisco Catalyst 9300L - Network Essentials - switch - L3 - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (505 W)
