Cisco (cp-8861-k9=) Cisco Uc Phone 8861 Cp-8861-k9=

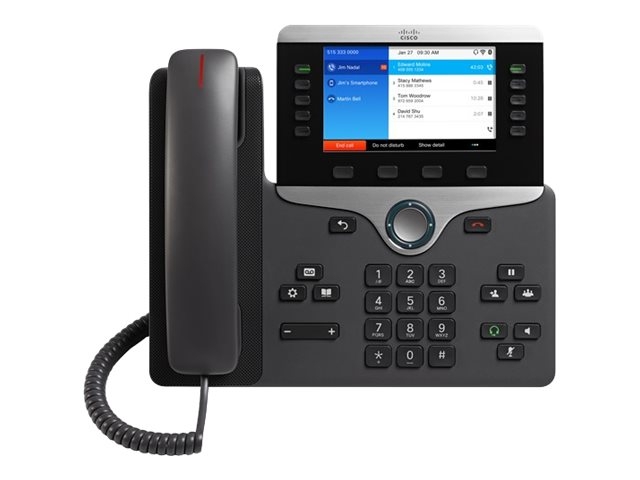

The Cisco® IP Phone 8861 is a business-class collaboration endpoint that
combines high-fidelity, reliable, secure, and scalable voice over IP
communications with Cisco Intelligent Proximity for telephony integration for
personal mobile devices to support small to large enterprise businesses.
With the IP Phone 8861, you can increase personal productivity through an
engaging user experience that is both powerful and easy-to-use. The IP Phone
8861 combines an attractive new ergonomic design with wideband audio for crystal
clear voice communications, ?always-on? reliability, encrypted voice
communications to enhance security, and access to a comprehensive suite of
unified communications features from Cisco on-premises and hosted infrastructure
platforms. The IP Phone 8861 also can be supported on third party hosted call
control services.
In addition, Cisco Intelligent Proximity brings the worlds of desk and mobile
together for you when you are using your mobile device at the desk for your
work. You can move the audio path over to the IP Phone 8861 during active mobile
calls to take advantage of its superior audio acoustics. An example would be to
share a conversation with a colleague who you want to listen in. This capability
gives you greater flexibility and a superior user experience when at your desk.
The IP Phone 8861 comes standard with two USB ports so you can charge your
personal mobile devices when at your desk, and stay connected when away from
your desk.
The Cisco IP Phone 8861 offers five programmable line keys. You can configure
keys to support either multiple directory numbers or calling features such as
speed dial. You can also boost productivity by handling multiple calls for each
directory number using the multicall-per-line feature. Fixed-function keys give
you one-touch access to applications, messaging, directory, as well as
often-used calling features such as hold/resume, transfer, and conference. A
five-way navigation cluster helps you transition through menus more easily.
Backlit acoustic keys provide flexibility for audio path selection and
switching.
Other key features of the phone include:
? The Cisco IP Phone 8861 offers a 5-in. high-resolution (800 x 480) widescreen
VGA backlit color display. Localized language support, including right-to-left
on-screen text, meets the needs of global users.
? The phone offers a built-in Gigabit Ethernet switch for both network
connection and your PC connection.
? The phone also supports campuses with 802.11a/b/g/n/ac WLAN enabled.
? Support for Cisco EnergyWise™ technology makes the Cisco IP Phone 8861 more
energy-efficient and ecofriendly; the phone is qualified by the Energy Star
organization.
? An optional wall-mount kit is orderable as a spare part for customers seeking
this capability.
? Up to three optional IP Phone 8800 Key Expansion Modules can be supported for
108 additional line/feature keys.
? Charcoal and white color options.
Features and Benefits
Table 1 lists features and benefits of the Cisco IP Phone 8861.
Table 1. Features and Benefits
Features
Benefits
Hardware Features
Ergonomic design
? The phone offers an easy-to-use interface and provides a traditional
telephony-like user experience.
Graphical display
? The 800 ? 480, 24-bit color, 5-in. WVGA display provides scrollable access to
calling features and
text-based XML applications.
Handset
? The handset is a standard wideband-capable audio handset (connects through an
RJ-9 port).
? The standard coiled cord has a custom end for concealed cable routing beneath
the phone (cord length is approximately 21 in. [55 cm] coiled and up to 72 in.
(183 cm) extended).
? The handset is hearing aid-compatible (HAC) and meets Federal Communications
Commission (FCC) loudness requirements for the Americans with Disabilities Act
(ADA). You can achieve Section 508 loudness requirements by using
industry-standard inline handset amplifiers such as Walker Equipment W-10 or
CE-100 amplifiers. The dial pad is also ADA-compliant.
Speaker phone
? The full-duplex speakerphone gives you flexibility in placing and receiving
calls with hands free.
Analog headset
? The analog headset jack is a standard wideband-capable RJ-9 audio port.
AUX port
? You can use an auxiliary port to support electronic hookswitch control with a
third-party headset connected to it.
External audio ports
? The phone has a 3.5-mm stereo line in/out jack (for optional external headset,
speakers, or headphones).
USB
? Two USB ports enhance the usability of call handling by enabling wired or
wireless headsets, as well as provide charging capability to mobile devices such
as smartphones or tablets.
◦ A side USB port provides up to 500mA power output at 5V or 2.5W.
◦ A back USB (in yellow) port provides 500mA power output and is upgradeable to
support up to 2.1A power output at 5V or 10.5W.
Ethernet switch
? An internal 2-port Cisco Ethernet switch allows for a direct connection to a
10/100/1000BASE-T Ethernet network (IEEE 802.3i/802.3u/802.3ab) through a RJ-45
interface with single LAN connectivity for both the phone and a co-located PC.
? The system administrator can designate separate VLANs (IEEE 802.1Q) for the PC
and phone, providing improved security and reliability of voice and data
traffic.
Bluetooth
? The phone offers Bluetooth 3.0 Enhanced Data Rate (EDR) Class 1 technology (up
to 66-ft [20m] range).
? Hands-Free Profile (HFP) is supported for untethered headset connections and
voice communications.
? Phone Book Access Profile (PBAP) is supported for phone book object exchange
between devices.
Wi-Fi client
? As an alternative to wired Ethernet, the Cisco IP Phone 8861 supports a Wi-Fi
radio with integrated antenna enabling connectivity to a Wi-Fi access-point
infrastructure, thereby saving on the labor costs of pulling Ethernet cables to
every work location. Complete Wi-Fi specifications are included in Table 4 later
in this document.
Keys
? The phone has the following keys:
◦ Line keys
◦ Soft keys
◦ Back and release keys
◦ Four-way navigation and select keys
◦ Hold/Resume, Transfer, and Conference keys
◦ Messaging, Application, and Directory keys
◦ Standard keypad
◦ Volume-control toggle key
◦ Speakerphone, headset, and mute keys
Backlit indicator
? The phone supports backlit indicators for the audio path keys (handset,
headset, and speakerphone), select key, line keys, and message waiting.
Replaceable bezel
? The phone includes a black bezel; an optional silver bezel is also orderable
separately.
Dual-position foot stand
? The display is easy-to-view and the buttons and keys are easy-to-use. The
two-position foot stand supports viewing angles of 35 and 50 degrees; you can
remove the foot stand for wall mounting, with mounting holes located on the base
of the phone.
Wall-mountable
? You can install the phone on a wall using an optional wall-mount kit
(orderable separately).
Key expansion module (KEM)
? The phone supports up to three KEMs to expand from 5- to 113-line buttons. You
have the convenience of many speed dials or programmable features.
Physical security
? The phone is compatible with the Kensington Security Slot (K-Slot) antitheft
system.
Power Features
IEEE Power over Ethernet (PoE)
? IEEE Power over Ethernet class 4. The phone is compatible with both IEEE
802.3af and 802.3at switch blades and supports both Cisco Discovery Protocol and
Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE).
Cisco IP Phone Power Cube 4
? This optional power cube is used as an AC-to-DC (48V) power supply for non-PoE
deployments. Use of the power cube 4 also requires the use of one of the
corresponding AC country cords
Call-Control Support
Cisco Unified Communications Manager
? 8.5.1 (Non-Secured mode Only)
? 8.6.2
? 9.1.2
? 10.5.2
? 11.0 and later
Cisco Unified Communications Manager Express (Unified CME)
? 10.0 and later through fast track
Cisco Business Edition 6000
(BE 6000)
? 8.6.2
? 9.1.2
? 10.5.2
? 11.0 and later
Cisco Hosted Collaboration Solution (HCS)
? 8.6.2 and later (using supported UCM versions above)
