Camera:
• 5K Ultra HD camera
• Support up to 60 fps
• 15.1 MP image sensor
• 1/1.7 CMOS
• 5x digital zoom (3 tele-lenses each with 50° horizontal field of view)
• f/2.0 aperture
• 83° horizontal field of view; 51.5° vertical field of view
• Auto-framing (audio + face detect)
• 5120 x 2880 pixel resolution
• Auto focus, brightness, and white balance
• Focus distance 1 m to infinity
• Standards: H.264, H.265
Audio:
• High-quality speakers
• Frequency response: 70 Hz to 20 kHz
• Max output level SPL 90dB
• High-quality 20 kHz audio
• Prepared for subwoofer (line out)
• Prepared for inductive loop (line out)
• Automatic Gain Control (AGC)
• Automatic noise reduction
• Active lip synchronization
• Speaker Tracking: 6-element microphone array for accurate speaker tracking
Input:
• Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
• Live video resolutions (encode and decode) up to 1920 x 1080p60 (HD1080p)
• Consumer Electronics Control (CEC) 2.0
• Three microphones, 4-pin mini-jack
• Two audio in from HDMI
Output:
• Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
• Live video resolutions (encode and decode) up to 1920 x 1080p60 (HD1080p)
• Consumer Electronics Control (CEC) 2.0
• 1 line out mini-jack (stereo) (Codec Plus)
• 1 RCA output for subwoofer (Quad Camera)
• 2 HDMI outputs
• HDMI input #1 supports Audio Return Channel (ARC): Audio output to Quad Camera speakers
Network:
• One Ethernet (RJ-45) 10/100/1000 for LAN
• One Ethernet (RJ-45) 10/100/1000 for direct pairing with camera
• One Ethernet (RJ-45) 10/100/1000 with Power over Ethernet (PoE) for direct pairing with Touch 10
• Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz for LAN. 2x2 MIMO
• Bluetooth 4.0 LE
Power
• 100 to 240 VAC, 50/60 Hz, 12V DC input
• Average 20 W, peak 70W
• Quad camera must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019
General:
• Operating temperature and humidity: 0°C to 40°C ambient temperature, 10% to 90% relative humidity (RH)
• Storage and transport temperature: -20°C to 60°C at RH 10% to 90% (noncondensing)
• Dimensions - Quad Camera (W x H x D): 95 x 12 x 10.3cm
• Weight - Quad Camera: 4.8kg
• Dimensions - Codec Plus (W x H x D): 35.9 x 4.3 x 14.3cm
• Weight: Codec Plus: 1.77kg

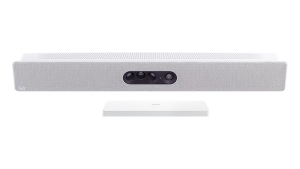

Cisco (cs-kitplus-k9) Room Kit Plus W/codec Plus Quad Camera And Touch 10. Cs-kitplus-k9
SKU
263314
Brand
MPN
CS-KITPLUS-K9
Warranty
Standard Manufacturer's Warranty
$13,805.00
Buy Now And Earn 13805 Reward Points!
Cisco Webex Room Kit Plus is a powerful collaboration solution that integrates with flat‑panel displays to bring more intelligence and usability to your medium to large-sized meeting rooms – whether registered on the premises or to Cisco Webex in the cloud.
Cisco Webex Room Kit Plus Overview
Cisco Webex™ Room Kit Plus delivers the unmatched video and audio experience customers have come to expect from Cisco. In addition, new capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations – further removing the barriers to usage and deployment of video in medium to large-sized rooms.

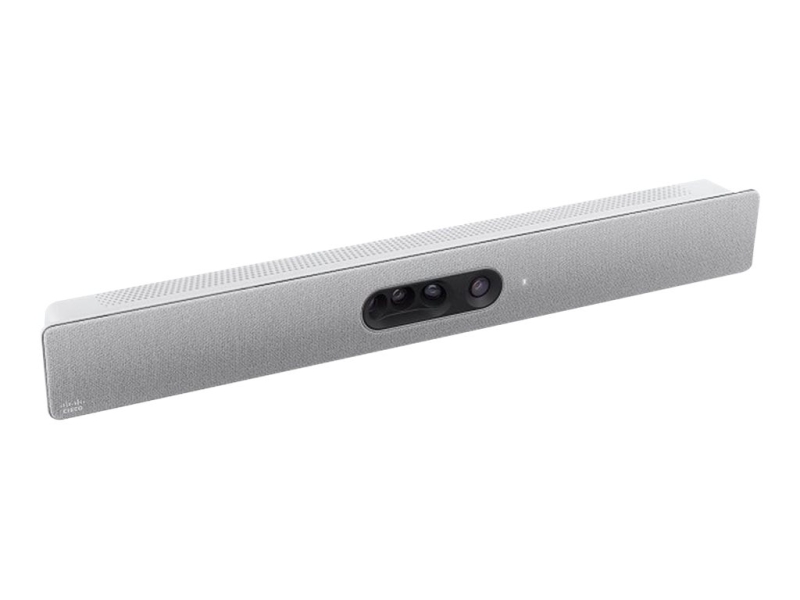

The Room Kit Plus – comprising a powerful codec and a quad-camera bar with integrated speakers and microphones* – is ideal for rooms that seat up to 14 people. It offers sophisticated camera technologies that bring speaker-tracking and auto-framing capabilities to medium to large-sized rooms. The product is rich in functionality and experience but is priced and designed to be easily scalable to all of your conference rooms and spaces – whether registered on the premises or to Cisco Webex.
Figure 1. Cisco Webex Room Kit Plus in Large Conference Room
Cisco Webex Room Kit Plus Features and Benefits
| Feature | Benefit |
| Smart meetings | ● Brings intelligent views to medium to large-sized rooms with discreet, integrated cameras ◦ Best overview: Automatically detects meeting participants and provides ideal framing ◦ Speaker tracking: Detects and switches between active speakers and provides ideal framing ● Great audio experience with integrated speakers and microphones (microphones for speaker tracking only) ● Automatic noise suppression reduces disruptive sounds coming from the meeting room (e.g., typing, paper rustling) ● Simplified meeting-join experience with One Button to Push (OBTP) for scheduled devices in a Cisco Webex meetings, whether registered on-prem or to Cisco Webex ● Automatic wake-up: System “wakes up” when someone walks into the room, and recognizes them through their mobile device ● Easily controlled by the Cisco Touch 10 control unit or with a Cisco Webex Teams app ● End-to-end security |
| Smart presentations | ● Supports dual screens for video and content ● Supports dual content sources for local meetings ● View white board content and annotations shared from Cisco Webex Board, Cisco Webex DX80, or Cisco Webex Teams app; participate in white boarding sessions through Cisco Webex Teams app** ● 4K content sharing (local 30 fps; remote 5 fps) ● Wired or wireless content sharing |
| Smart rooms | ● Metrics: Counts people in the room, enabling analytics for better resource planning ● Automatic screen/display integration through HDMI CEC ● Supports Wi-Fi ● In-room control: Control peripherals such as lights and blinds through the Cisco Touch 10 |
| Built for cloud and premises | ● Flexibility to register on the premises or to the cloud through Cisco Webex ● Hardware is optimized to run on a cloud platform, for great experiences in shared rooms and spaces with easy access to hosted conferences |
