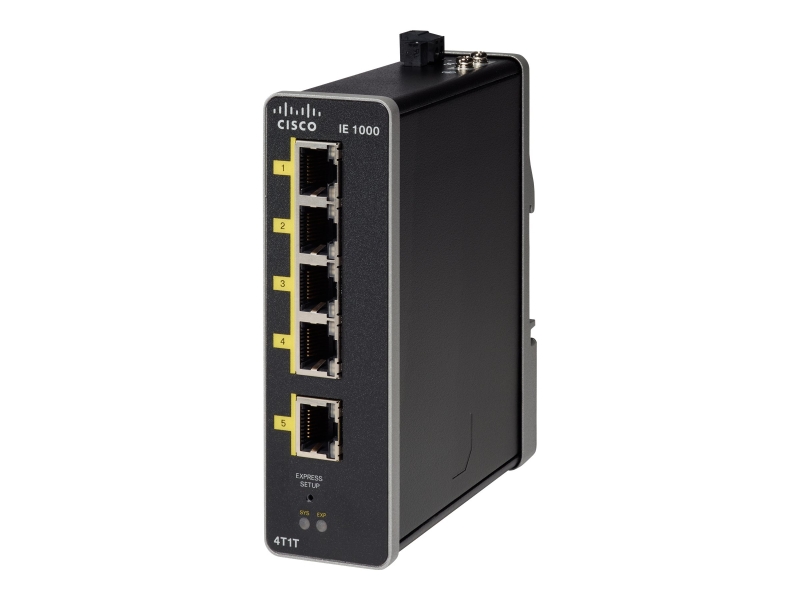

Cisco (ie-1000-4t1t-lm) Ie-1000 Gui Based L2 Switch 5 Fe Copper Ports Ie-1000-4t1t-lm

SKU
267420
Brand
MPN
IE-1000-4T1T-LM
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$965.00
Buy Now And Earn 965 Reward Points!

The Cisco® Industrial Ethernet (IE) 1000 Series Switches are compact rugged switches aimed to operational technology (OT) users with limited IT network knowledge. The IE 1000 Series Switches provide an easy transformation from the legacy factory to digital solution. For machine builders and machine-to-machine (M2M) solutions is an attractive entry level product as a GUI-based, lightly-managed switch. The IE 1000 is a good fit for locations with harsh temperatures and small spaces, and is Power over Ethernet (PoE) capable with and zero IT management.

The IE 1000 is ideal for industrial Ethernet applications where small and easy-to-be-managed hardened products are required, including factory automation, intelligent transportation systems, city-surveillance programs, building automations etc.

The Cisco IE 1000 Series Switches complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000, IE 3000, IE 4000 and IE 5000 Series managed Switches.

The IE 1000 can be easily installed on your network. Through a user-friendly web device manager, the IE 1000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced and secure multiservices over industrial networks.




Basic
Brand Name: Cisco
Ethernet Technology: Fast Ethernet
Form Factor: Rail-mountable
Layer Supported: 2
Manageable: Yes
Media Type Supported: Twisted Pair
Network Technology: 10/100Base-T
Port/Expansion Slot Details: Fast Ethernet
Power Source: Power Supply
Product Family: 1000
Product Type: Ethernet Switch
Stack Port: No
Total Number of Network Ports: 5
General Information
Brand Name: Cisco
Manufacturer Part Number: IE-1000-4T1T-LM
Manufacturer Website Address: http://www.cisco.com/c/en_au
Manufacturer: Cisco Systems, Inc
Product Model: IE-1000-4T1T-LM
Product Name: IE-1000-4T1T-LM Industrial Ethernet Switch
Product Series: 1000
Product Type: Ethernet Switch
Interfaces/Ports
Modular: No
Port/Expansion Slot Details: Fast Ethernet
Stack Port: No
Total Number of Network Ports: 5
Uplink Port: Yes
Management & Protocols
Manageable: Yes
Media & Performance
Ethernet Technology: Fast Ethernet
Media Type Supported: Twisted Pair
Network Technology: 10/100Base-T
Miscellaneous
Country of Origin: Taiwan
Environmentally Friendly: Yes
Network & Communication
Layer Supported: 2
Physical Characteristics
Depth: 114.3 mm
Form Factor: Rail-mountable
Height: 127 mm
Weight (Approximate): 499 g
Width: 38.1 mm
Power Description
Power Source: Power Supply
