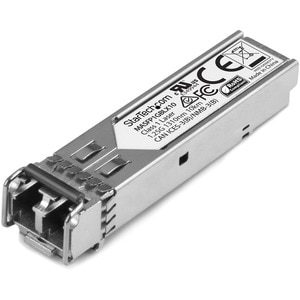

Startech Cisco Meraki Ma-sfp-1gb-lx10 Compatible Sfp - Gigabit Fiber Sfp Transceiver Module - Sm
QUICK OVERVIEW
This StarTech.com Gigabit fiber SFP is engineered to deliver reliable network connections. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality fiber transceiver module can be installed into Cisco® Meraki® switches and routers that support the Cisco Meraki MA-SFP-1GB-LX10 transceiver module, as well as other major brands of networking equipment.
This 1000Base-LX SFP delivers Gigabit connectivity over single-mode fiber cable, with a range of up to 10 km (6.2 mi.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment, and it's backed by a lifetime warranty.
Built for reliable network performance
This single-mode SFP transceiver is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.
Fully compatible with Cisco Meraki and other major brands
The SM Gigabit SFP is engineered to the highest quality standards and is 100% Cisco Meraki compatible, equivalent to the Cisco Meraki MA-SFP-1GB-LX10 SFP transceiver. The StarTech.com SFP transceiver is configured and fully tested to ensure it works seamlessly with Cisco Meraki or other major brands of networking equipment.
You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.
Convenient and scalable
Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that’s compatible with a multitude of Gigabit networking devices.
Ideal for use in switches, routers, and other networking equipment, the SFP provides reliable performance, allowing you to expand your network to remote segments cost-effectively. The SFP supports single-mode fiber cable with a maximum distance of 10 km or 6.2 mi., and maximum data rates of up to 1.25Gbps. This GbE fiber SFP also supports Digital Diagnostics Monitoring (DDM / DOM).
You can count on MASFP1GBLX10 for reliable performance, backed by a lifetime warranty and free lifetime technical support.
Connector(s) | |
Local Unit Connectors | Fiber Optic LC Duplex Female |
Environmental | |
Humidity | 5~95% RH |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Storage Temperature | -40?C to 85?C (-40?F to 185?F) |
Hardware | |
Compatible Brand | Cisco Meraki |
Industry Standards | IEEE 802.3z 1000BASE-LX |
Packaging Information | |
Shipping (Package) Weight | 0 kg [0.1 lb] |
Performance | |
Compatible Networks | 1000 Mbps (1 Gbps) |
DDM | Yes |
Fiber Operating Mode | Full-Duplex |
Fiber Type | Single Mode |
Max Transfer Distance | 10 km (6.2 mi) |
Maximum Data Transfer Rate | 1.25 Gbps |
MTBF | 3,092,408 hours |
Wavelength | 1310nm |
Physical Characteristics | |
Color | Silver |
Enclosure Type | Aluminum |
Product Height | 12.5 mm [0.5 in] |
Product Length | 56.6 mm [2.2 in] |
Product Weight | 16 g [0.6 oz] |
Product Width | 130 mm [5.1 in] |
Special Notes / Requirements | |
System and Cable Requirements | For use in Gigabit fiber networking equipment and media converters |
MSA or Cisco Meraki compliant SFP port | |
What's in the Box | |
Included in Package | SFP transceiver |
Marketing Text | This 1000Base-LX SFP delivers Gigabit connectivity over single-mode fiber cable, with a range of up to 10 km. This fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. |
PI Date | Jun 2017 |
Brand Name | Startech |
Manufacturer Web Site | http://www.startech.com |
Product Type | Transceivers Module |
Cable Type | Single-Mode |
Connector | Duplex LC |
Data Transfer Rate | 1.25Gbps |
Interface | 1000 Base-LX |
Maximum Transmission Distance | 10000meter |
Slot Type | SFP |
Wavelength | 1310nm |
Depth (mm) | 56.6 |
Height (mm) | 12.5 |
Width (mm) | 130.0 |
Weight (Grams) | 16.0 |
Other Features | * MTBF: 3,092,408 hours * Supports Digital Diagnostics Monitoring (DDM / DOM) * Enclosure Type: Aluminum |
