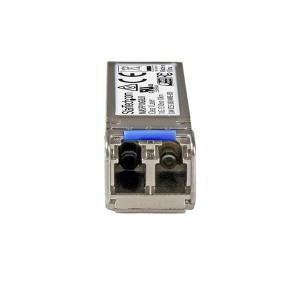

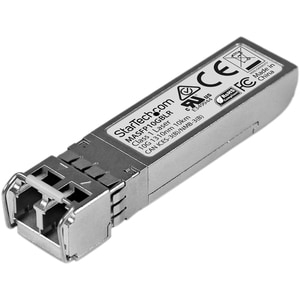

Startech Cisco Meraki Ma-sfp-10gb-lr Compatible Sfp+ - 10 Gigabit Fiber Sfp+ Transceiver - Sm Lc

SKU
261744
Brand
MPN
MASFP10GBLR
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$539.00
Buy Now And Earn 539 Reward Points!

QUICK OVERVIEW

- 10 km (6.2 mi) - 10GBase-LR - Mini-GBIC MASFP10GBLR

Overview

This StarTech.com 10 Gigabit fiber SFP+ is engineered to deliver reliable network connections. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality fiber transceiver module can be installed into Cisco Meraki® switches and routers that support the Cisco Meraki MA-SFP-10GB-LR transceiver module, as well as other major brands of networking equipment.

This 10GBase-LR SFP+ delivers 10 Gigabit connectivity over single-mode fiber cable with a range of up to 10 km (6.2 mi.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment, and it's backed by a lifetime warranty.

Built for reliable network performance

This 10 GbE SFP+ is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.

Fully compatible with Cisco Meraki and other major brands

This 10 Gigabit single-mode SFP+ is engineered to the highest quality standards and is 100% Cisco Meraki compatible, equivalent to the Cisco Meraki MA-SFP-10GB-LR SFP+ transceiver. The StarTech.com SFP+ transceiver module is configured and fully tested to ensure it works seamlessly with Cisco Meraki or other major brands of networking equipment.

You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.

Convenient and scalable

Delivering both convenience and scalability, this fiber SFP+ transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that’s compatible with a wide range of 10 Gigabit networking devices.

Ideal for use in Cisco Meraki switches, routers and other networking equipment, the SFP+ optical transceiver provides reliable performance, allowing you to expand your network to remote segments cost-effectively. The SM fiber transceiver module supports Digital Diagnostics Monitoring (DDM), a maximum distance of up to 10 km (6.2 mi.), and maximum data rates of up to 10Gbps.

You can count on MASFP10GBLR for reliable performance, backed by a lifetime warranty and free lifetime technical support.

Performance
Maximum Data Transfer Rate10 Gbps
MTBF2,104,865 hours
Wavelength1310nm
Physical Characteristics
ColorSilver
Enclosure TypeAluminum
Product Height12.6 mm [0.5 in]
Product Length58.4 mm [2.3 in]
Product Weight22 g [0.8 oz]
Product Width13.9 mm [0.5 in]
Special Notes / Requirements
NoteFor use in 10 Gigabit fiber networking equipment and media converters
System and Cable RequirementsMSA or Cisco Meraki compliant SFP+ port
What's in the Box
Included in PackageSFP+ transceiver
Performance
Max Transfer Distance10 km (6.2 mi)
Fiber TypeSingle Mode
Fiber Operating ModeFull-Duplex
DDMYes
Compatible Networks10 Gbps
Packaging Information
Shipping (Package) Weight53 g [1.9 oz]
Hardware
Industry StandardsIEEE 802.3ae 10GBASE-LR
Compatible BrandCisco Meraki
Environmental
Storage Temperature-40?C to 85?C (-40?F to 185?F)
Operating Temperature0?C to 70?C (32?F to 158?F)
Humidity5~95% RH
Connector(s)
Local Unit ConnectorsFiber Optic LC Duplex Female
Marketing Text10 Gigabit fiber SFP+ is engineered to deliver reliable network connections. Built to exacting specifications and fully tested to ensure maximum performance. It delivers 10 Gigabit connectivity over single-mode fiber cable with a range of up to 10 km (6.2 mi.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment.
PI DateMay 2017
Brand NameStartech
Manufacturer Web Sitehttp://www.startech.com
Form FactorSFP+
Product TypeTransceivers Module
Cable TypeSingle-Mode
Connector Duplex LC
Data Transfer Rate10Gbps
Interface10GBASE-LR
Maximum Transmission Distance10000meter
Wavelength1310nm
Depth (mm)58.4
Height (mm)12.6
Width (mm)13.9
Weight (Grams)22.0
Other Features* DDM: Yes
* Fiber Operating Mode: Full-Duplex
