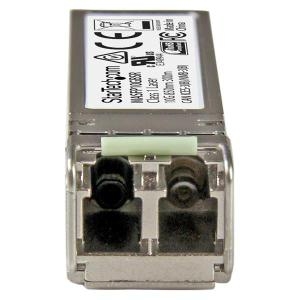

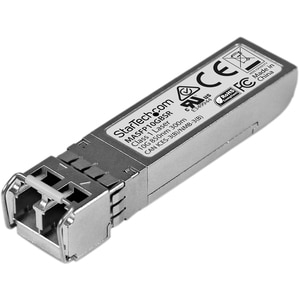

Startech Cisco Meraki Ma-sfp-10gb-sr Compatible Sfp+ Module - 10gbase-sr Fiber Optical Sfp Transceiver
QUICK OVERVIEW
Overview
The MASFP10GBSR is a Cisco Meraki MA-SFP-10GB-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
- Wavelength: 850nm
- Maximum Data Transfer Rate: 10 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 300 m (984 ft)
- MTBF: 1,967,709 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
| PRODUCT NUMBERS | ||
|---|---|---|
| Exertis | STCMASFP10GBSR | |
| Ingram Micro UK | V933889 | |
| UPC Code | 065030869966 | |
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | Lifetime | |
| HARDWARE | ||
| Compatible Brand | Cisco Meraki | |
| Industry Standards | IEEE 802.3ae 10GBASE-SR | |
| WDM | No | |
| PERFORMANCE | ||
| Compatible Networks | 10 Gbps | |
| DDM | Yes | |
| Fiber Operating Mode | Full-Duplex | |
| Max Transfer Distance | 300 m (984 ft) | |
| Maximum Data Transfer Rate | 10 Gbps | |
| MTBF | 1,967,709 hours | |
| Type | Multi Mode | |
| Wavelength | 850nm | |
| CONNECTOR(S) | ||
| Local Unit Connectors | 1 - Fiber Optic LC Duplex Female | |
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | For use in 10 Gigabit fiber networking equipment and media converters | |
| System and Cable Requirements | MSA or Cisco compliant SFP+ port | |
| POWER | ||
| Power Consumption (In Watts) | < 1.2 W | |
| ENVIRONMENTAL | ||
| Humidity | 5~95% RH | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Color | Silver | |
| Enclosure Type | Aluminum | |
| Product Height | 12.6 mm [0.5 in] | |
| Product Length | 54 mm [2.1 in] | |
| Product Weight | 18 g [0.6 oz] | |
| Product Width | 13.9 mm [0.5 in] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 47 g [1.7 oz] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - SFP+ transceiver | |
| Marketing Text | 10 Gigabit fiber SFP+ is engineered to deliver reliable network connections. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality fiber transceiver module can be installed into Cisco Meraki switches and routers that support the Cisco Meraki MA-SFP-10GB-SR SFP+ transceiver module, as well as other major brands of networking equipment. |
| PI Date | Jun 2017 |
| Brand Name | Startech |
| Manufacturer Web Site | http://www.startech.com |
| Form Factor | SFP+ |
| Product Type | Transceiver |
| Cable Type | Multimode Fiber |
| Connector | Duplex LC |
| Data Transfer Rate | 10Gbps |
| Interface | 10GBase-SR |
| Maximum Transmission Distance | 300meter |
| Slot Type | SFP+ |
| Wavelength | 850nm |
| Depth (mm) | 54.0 |
| Height (mm) | 12.6 |
| Width (mm) | 13.9 |
| Weight (Grams) | 20.0 |
| Other Features | * Fiber Type: Multi Mode * MTBF: 1,967,709 hours * Delivers reliable 10 Gigabit Ethernet connections for 10GBase-SR compliant networks * Supports Digital Diagnostics Monitoring (DDM) |
