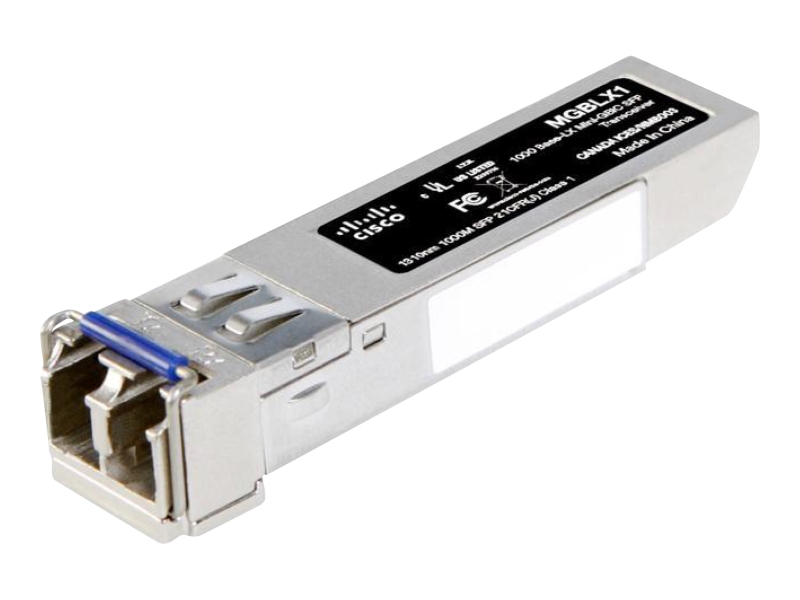

Cisco (mgblx1) Gigabit Ethernet Lx Mini-gbic Sfp Transceiver Mgblx1
Cisco MFE and MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface
Converter (mini-GBIC) transceivers (Table 1) are easy-to-install modules that
provide a simple way to add fiber connectivity or to add an extra Gigabit
Ethernet port to your Cisco Small Business or Cisco Small Business Pro Series
switches. The transceivers are available for single-mode or multimode
fiber-optic cabling and can support distances from 100 meters up to 40
kilometers.
The Cisco MFE and MGE transceivers provide fast and reliable connectivity
between switches that are located on different floors, in separate buildings, or
on a small campus network needing connectivity between sites. These transceivers
can support both Fast and Gigabit Ethernet applications.
Table 1. MFE and MGE SFP Transceiver Modules
Description
MFE Transceivers
MFEBX1
100BASE-BX-20U SFP transceiver for single-mode fiber, 1310 nm wavelength,
support up to 20 km
MFEFX1
100BASE-FX SFP transceiver, for multimode fiber, 1310 nm wavelength, support up
to 2 km
MFELX1
100BASE-LX SFP transceiver, for single-mode fiber, 1310 nm wavelength, support
up to 10 km
MGE Transceivers
MGBBX1
1000BASE-BX-20U SFP transceiver, for single-mode fiber, 1310 nm wavelength,
support up to 20 km
MGBLH1
1000BASE-LH SFP transceiver, for single-mode fiber, 1310 nm wavelength, support
up to 40 km
MGBLX1
1000BASE-LX SFP transceiver, for single-mode fiber, 1310 nm wavelength, support
up to 10 km
MGBSX1
1000BASE-SX SFP transceiver, for multimode fiber, 850 nm wavelength, support up
to 550 m
MGBT1
1000BASE-T SFP transceiver for category 5 copper wire, support up to 100 m
Features
Built-in spring latch for easy module removal
Hot swappable
Low insertion-loss duplex LC receptacle
Low electromagnetic interference (FCC Part 15, Class B) for clear communications
Meets FDA and International Electrotechnical Commission (IEC) eye safety
standards
Cisco Limited Warranty
The Cisco Small Business transceivers come with a 5-year limited hardware
warranty with return to factory replacement. In addition, Cisco offers software
updates for bug fixes at no charge for the life of the warranty and one year of
telephone technical assistance from the Small Business Support Center. For more
information visit, http://www.cisco.com/en/US/docs/general/warranty/5year_SmallBusiness.html.
Specifications
Table 2 contains the specifications, package contents, and minimum requirements
for the Cisco MFE and MGE SFP Transceivers.
Table 2. Specifications for the Cisco MFE and MGE SFP Transceivers
Specifications
Media
MFEBX1: Single-mode fiber (SMF)
MFELX1: Single-mode fiber (SMF)
MFEFX1: Multimode fiber (MMF)
MGBBX1: Single-mode fiber (SMF)
MGBLH1: Single-mode fiber (SMF)
MGBLX1: Single-mode fiber (SMF)
MGBSX1: Multimode fiber (MMF)
MGBT1: Category 5e UTP
Application
MFEBX1: 100BASE-BX-20U
MFELX1: 100BASE-LX
MFEFX1: 100BASE-FX
MGBBX1: 1000BASE-BX-20U
MGBLH1: 1000BASE-LH
MGBLX1: 1000BASE-LX
MGBSX1: 1000BASE-SX
MGBT1: 1000BASE-T
Connector type
MFEBX1: Single LC
MFELX1: Duplex LC
MFEFX1: Duplex LC
MGBBX1: Single LC
MGBLH1: Duplex LC
MGBLX1: Duplex LC
MGBSX1: Duplex LC
MGBT1: RJ-45
Wavelength typical (Tx)
MFEBX1: 1310 nm
MFELX1: 1310 nm
MFEFX1: 1310 nm
MGBBX1: 1310 nm
MGBLH1: 1310 nm
MGBLX1: 1310 nm
MGBSX1: 850 nm
MGBT1: N/A
Wavelength range (Rx)
MFEBX1: 1550 nm
MFELX1: 1310 nm
MFEFX1: 1310 nm
MGBBX1: 1490 nm
MGBLH1: 1310 nm
MGBLX1: 1310 nm
MGBSX1: 850 nm
MGBT1: N/A
Performance
Maximum distance
MFEBX1: up to 20 km
MFELX1: up to 10 km
MFEFX1: up to 2 km
MGBBX1: up to 20 km
MGBLH1: up to 40 km
MGBLX1: up to 10 km
MGBSX1: up to 550 m
MGBT1: up to 100 m
Average output power
MFEBX1: -20 dBm to -14 dBm
MFELX1: -20 dBm to -14 dBm
MFEFX1: -15 dBm to -8dBm
MGBBX1: -8 dBm to -3 dBm
MGBLH1: -4 dBm to 0 dBm
MGBLX1: -9.5 dBm to -3 dBm
MGBSX1: -9.5 dBm to -4 dBm
MGBT1: N/A
Receiver sensitivity
MFEBX1: -32 dBm (max)
MFELX1: -30 dBm (max)
MFEFX1: -34 dBm (max)
MGBBX1: -23 dBm (typ)
MGBLH1: -25 dBm (typ)
MGBLX1: -20 dBm (typ)
MGBSX1: -20 dBm (typ)
MGBT1: N/A
Receiver overload
MFEBX1:-8 dBm (min)
MFELX1:-10 dBm (min)
MFEFX1: -5 dBm (min)
MGBBX1: -3 dBm
MGBLH1: -3 dBm
MGBLX1: -3 dBm
MGBSX1: -0 dBm
MGBT1: N/A
Environmental
Dimensions
W x H x D
MFEBX1: 13 x 9 x 56 mm (0.53 x 0.33 x 2.19 in.)
MFELX1: 13 x 9 x 56 mm (0.53 x 0.33 x 2.19 in.)
MFEFX1: 13 x 9 x 56 mm (0.53 x 0.33 x 2.19 in.)
MGBBX1: 13.4 x 8.5 x 55.7 mm (0.53 x 0.33 x 2.19 in.)
MGBLH1: 13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.)
MGBLX1: 13.4 x 8.5 x 55.7 mm (0.53 x 0.33 x 2.19 in.)
MGBSX1: 13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.)
MGBT1: 13.4 x 8.5 x 66 mm (0.53 x 0.33 x 2.60 in.)
Unit weight
0.018 kg (0.63 oz. )
Power
1W (max)
Operating temperature
32 to 158F (0 to 70C)
Storage temperature
-40 to 185F (-40 to 85C)
Operating humidity
10% to 85% noncondensing
Storage humidity
5% to 90% noncondensing
Standards
Compliance
FCC Part 15 Class B
EN55022 Class B (CISPR 22B)
VCCI Class B
Safety
FDA 21 CFR 1040.10 and 1040.11
EN60950, EN (IEC) 60825-1,2
Package Contents
Cisco SFP transceiver
Quick installation guide
Minimum Requirements
Switch with SFP port. Consult the module's Quick Start Guide for
interoperability guidelines.
Ordering Information
Table 3 provides ordering information for the Cisco MFE and MGE Transceivers
Table 3. Ordering
MFE and MGE Transceivers
Product Number
Description
MFEBX1
100BASE-BX-20U SFP transceiver
MFEFX1
100BASE-FX SFP transceiver
MFELX1
100BASE-LX SFP transceiver
MGBBX1
1000BASE-BX-20U SFP transceiver
MGBLH1
1000BASE-LH SFP transceiver
MGBLX1
1000BASE-LX SFP transceiver
MGBSX1
1000BASE-SX SFP transceiver
MGBT1
1000BASE-T SFP transceiver
