CISCO Unified IP Phone 6901 CP-6901-C-K9=
Product Overview

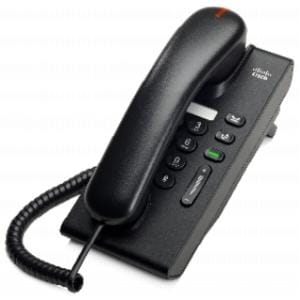

The Cisco Unified IP Phone 6901 is a single-line endpoint delivering cost-effective access to Cisco Unified Communications. Designed with a trimline-like low profile, the Cisco Unified IP Phone 6901 is an ideal solution for lobbies, hallways, elevators, hotel bathrooms, or other settings that have an occasional need for voice communications services.
The Cisco Unified IP Phone 6901 supports two incoming calls with call-waiting service. Fixed feature keys provide one-touch access to Hold, Redial, and Call waiting. Transfer and Conference can be supported by using the hook-switch similar to that of traditional analog phones.
The Cisco Unified IP Phone 6901 offers personalization, with the choice of two colors (charcoal and arctic white) and two handset style options (slimline and standard).
The Cisco Unified IP Phone 6901 is an earth-friendly solution. As with the other Cisco Unified IP Phone 6900 Series endpoints, the Cisco Unified IP Phone 6901 takes advantage of reground and recyclable plastics for a more earth-responsible solution.
Features and Benefits
Table 1 lists features and benefits of the Cisco Unified IP Phone 6901.
Table 1. Features and Benefits of Cisco Unified IP Phone 6901
Feature |
Benefit |
Hardware |
|
Industrial design |
● With
a trimline, low-profile design, the phone can also be
wall-mounted.
● The
phone offers easy-to-use and intuitive arrangement of lines,
keys, and calls.
● Hold
and Redial options on fixed hard keys provide a traditional
telephony-like user experience.
|
Color options |
● Choice
of colors: arctic white or charcoal. Handsets are available
internationally as slimline or standard. You can mix and match
them in the work environment to better meet your employee needs.
|
Desk and wall mountable |
● A
foldable footstand makes viewing of and use of the buttons and
keys easy in the desk-mount case.
● The
phones can be mounted onto the wall without additional Cisco
Unified IP Phone 6900 wall-mount kits by working with
third-party wallphone wallplates, such as Leviton 4108W-xSP
wallplates.
|
Co-branding |
● You
can include your logo on the Cisco Unified IP Phones 6900 Series
endpoints. Cisco has approved third-party vendors to produce the
labels.
● One
small paper label is inserted under the plastic cover at the
co-branding area and shipped together with the phone from the
factory. You could use this small paper label to document any
information needed, because the Cisco Unified IP Phone 6901 does
not support a display.
|
Acoustic Features |
|
Codec support |
● The
following audio-compression codecs are supported: encode G.711a,
G.711u, G.729a, G.729ab and iLBC, decode G.711a, G.711u, G.729,
G.729a, G.729ab and iLBC.
|
Voice quality |
● Comfort-noise
generation and voice-activity-detection (VAD) programming is
supported on a system basis.
|
Volume control |
● A
volume-control toggle makes volume adjustments easy for the
handset, monitor speaker, and ringer.
|
Firmware |
|
Signaling protocol |
● Skinny
Client Control Protocol (SCCP) and Session Initiation Protocol
(SIP)
|
Phone firmware requirement |
● Supported
in Version 9.0(2) and higher
|
Call-control compatibility |
The phones are supported on Cisco Unified Communications Manager and Cisco Unified Communications Manager Business Edition Versions 7.1.3 and later, as well as Cisco Unified Communications Manager Express 8.0 and later. |
Calling features |
● Adjustable
ringing and volume levels
● Auto-barge
● Call
waiting
● Conference
● Hold
● Message-waiting
indicator
● Music
on hold
● Redial
● Shared
line
● Transfer
|
Security features |
● Certificates
● Image
authentication
● Device
authentication
● File
authentication
● Signaling
authentication
● Media
encryption using Secure Real-Time Transfer Protocol (SRTP)
● Signaling
encryption using Transport Layer Security (TLS) Protocol
● Encrypted
configuration files
Cryptography is not enabled by default and may only be enabled through a cryptographically enabled CUCM. |
Network features |
● Cisco
Discovery Protocol and Link Layer Discovery Protocol for Media
Endpoint Devices (LLDP-MED)
● Dynamic
network parameters provisioned through Dynamic Host
Configuration Protocol (DHCP)
● Static
network parameters provisioned through Embedded
interactive-voice-response (IVR) system
|
Serviceability |
● Embedded
web server that provides configuration and statistics
● Quality-of-service
(QoS) reporting: Jitter, delay, dropped packets, and latency on
a per-call basis
● Real-Time
Control Protocol (RTCP) support and monitoring
● Syslog
|
Marketing Text | The Cisco Unified IP Phone 6901 is a single-line endpoint delivering cost-effective access to Cisco Unified Communications. Designed with a trimline-like low profile, the Cisco Unified IP Phone 6901 is an ideal solution for lobbies, hallways, elevators, hotel bathrooms, or other settings that have an occasional need for voice communications services. |
PI Date | Feb 2011 |
Brand Name | Cisco |
Manufacturer Web Site | http://www.cisco.com |
Product Line | Not defined |
Product Type | Unified IP Phone |
Product Model | 6901 |
No. of Phone Lines | 1 |
Button Type | Volume control |
Codec Support | G.711 |
Signaling Protocol Support | SCCP |
Interface Type | 1 x Ethernet |
Switch Type | 10/100 |
No. of Port | 1 |
Headset Type | Corded |
Depth (mm) | 46.0 |
Height (mm) | 205.0 |
Width (mm) | 94.0 |
Weight (Grams) | 621.2 |
Material | Polycarbonate ABS plastic |
Color | Charcoal |
Security | * Certificates * Image authentication * Device authentication * File authentication * Signaling authentication * Media encryption using Secure Real-Time Transfer Protocol (SRTP) * Signaling encryption using Transport Layer Security (TLS) Protocol * Encrypted configuration files |
Network Features | * Cisco Discovery Protocol and Link Layer Discovery Protocol for Media Endpoint Devices (LLDP-MED) * Dynamic network parameters provisioned through Dynamic Host Configuration Protocol (DHCP) * Static network parameters provisioned through Embedded interactive-voice-response (IVR) system |
Voice Features | Comfort-noise generation and voice-activity-detection (VAD) programming is supported on a system basis. |
Operating Temperature | 5 to 45°C |
Other Features | * 8-MB flash memory; 32-MB synchronous dynamic RAM (SDRAM) * A volume-control toggle makes volume adjustments easy for the handset, monitor speaker, and ringer. |
