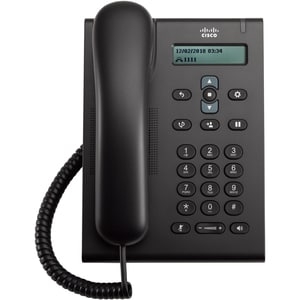

Cisco Unified Sip Phone 3905 Charcoal Standard Handset Cp-3905=
Product Description Cisco Unified SIP Phone 3905 - VoIP phone - with 1 x User
Connect Licensing (UCL)
Product Type VoIP phone
Main Features Integrated Ethernet switch, Power over Ethernet (PoE) support
VoIP Protocols SIP
Voice Codecs G.729, G.729a, G.729ab, G.711u, G.711a
Speakerphone Yes ( digital duplex )
Caller ID Yes
Display LCD display - monochrome
Network Ports Qty 2 x Ethernet 10Base-T/100Base-TX
Body Color Charcoal
Bundled with 1 x User Connect Licensing (UCL)
General
Product Type VoIP phone
Body Color Charcoal
Bundled with 1 x User Connect Licensing (UCL)
Phone Features
Dialer Type Keypad
Dialer Location Base
Conference Call Capability Yes
Speakerphone Yes ( digital duplex )
Caller ID Yes
Call Waiting Yes
Call Forwarding Yes
Call Transfer Yes
Call Hold Yes
Message Waiting Capability Yes
Function Buttons Speakerphone button, transfer button, mute button, hold button,
redial button
Volume Control Yes
Ringer Control Yes
Firmware Upgradable Yes
Additional Features Music on hold, built-in web server
IP Telephony
Main Features Integrated Ethernet switch, Power over Ethernet (PoE) support
VoIP Protocols SIP
Voice Codecs G.729, G.729a, G.729ab, G.711u, G.711a
IP Address Assignment DHCP, static
Network Protocols TFTP, DNS
Network Ports Qty 2 x Ethernet 10Base-T/100Base-TX
Voice Features Comfort noise generation (CNG), voice activity detection (VAD)
Display
Type LCD display - monochrome
Display Location Base
Line Qty 2
Display Resolution 128 x 32 pixels
Memory
RAM 32 MB
Miscellaneous
Hearing Aid Compatible Yes
Placing / Mounting Wall-mountable, table-top
Also Included 4 MB
Compliant Standards CE, VCCI Class B ITE, CISPR 22 Class B, CISPR 24, EN 60950,
EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CSA 22.2 No. 60950,
EN55022 Class B, ICES-003 Class B, AS/ACIF S004, CS-03, FCC CFR47 Part 68, FCC
CFR47 Part 15 B, GB 4943, AS/NZS 60950
Dimensions & Weight (Base)
Width 5.9 in
Depth 8.1 in
Height 2.1 in
Weight 21 oz
| Marketing Text | The Cisco Unified SIP Phone 3905 is a cost-effective, entry-level IP phone that addresses the need for basic voice communications with common Cisco Unified Communications features in an attractive design that is also budget-friendly. |
| PI Date | Oct 2012 |
| Brand Name | Cisco |
| Manufacturer Web Site | http://www.cisco.com |
| Product Type | SIP Phone |
| Product Model | 3905 |
| Display Type | 2 Line |
| Display Resolution | 128 x 32 |
| LCD Type | Monochrome Graphical |
| No. of Phone Line | 1 |
| No. of Phone Lines | 1 |
| Signaling Protocol Support | SIP |
| Interface Type | 2 x RJ-45 |
| Signaling Protocol Support | SIP |
| Interface Type | 1 x 10/100 Ethernet |
| Switch Type | 10/100BASE-T Ethernet |
| No. of Port | 1 |
| PoE Supported | IEEE 802.3af |
| Depth (mm) | 205.0 |
| Height (mm) | 53.5 |
| Width (mm) | 150.0 |
| Weight (Grams) | 594.3 |
| Color | Charcoal |
| Voice Features | Comfort-noise generation (CNG) and voice-activity-detection (VAD) programming is provided on a system basis. |
| Operating Temperature | -5 to 45 °C |
| Other Features | * Cisco Unified SIP Phone 3905, Charcoal, Standard Handset * A foldable single-position foot stand offers optimum display viewing and comfortable use of keys. * A full-duplex speakerphone allows for flexibility in placing and receiving calls * Memory 4-MB flash memory 32-MB synchronous dynamic RAM (SDRAM) |
