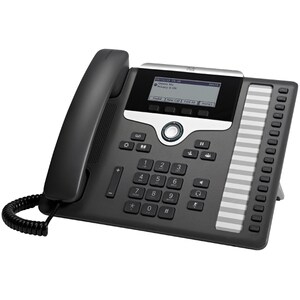

Cisco Up Phone 7861 Cp-7861-k9=
Cisco UP Phone 7861
by Cisco
Category: Communications
Sub Category: Voice Over Ip (Voip)
Product Type: Ip Phones
The Cisco IP Phone 7800 Series is a cost-effective, high-fidelity voice
communications portfolio designed to improve your organization's people-centric
communications, while reducing your operating costs. It combines an attractive
new ergonomic design with "always-on" reliability and secure encrypted
communications. The Cisco IP Phone 7800 Series delivers advanced IP Telephony
features and crystal clear wideband audio performance to deliver an easy-to-use,
full-featured voice communications experience.
Brand Name: Cisco
Connectivity Technology: Cable
Form Factor: Wall Mountable
IP Phone Technology: VoIP
Product Type: IP Phone
Speakerphone: Yes
Total Number of Phone Lines: 16
| Marketing Text | The Cisco IP Phone 7800 Series is a cost-effective, high fidelity voice communications portfolio designed to improve your organization's people centric communications, while reducing your operating costs. It combines an attractive new ergonomic design with "always-on" reliability and secure encrypted communications. The Cisco IP Phone 7800 Series delivers advanced IP Telephony features and crystal clear wideband audio performance to deliver an easy to use, full featured voice communications experience. |
| PI Date | Jul 2014 |
| Brand Name | Cisco |
| Manufacturer Web Site | http://www.cisco.com |
| Product Type | IP Phone |
| Product Model | 7861 |
| Display Size | 3.5inch |
| Display Resolution | 396 x 162 |
| LCD Type | Grayscale |
| No. of Phone Line | 16 |
| Ringtone Type | User-Adjustable |
| Signaling Protocol Support | SIP |
| Wireless Technology Supported | 802.3af |
| Interface Type | 2 x RJ-45 |
| Switch Type | 10/100BASE-T Ethernet |
| No. of Port | 2 |
| Power Supply | 3.84Watt |
| PoE Supported | Yes |
| Depth (mm) | 28.0 |
| Height (mm) | 207.0 |
| Width (mm) | 265.0 |
| Weight (Grams) | 1053.0 |
| Material | Polycarbonate ABS Plastic |
| Security | * Image authentication. * Device authentication. * File authentication. * Signaling authentication. * Media encryption using Secure Real-Time Transfer Protocol (SRTP) using AES-128. * Signaling encryption using Transport Layer Security (TLS) Protocol using AES-128 or AES-256. * Encrypted configuration files. * 802.1X authentication. * Cryptography. |
| Audio Features | * Full duplex speakerphone : Full-duplex speakerphone allows gives you flexibility in placing and receiving calls. * Volume control : A volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer. |
| Operating Temperature | 0 to 40°C |
| Other Features | * IEEE PoE class1 : The phone supports IEEE 802.3af PoE (Class 1), power consumption does not exceed 3.84 watts. * Key call features support : + Dialing (E.164), Adjustable ringing and volume levels, Adjustable display contrast, Auto-answer, Auto-detection of headset, Call forward, Call history, Call timer, Call waiting, Caller ID, cBarge, Corporate directory, Conference, Dial from the list, Direct transfer, Do not disturb, Hold/resume, Immediate divert, Join, Message-waiting indicator, Music on hold, Mute, Network profiles(automatic), On- and off-network distinctive ringing, Personal directory, Privacy, Ring tone per line appearance, Shared line, Silent monitoring and recording, Speed dial, Time and date display, Transfer, Voicemail. |
