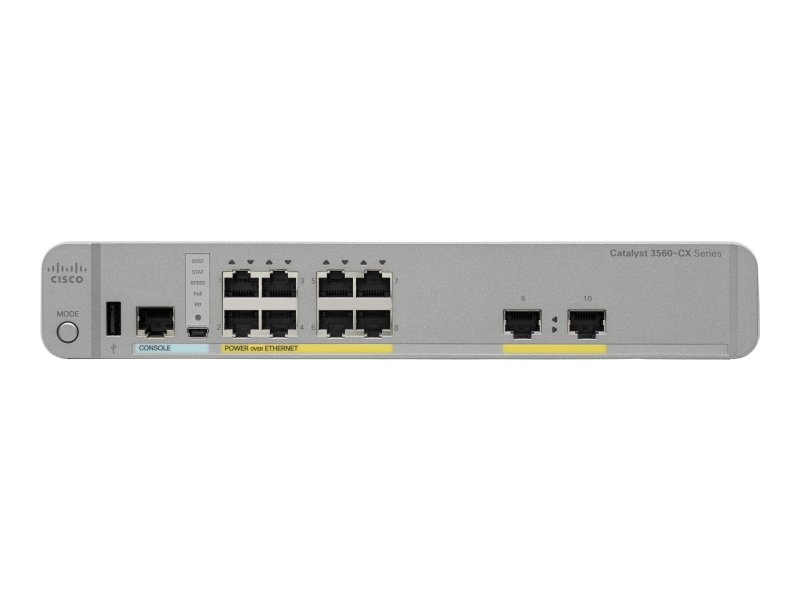

Cisco (ws-c3560cx-8pt-s) Cisco Catalyst 3560-cx Pd Pse 8 Port Poe, 1g Uplinks Ip Base Ws-c3560cx-8pt-s
The Cisco® Catalyst® Compact Switches easily expand your Ethernet and Multigigabit Ethernet Cisco Catalyst switching infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs, and connect PoE devices. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging. With speeds that reach 10Gbps, the Cisco Catalyst 3560CX Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
Product Overview
The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) and Multigigabit Ethernet (mGig) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE+) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Cisco Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.
With their quiet, fanless design and compact footprint, these switches offer flexible mounting options and open up
a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure.
Cisco Catalyst 3560-CX and 2960-CX Series Compact Switch Highlights
● 8 or 12 Gigabit Ethernet ports with line rate forwarding performance
● 6 Gigabit Ethernet plus 2 Multigigabit Ethernet (100 Mbps/1/2.5/5/10 Gbps) ports with line rate forwarding performance (selected model)
● Gigabit and Multigigabit (100 Mbps/1/2.5/5/10 Gbps) copper, small form-factor pluggable (SFP) or
10G SFP+ uplinks
● Power over Ethernet Plus (PoE+) support with up to 240W of PoE budget
● Power over Ethernet (PoE) pass-through enables the compact switch to draw Cisco Universal PoE
(Cisco UPOE™) power from the wiring closet and pass it to end devices (selected model) with the additional option to be powered by auxiliary AC-DC or DC-DC power adapter
● Cisco Instant Access mode to enable single point of management and simplify operation (selected models)
● Advanced Layer 2 (LAN Base) and Layer 3 (IP Base) support with an option to upgrade to IP services
● Fanless design and silent operation
● Enhanced Limited Lifetime Warranty (E-LLW)

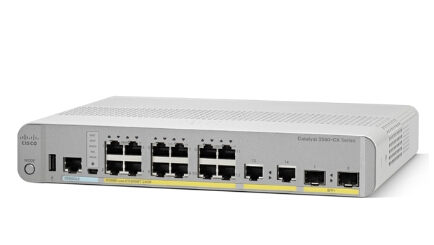

Figure 1 shows the Cisco Catalyst 3560-CX and 2960-CX switch family.
Features and Benefits
Like the larger Cisco Catalyst switches typically used in wiring closets, the Cisco Catalyst Compact switches are
a managed option for consistency across your LAN switching network. Unlike unmanaged switches and hubs, they provide advanced networking features for flexibility, security, and scale.
Table 1 lists many of the Cisco Catalyst 3560-CX and 2960-CX switch features and benefits.
Table 1. Compact Switch Features and Benefits Summary
| Feature | Benefits |
| Hardware | |
| Small form factor; fanless design; silent operation | The switch can be used in open workspaces and other areas that cannot tolerate equipment noise and where multiple cable runs could be difficult, expensive, and intrusive. |
| Flexible mounting options | The switch can be mounted on the wall, under a desk, rack, DIN rail, or practically anywhere they are needed. |
| Cisco Multigigabit Ethernet | With the enormous growth of 802.11ac and new wireless applications, wireless devices are driving the demand for more network bandwidth. This creates a need for a technology that supports speeds higher than 1 Gbps on all cabling infrastructure. Cisco Multigigabit Ethernet technology is a unique Cisco innovation that allows you to achieve bandwidth between speeds of 100Mbps and 10 Gbps over traditional Cat 5e cabling or above. In addition, the Multigigabit ports on the Cisco Catalyst Compact switch support PoE+, which is increasingly important for next-generation workspaces and Internet of Things (IoT) ecosystems. The Multigigabit Ethernet ports can also be used as uplinks to connect to traditional access switches such as the Cisco Catalyst 3850/4500 switches. Cisco Multigigabit technology offers significant benefits for a diverse range of speeds, cable types, and PoE power. The benefits can be grouped into three different areas: ● Multiple speeds: Cisco Multigigabit technology supports autonegotiation of multiple speeds on switch ports. The supported speeds are 100 Mbps, 1 Gbps, 2.5 Gbps, and 5 Gbps on Cat 5e cable and up to 10 Gbps over Cat 6a cabling. ● Cable type: The technology supports a wide range of cable types, including Cat 5e, Cat 6, and Cat 6a or above. ● PoE power: The technology supports PoE and PoE+ for all the supported speeds and cable types. |
| 10-Gigabit SFP+ uplinks | Accommodates business growth and increased traffic, such as aggregate upstream gigabit traffic loads from 802.11ac Wi-Fi access points. |
| Increased PoE+ Scale | Provides up to 240W of PoE+ budget (twice the power per switch than previous series). |
| Perpetual PoE | Provides uninterrupted power to a powered-down device even when the switch is booting. This eliminates the need for a backup power source. |
| PoE pass-through | PoE pass-through gives the ability to power PoE end devices through drawing Cisco UPOE from the wiring closet. The Cisco Catalyst WS-C3560CX-8PT-S has eight downlink ports with two Cisco UPOE input ports that allow it to be powered by another switch. These switches do not need a power supply and receive power over the uplink from an upstream PoE or Cisco UPOE device, providing deployment flexibility and availability. These switches are ideal for wiring-constrained and space-constrained applications. |
| Management and Operations | |
| Available on Cisco Catalyst 3560-CX switches with 10 G SFP+ uplinks, this optional mode enables a single point of management and operation for campus networks. Multiple Cisco Catalyst 3560-CX compact switches with 10 G SFP+ uplinks can be connected to Cisco Catalyst 6500 or 6800 core switches, and the entire configuration can then work as a single extended switch with a common management domain. In this mode, compact switches inherit all the features of the Cisco Catalyst 6500 or 6800. Advanced Cisco Catalyst 6500 and 6800 features like MPLS and EVN can be extended to the access layer, so the Cisco Catalyst Instant Access solution can be deployed on all or a subset of the campus network. | |
| Cisco Network Plug ‘n Play (PnP) | Network Plug-n-Play (PnP) is a secure, scalable solution that accelerates network device deployments by automating the installation and configuration of Cisco IOS software. The Cisco Catalyst 3560-CX and 2960-CX switches are ‘Network-PnP Ready’ and can be used as part of the APIC-EM solution for automated switch deployments. This feature helps improve productivity, cut costs, reduce downtime, and enhance the user experience. |
| This comprehensive set of Cisco Catalyst technologies and Cisco IOS Software features simplify LAN deployment, configuration, and troubleshooting. ● Cisco Smart Install enables the configuration of the Cisco IOS Software image and switch without user intervention. ● Cisco Auto Smartports provides automatic configuration as end devices connect to the switch port, allowing autodetection and plug-and-play of the device onto the network. Interface templates containing configurations or policies that can be applied to ports are also supported. ● Cisco Smart Troubleshooting is an extensive array of debug diagnostic commands and system health checks, includingGeneric Online Diagnostics (GOLD) andOnboard Failure Logging (OBFL). ● Embedded Event Manager (EEM), supported on the Cisco Catalyst 3560-CX, provides real-time network event detection and onboard automation. You can adapt the behavior of your network devices to align with business needs. | |
| Cloud and System Management | ● Cisco Prime™ Infrastructure provides comprehensive network lifecycle management with an extensive library of features that automate initial and day-to-day management. Cisco Prime integrates hardware and software platform expertise and operational experience into a powerful set of workflow-driven configuration, monitoring, troubleshooting, reporting, and administrative tools. ● Cisco Network Assistant is a PC-based, centralized network management and configuration application for small and medium-sized business (SMB) with up to 250 users. An intuitive GUI lets you easily apply common services across Cisco switches, routers, and access points. ● Cisco Active Advisor is a cloud-based service that provides essential lifecycle information about your network inventory. Available by itself or as a component of other Cisco network management applications, it helps you reduce your network’s overall risk by keeping you up-to-date on the status of your products. |
| Operational Simplicity | ● Link Aggregation Control Protocol (LACP) for creating Ethernet channeling with devices that conform to IEEE 802.3ad. Similar to Cisco EtherChannel technology and PAgP. ● Dynamic Host Configuration Protocol (DHCP) autoconfiguration of multiple switches through a boot server. ● Multicast VLAN Registration (MVR) continuously sends multicast streams in a multicast VLAN. Isolates streams from subscriber VLANs for bandwidth and security reasons. ● Voice VLAN keeps voice traffic on a separate VLAN for easier administration and troubleshooting. ● Cisco VLAN Trunking Protocol (VTP) supports dynamic VLANs and dynamic trunk configuration across all switches. ● Remote Switch Port Analyzer (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network. ● For enhanced traffic management, monitoring, and analysis, the Embedded Remote Monitoring (RMON)software agent supports four RMON groups (history, statistics, alarms, and events). |
| Security | |
| CiscoTrustSec® | A suite of components that secures networks, data, and resources with policy-based access control, identity, and role-aware networking with the following elements: ● Cisco TrustSec SXPsupport to simplify security and policy enforcement throughout the network. For more information about Cisco TrustSec security solutions, visit cisco.com/go/TrustSec. ● Hardware on the Cisco Catalyst 3560-CX for IEEE 802.1AE MACsec for Layer 2, line-rate Ethernet data confidentiality and integrity on host-facing ports. Protects against man-in-the-middle attacks (snooping, tampering, and replay). ● Flexible authentication that supports multiple authentication mechanisms including 802.1X, MAC Authentication Bypass, and web authentication using a single, consistent configuration. ● Monitor mode that creates a user-friendly environment for 802.1X operations. ● RADIUS change of authorization and downloadable ACLs for comprehensive policy management. ● 802.1X supplicant with Network Edge Access Transport (NEAT) for extended secure access; compact switches in the conference rooms have the same level of security as switches inside a locked wiring closet. |
| Threat Defense | Advanced, integrated security features that provide threat defense capabilities for mitigating man-in-the-middle attacks and protecting your critical network infrastructure. ● Superior Layer 2 capabilities for mitigating MAC, IP, and ARP spoofing risks. Also protects port security, guards against DHCP snooping, and supports Dynamic ARP Inspection and IP Source Guard. ● Ipv6 first-hop security with Binding Integrity Guard, RA Guard, and DHCP Guard. ● Private VLAN provides security and isolation between switch ports. ● Multidomain Authentication allows an IP phone and a PC to authenticate on the same switch port while placing them on appropriate voice and data VLAN. ● Secure Shell (SSH), Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) that encrypt administrator traffic during Telnet and SNMP sessions to keep access credentials secure. ● Port-based access control list (ACL) to let the switch automatically allow or block packets based on policies for source and destination IP addresses. Rules can be set up differently on a port-by-port basis. ● Secure Boot to make sure that only signed and authorized images can load on the switch. ● Cisco AutoSecure to simplify security configurations with a single-line CLI. |
| Power Management and Energy Efficiency | |
| Switch Hibernate Mode | Innovative technology that puts the switch in an ultra-low power mode during periods of nonoperation such as nights and weekends. The switch can be configured to be in the hibernate mode using the Cisco Energy Management Suite. |
| IEEE 802.3az or Energy-Efficient Ethernet (EEE) | Ports dynamically sense idle periods between traffic bursts and quickly switch the interfaces into a low-power idle mode, reducing power consumption. |
| Perpetual PoE | Provides uninterrupted power to a powered-down device even when the switch is booting. This eliminates the need for a backup power source. |
| PoE pass-through | PoE pass-through gives the ability to power PoE end devices through drawing Cisco UPOE from the wiring closet. The Cisco Catalyst 3560CX-8PT-S has eight downlink ports with two Cisco UPOE input ports that allow it to be powered by another switch. These switches do not need a power supply and receive power over the uplink from an upstream PoE or Cisco UPOE device, providing deployment flexibility and availability. |
| Cisco Energy Management Suite (formerly EnergyWise) | Measures power consumption of network infrastructure and network-attached devices and enforces rules to reduce energy usage. |
| Power Supply | 80-Plus Silver Certified |
| Traffic Management and QoS | |
| Application Visibility | NetFlow Lite lets you maintain awareness of all application traffic on the network. It helps capture and record specific packet flows. Exports flow data in the NetFlow Version 9 format for analysis on a wide range of Cisco and third-party collectors. |
| Advanced Quality of Service | Intelligent traffic management with flexible mechanisms for marking, classifying, and scheduling traffic at wire speed. Includes: ● Up toeight egress queues per port and strict priority queuing so that the highest priority packets are serviced ahead of all other traffic. ● Shaped Round Robin (SRR) scheduling andWeighted Tail Drop (WTD) congestion avoidance. ● Flow-based rate limiting and up to 256 aggregate or individual policers per port. |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3560CX-8PT-S |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 3560-CX |
| Product Model | 3560CX-8PT-S |
| Product Name | Catalyst 3560CX-8PT-S Switch |
| Product Type | Layer 3 Switch |
| Product UPC | 882658770623 |
| Interfaces/Ports: | |
| Total Number of Network Ports | 10 |
| Uplink Port | Yes |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network 2 x Gigabit Ethernet Uplink |
| Media & Performance: | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX |
| Management & Protocols: | |
| Manageable | Yes |
| Power Description: | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Physical Characteristics: | |
| Form Factor | Rail-mountable Rack-mountable |
| Height | 1.8" |
| Width | 10.6" |
| Depth | 7" |
| Weight (Approximate) | 3.50 lb |
