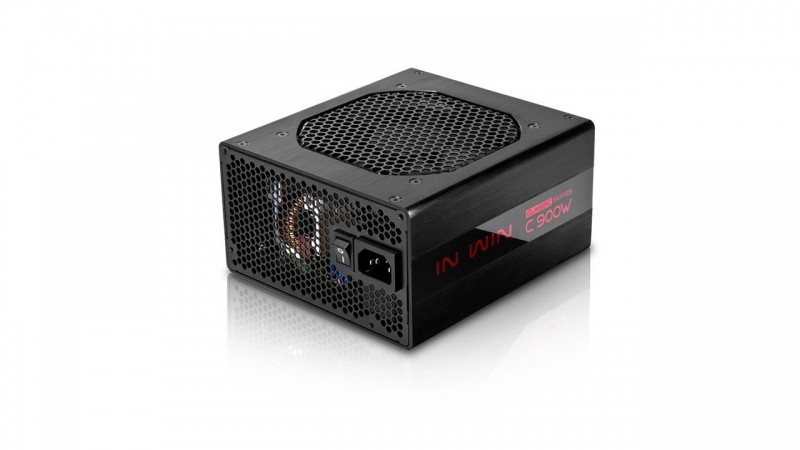

Sleek and Sophisticated Design
Classic Series power supplies feature a stunning aluminium enclosure with a refined brushed hairline finish, which adds a simple, yet classy touch to the exterior while enhancing quality of the product.
No Longer Available
Model | C 750W | C 900W |
---|---|---|
Total Power | 750W | 900W |
Material | Aluminium, SECC | |
Type | ATX12V V2.4/ EPS12V V2.92 | |
Cable Management | Fully Modular | |
PFC | Active PFC ( > 0.9) | |
80 PLUS | Platinum (up to 92%) | |
MTBF (Hours) | > 100,000hr | |
AC Input | 100 - 240Vac. 50 - 60Hz | |
Hold-up time (ms) | >16ms | |
Fan | 120mm Hypro Bearing Fan | |
Typical Fan Noise (dB) | < 25dB | |
Operating Temperature Range (°C) | 0~50 °C | |
Full Protection | OCP/ OVP / UVP / SCP / OTP / OPP | |
Safety Certifications | cTUVus / TUV / CB / BSMI / CE / FCC / EAC / RCM / CCC | |
Dimensions (L x W x D) | 165 x 150 x 86mm | |
Package Dimensions (L x W x D) | 225 x 350 x 135mm | |
Net Weight | 3.0kg | |
Gross Weight | 3.5kg | |
Warranty | 7 Years | |
Connector | 24 Pin Motherboard | 1 |
8 (4+4) Pin CPU | 2 | |
8 (6+2) Pin PCI-E | 4 | |
4 Pin Peripheral | 6 | |
SATA | 6 | |
Floppy | 2 | |
* In Win products comply with RoHS regulations * Specifications may vary based on different regions |
C 750W C 900W | |
---|---|
+12V1 | M/B , SATA , PERIPHERAL , FDD |
+12V2 | CPU |
+12V3 | PCI-E 1 |
+12V4 | PCI-E 2 |
