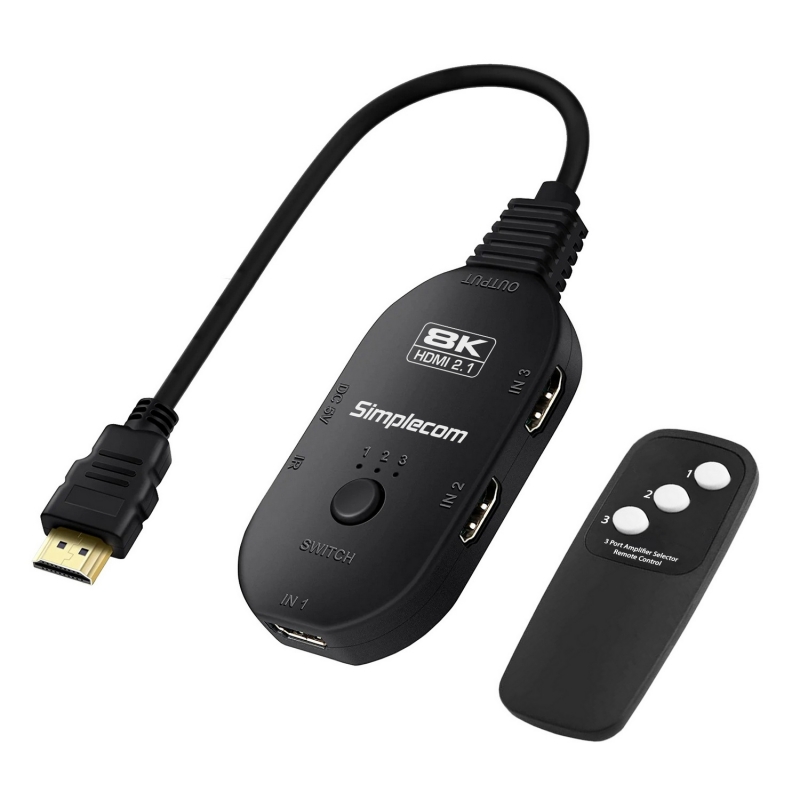

Simplecom CM353 3-Port HDMI 2.1 Switch 3 IN 1 OUT Splitter HDCP 2.3 8K@60Hz

CM353 is a 3-way HDMI 2.1 switch that can expand the HDMI input of your TV or monitor. It allows 3 HDMI source devices to share one HDMI port on display, and supports video resolution up to 8K@60Hz. Easy plug & play operation, simply connect the HDMI input sources to the HDMI inputs on switch and the HDMI output port to HDTV.

Wide compatibility with HDMI 2.1 and HDCP 2.3 support
Compatible with all HDMI devices such as Blu-ray Player, PS5, PS4 Pro, PS3, Xbox Series X/S, Apple TV, Fire TV, Chromecast, Foxtel etc.

Infrared Receiver and Remote Control
The included infrared receiver and remote control allows the switch to be controlled from a distance. Easily switch between HD devices without having to get up from your seat.

Powered from Connected HDMI Devices
No external power is required to make this switch work, as long as the connected HDMI devices supply sufficient power to the switch.

Intergraded HDMI Output Cable
The HDMI switch comes intergraded HDMI output cable for more stable connection to your TV. No lag, no loss of picture quality and sound quality, and can bring the ultimate high-definition experience.

Features

HDMI 2.1 compliant, backward compatible with previous HDMI versions
Supports 3 HDMI source devices to share one HDMI port on display
Easy to use by pressing the toggle button or remote control
Intergraded HDMI output cable for easy connection to TV or monitor
HDCP 2.3 compliant, backward compatible with previous HDCP versions
Supports video resolutions up to 8K@60Hz or 4K@120Hz
Supports video bandwidth up to 48Gbps
LED light indicating the active HDMI input port
Plug and Play, no external power required for standard HDMI devices

Specifications

Model: CM353
HDMI version: HDMI 2.1, backward compatible
HDCP version: HDCP 2.3, backward compatible
HDMI Input: 3x HDMI Female
HDMI Output: 1x HDMI Male
HDMI Max Bandwidth: 48Gbps
Resolution Support: 8K, 4K, 1440p, 1080p, 1080i, 720p, 720i, 576p, 576i, 480p
Max Refresh Rate: 8K@60Hz, 4K@120Hz, 1080p@240Hz
Support Video Colour: 12bit/14bit/16bit/36bit deep colour, RGB 8:8:8
HDR support: Yes
Support Audio Format: DTS-HD, Dolby-TrueHD, PCM, LPCM
Power Input: USB-C DC 5V (No external power required for standard HDMI devices)
Operating Temperature: 0°C to 50°C
Dimension (L x W x H): 121 x 50 x 1.5cm
Cable Length: 40cm approx.
Weight: 80g

Package Contents

1x 3 Way HDMI Switch
1x Remote Control
1x IR Receiver
1x USB Power cable

Important Note

For 8K@60Hz or 4K@120Hz support, 48Gbps HDMI 2.1 cable is required, cable length is limited to 3M
This device is 3 IN 1 OUT one way only, and can not be used in reverse way
