Startech Conference Table Connectivity Box For A/ V - Hdmi / Vga / Displayport Inputs - Hdmi

SKU
273888
Brand
MPN
BOX4HDECP2
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$532.00
Buy Now And Earn 532 Reward Points!

QUICK OVERVIEW

Output - 4K Box4Hdecp2

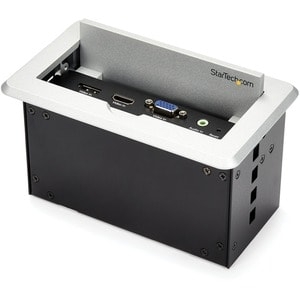

This conference table connectivity box for A/V installs in your table or lectern to provide A/V, networking, and USB charging connectivity in your boardroom, auditorium, or classroom. The box makes it easy to connect HDMI, DisplayPort and VGA laptops to your room’s large HDMI display, and provides LAN and USB power connectivity for charging USB devices. The box also provides some boardroom cable management by hiding connectivity cables in your table.

Collaborate Easily Using the Big Screen

The table box enables presenters in your conference room to easily share their laptop screen on the room’s large display or projector, with supported resolutions up to 4K 30Hz.

To share video from virtually any laptop, the table box supports HDMI, VGA and DisplayPort inputs and automatically outputs the most recently connected input to the HDMI display.

Provide Convenient USB Charging and Wired Network Connectivity

Enabling visitors in your conference room to charge their iPhone, iPad, smartphone, or tablet, the table box features three USB charge ports. Plus, the box features an Ethernet pass-through port to provide secure wired network connectivity in rooms where Wi-Fi® isn’t available.

Add Style and Technological Sophistication to Any Room

The boardroom interconnect box has an aluminum finish that complements your space. The hideaway panel eliminates clutter by discreetly covering the connection ports when they’re not in use.

TAA compliant BOX4HDECP2 is backed by a 2-year warranty and free lifetime technical support.

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Active or Passive Adapter Active
    Passive
  Audio Yes
  AV Input VGA
    3.5 mm Audio
    HDMI
    DisplayPort
  AV Output HDMI
  USB Pass-Through No
PERFORMANCE
  Aspect Ratio 16:9
  Maximum Analog Resolutions 1920 x 1200 60Hz
  Maximum Cable Length 50 ft [15.2 m]
  Maximum Digital Resolutions 3840x2160 (4K) 30Hz
  Supported Resolutions 3840x2160 (4K) 30Hz (HDMI and DP Inputs Only)
2560x1600 60Hz (HDMI and DP Inputs Only)
1920x1200 60Hz (Maximum VGA Input)
1920x1080 (1080p) 60Hz
1280x720 (720p) 60Hz

**Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
  Video Revision HDMI 1.4
    DisplayPort 1.2
  Wide Screen Supported Yes
CONNECTOR(S)
  Connector A 1 - HDMI (19 pin) Female Input
    1 - VGA (15 pin, High Density D-Sub) Female Input
    1 - 3.5 mm Mini-Jack (3 Position) Female Input
    1 - RJ-45 Female
    3 - USB Type-A (4 pin) USB 2.0 Female
    1 - DisplayPort (20 pin) Female Input
  Connector B 1 - HDMI (19 pin) Female Output
    1 - RJ-45 Female
SPECIAL NOTES / REQUIREMENTS
  Note VGA (Input) to HDMI (Output) - HDMI Output Port is Active
DisplayPort (Input) to HDMI (Output) - HDMI Output Port is Active
HDMI (Input) to HDMI (Output) - HDMI Output Port is Passive
POWER
  Input Voltage 100 ~ 240 AC
  Output Current 2A
  Output Voltage 12 DC
  Plug Type N
  Power Consumption (In Watts) 24
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 10% to 85% (non-condensing)
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Silver
  Product Height 7.3 in [185 mm]
  Product Length 6.7 in [170 mm]
  Product Weight 3.8 lb [1.7 kg]
  Product Width 6.1 in [155 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 0.4 lb [0.2 kg]
WHAT'S IN THE BOX
  Included in Package 1 - conference table box
    1 - universal power adapter (NA/JP, EU, UK, ANZ)
    1 - die cut outline
    2 - mounting brackets
    1 - cable tie bracket
    2 - cable tie bracket screws
    1 - quick-start guide
