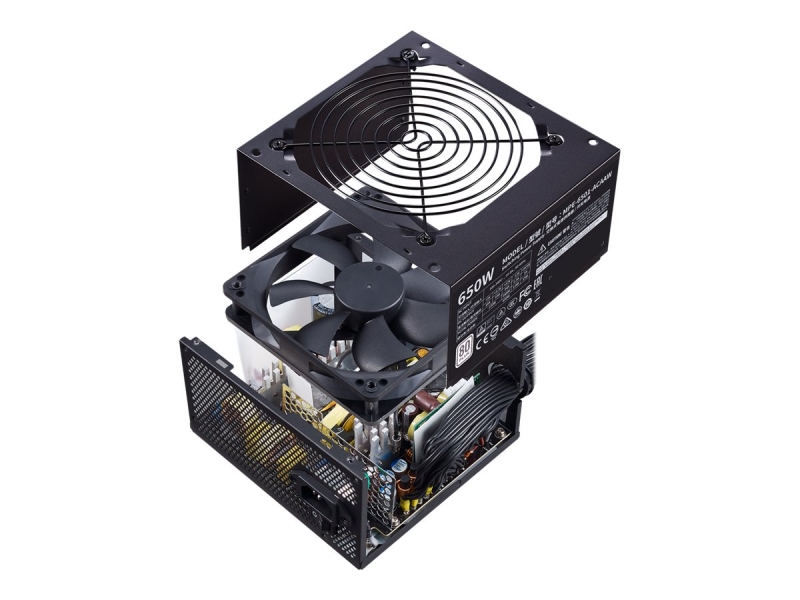

Cooler Master Mwe White 230V 650W 80Plus Single +12V Rail 120Mm Hdb Fan Mpe-6501-Acabw-Au

SKU
279813
Brand
Coolermaster
Manufacturer Link
MPN
MPE-6501-ACABW-AU
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$94.00
Buy Now And Earn 94 Reward Points!
Add to Compare
MODEL
MPE-6501-ACABW
ATX VERSION
ATX 12V Ver. 2.52
PFC
Active PFC
INPUT VOLTAGE
200-240Vac
INPUT CURRENT
5A
INPUT FREQUENCY
50-60Hz
DIMENSIONS (L X W X H)
140 x 150 x 86 mm
FAN SIZE
120mm
FAN BEARING
HDB
FAN SPEED
2400 RPM
NOISE LEVEL @ 20%
16.54 dBA
NOISE LEVEL @ 50%
26.5 dBA
NOISE LEVEL @ 100%
42.5 dBA
EFFICIENCY
85% Typically
80 PLUS RATING
80 PLUS Standard 230V EU
ERP 2014 LOT 3
Yes
OPERATING TEMPERATURE
40°C
POWER GOOD SIGNAL
100-500ms
HOLD UP TIME
>14ms at 100% full load@230Vac
MTBF
>100,000 Hours
PROTECTIONS
OVP, OPP, SCP, UVP, OTP
REGULATORY
CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB
ATX 24-PIN CONNECTORS
1
EPS 4+4 PIN CONNECTORS
1
EPS 8 PIN CONNECTOR
1
SATA CONNECTORS
6
PERIPHERAL 4-PIN CONNECTORS
3
PCI-E 6+2 PIN CONNECTORS
4
SERIE
MWE Series
80 PLUS
Standard
MODULAR
Non Modular
WATTAGE
500 to 750W
