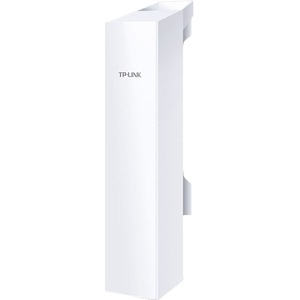

TP-Link Outdoor 2.4GHz 300Mbps Wireless Cpe, Qualcomm, Up To 30dBm, 2T2R, 2.4GHz 802.11b/g/n, 12dBi Directional Antenna, 2 10/100Mbps Lan, Weather Proof, Passi CPE220
SKU
418410
Brand
MPN
CPE220
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$109.00
Buy Now And Earn 109 Reward Points!
TP-Link Outdoor 2.4GHz 300Mbps Wireless CPE, Qualcomm, up to 30dBm, 2T2R, 2.4GHz 802.11b/g/n, 12dBi directional antenna, 2 10/100Mbps LAN, Weather proof, Passive PoE, support TDMA and centralized management, WISP Client Router/AP/AP Client/Repeater/Bridge mode
| PoE | Passive Power over Ethernet via LAN0 (+4,5 pins; -7,8 pins), supports up to 60 m PoE deployment |
|---|---|
| Brand | TP-LINK |
| Model | CPE220 |
| Notes | RF performance (TX power and RX sensitivity per data rate) and additional regulatory/region-specific limits may vary by region. Refer to official datasheet for full RF tables and deployment guidance. |
| Memory | 64 MB DDR2 RAM, 8 MB flash |
| Antenna | Built-in 2x2 dual-polarized directional MIMO antenna with metal reflector |
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP |
| Frequency | 2.4 - 2.483 GHz |
| Processor | Qualcomm Atheros 560 MHz |
| Dimensions | 276 x 79 x 60 mm (11 x 3.1 x 2.1 inches) |
| Interfaces | 1 x 10/100 Mbps shielded Ethernet port (LAN0, Passive PoE in) 1 x 10/100 Mbps shielded Ethernet port (LAN1, data / PoE passthrough depending on configuration) 1 x Grounding terminal 1 x Reset button |
| Protection | 15 kV ESD protection; 6 kV (6000 V) lightning protection (reported) |
| Description | The TP-LINK CPE220 is a high-power 2.4GHz outdoor CPE designed for long-distance point-to-point and point-to-multipoint wireless networking. It features a built-in 12dBi 2x2 dual-polarized directional MIMO antenna with dedicated metal reflector, Qualcomm Atheros enterprise-grade chipset, and Pharos MAXtream TDMA to improve throughput and capacity in PTMP deployments. The CPE220 supports up to 300 Mbps (40 MHz), selectable channel widths (5/10/20/40 MHz), adjustable transmit power (0–30 dBm), and multiple operation modes (AP / Client / Bridge / Repeater / AP Router / AP Client Router). Weatherproof enclosure, shielded Ethernet ports, grounding terminal, passive PoE support (up to 60 m) and included PoE adapter simplify outdoor deployment and remote reset. |
| Antenna Gain | 12 dBi |
| Product Title | TP-LINK CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE (2x2 Dual-Polarized MIMO, IPX5) |
| Typical Range | Field-tested for 13 km+ (some sources report 20 km+ in field tests) |
| Certifications | CE FCC RoHS IPX5 |
| Channel Widths | 5 / 10 / 20 / 40 MHz |
| Transmit Power | Up to 30 dBm (1000 mW), adjustable in 1 dBm steps |
| Package Contents | Outdoor Wireless CPE (CPE220) 24V Passive PoE adapter (value reported as 0.5 A or 1.0 A depending on source) Pole mounting straps AC power cord Installation guide |
| Storage Humidity | 5% to 95% non-condensing |
| Antenna Beamwidth | 60° (H-Plane) / 30° (E-Plane) |
| Power Consumption | 10.8 W max |
| Ingress Protection | IPX5 (weatherproof) |
| Max Wireless Speed | Up to 300 Mbps (40 MHz, dynamic) |
| Operating Humidity | 10% to 90% non-condensing |
| Wireless Standards | IEEE 802.11b/g/n |
| Storage Temperature | -40°C to +70°C |
| Enclosure / Material | Outdoor ASA-stabilized plastic |
| Operating Temperature | -30°C to +70°C (some sources report -40°C lower limit for storage) |
| PoE Adapter (included) | Passive PoE adapter (24 VDC output). Reported output current varies by source (commonly listed as 0.5 A; some sources list 1.0 A). Includes remote reset button and power/status LEDs. |
| Proprietary Technology | TP-LINK Pharos MAXtream TDMA (TDMA mode) |
| Wireless Modes / Features | AP Client Bridge Repeater AP Router AP Client Router (WISP) WDS Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) Multi-SSID with VLAN tagging (AP mode) Distance / ACK timeout setting Wireless MAC address filter Beacon Interval / RTS Threshold / Fragmentation Threshold / DTIM Interval AP Isolation Short GI Wi‑Fi Multimedia (WMM) |
| System Level Optimizations | Optimized IGMP snooping/proxy for multicast applications; hardware watchdog |
| Management / Software Tools | Pharos Control centralized management Web-based management (HTTP/HTTPS) SNMP agent (v2c) SSH server Dynamic DNS System log Ping Watch Dog Spectrum analyzer Speed test Ping / Traceroute Signal quality indicators (signal strength / noise / transmit CCQ / CPU / memory) Monitors: throughput / stations / interfaces / ARP / routes / WAN / DHCP |
