TP-Link Outdoor 5GHz 300Mbps Wireless Cpe, Qualcomm, 29dBm, 2T2R, 802.11a/n, 23dBi Directional Antenna, 30+ Km, IP65 Weather Proof, 1 Fe Ports, Passive PoE, 3- CPE610
SKU
405432
Brand
MPN
CPE610
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$147.00
Buy Now And Earn 147 Reward Points!
TP-Link Outdoor 5GHz 300Mbps Wireless CPE, Qualcomm, 29dBm, 2T2R, 802.11a/n, 23dBi directional antenna, 30+ km, IP65 Weather proof, 1 FE Ports, Passive PoE, support TDMA and centralized management, AP Router/WISP Client Router/AP/AP Client/Repeater/Bridge mode
| SKU | CPE610 |
|---|---|
| MIMO | 2×2 |
| Brand | TP-Link |
| Color | White |
| Model | CPE610 |
| Notes | Maximum wireless transmission rates are physical/IEEE derived; actual performance varies by environment and client capabilities. |
| Memory | RAM: 64 MB DDR2 Flash: 8 MB |
| Weight | 2.03 kg |
| Data Rate | Up to 300 Mbps (40 MHz) |
| Processor | Qualcomm 560 MHz CPU, MIPS 74Kc |
| Dimensions | Metric (W x D x H): 366 × 280 × 207 mm Imperial (W x D x H): 14.4 × 11.0 × 8.1 in |
| Interfaces | 1 × 10/100 Mbps shielded Ethernet port (LAN/PoE) 1 × Reset button |

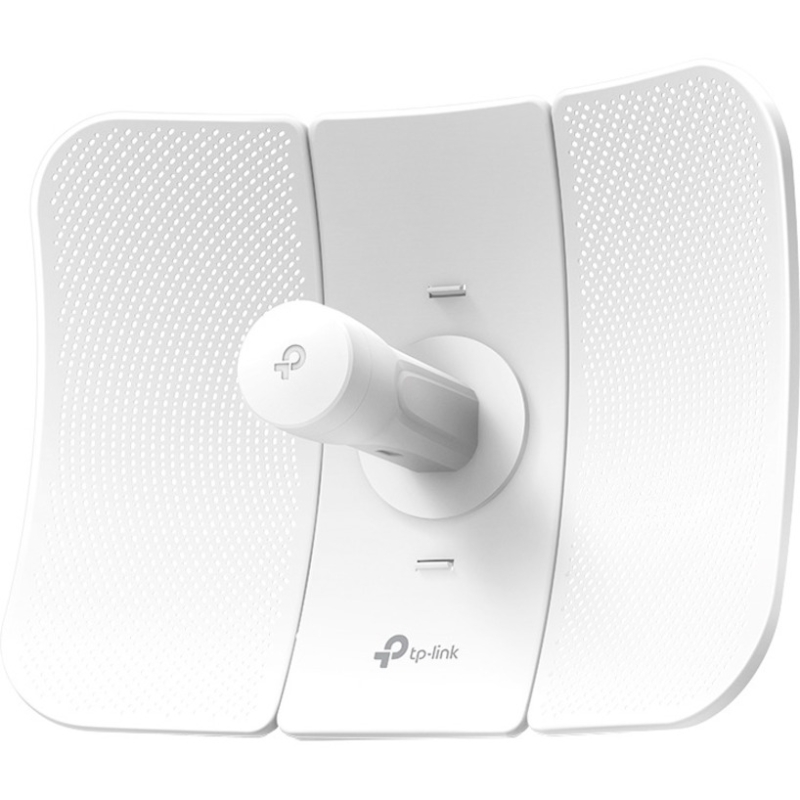

| Description | The TP-Link CPE610 is a professional outdoor CPE delivering up to 300 Mbps on the 5 GHz band with a built-in 23 dBi dual-polarized 2×2 MIMO Cassegrain directional antenna. It offers excellent beam directivity and noise immunity for long-distance links, an IP65 weatherproof enclosure, 15 kV ESD and 6 kV lightning protection, and a sturdy snap-lock design for fast assembly and stable pole mounting. Pharos MAXtream TDMA technology improves throughput and latency for PtMP deployments, while Pharos Control provides centralized device management. Passive PoE support and included PoE adapter allow flexible installations. |
| Antenna Gain | 23 dBi |
| Antenna Type | Built-in 2×2 dual-polarized directional Cassegrain MIMO antenna with dedicated metal reflector |
| Product Type | Outdoor CPE |
| Product Title | TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE |
| Certifications | CE FCC IC UL RoHS GS PSB C-tick SAA S-Mark KC-mark |
| ESD Protection | 15 kV |
| Frequency Band | 5 GHz |
| Frequency Range | 5.15–5.85 GHz |
| Package Contents | Outdoor Wireless CPE (CPE610) 24V 0.5A Passive PoE Adapter Pole mounting straps AC power cord Installation guide |
| Antenna Beamwidth | Azimuth: 9° Elevation: 7° |
| Security Features | SPI Firewall DoS protection IP & MAC binding Access control Port forwarding/Virtual Server/Port Trigger |
| Wireless Features | Pharos MAXtream TDMA Selectable channel width Dynamic Frequency Selection (DFS) WDS Enable/Disable Distance/ACK Timeout Setting Wireless MAC Address Filter Multi-SSID with VLAN tagging (AP mode) WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), WEP |
| Channel Bandwidths | 5 MHz 10 MHz 20 MHz 40 MHz |
| Enclosure Material | Outdoor PC stabilized plastic |
| Wireless Standards | IEEE 802.11a IEEE 802.11n |
| Power over Ethernet | Type: Passive PoE PoE Pins: +4,5 pins; -7,8 pins PoE Distance: Supports up to 60 m (200 ft) |
| Weatherproof Rating | IP65 |
| Included PoE Adapter | 24V 0.5A Passive PoE Adapter (included) |
| Lightning Protection | 6 kV |
| Transmit Power (Max) | 25 dBm (adjustable by 1 dBm) |
| Power / Voltage Range | 16–27 V DC |
| Software / Management | Pharos Control centralized management HTTP/HTTPS web-based management SNMP Agent (v2c) SSH server Discovery and remote management via Pharos Control System log, Ping Watch Dog, Dynamic DDNS |
| System Requirements / Compatibility Notes | Management and configuration via modern browsers (Chrome, Firefox, Safari recommended). Compatible with common OS platforms for management utilities (Windows, macOS, Linux). |
