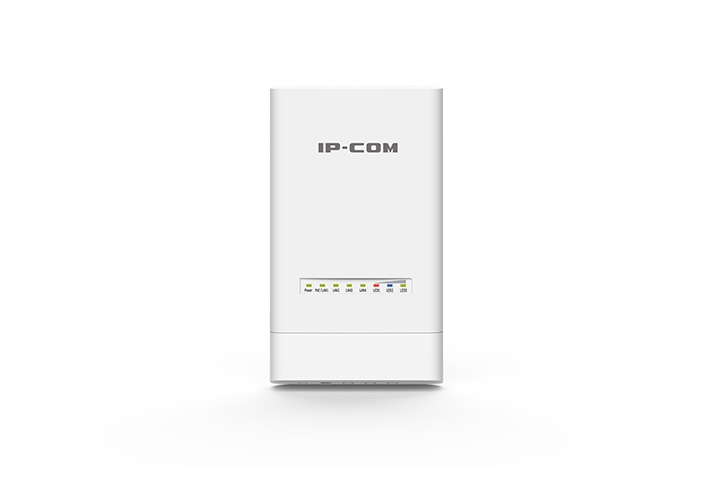

Ip-Com (CPE6S) 5GHz 5km 867Mbps Point To Point Outdoor Cpe, 6kv Lightning Protection CPE6S
SKU
396524
Brand
MPN
CPE6S
Warranty
Standard Manufacturer's Warranty
$98.00
Buy Now And Earn 98 Reward Points!
IP-COM (CPE6S) 5GHz 5km 867Mbps Point to Point Outdoor CPE
•5GHz 11AC 867Mbps
•4*10/100Mbps Ethernet Port
•Maximum Transmission Range 5km
•Antenna Beamwidth: Horizontal: 30° Vertical: 30°
•12dbi directional antenna
•IP65 waterproof enclosure
•6kv lightning protection
•12V/1A Passive PoE (injector included) or DC Power Supply
•Automatic Pairing
•Smart Signal Indicator LED
•IP-COM TDMA Protocol to improve P2MP performance
•5GHz 11AC 867Mbps
•4*10/100Mbps Ethernet Port
•Maximum Transmission Range 5km
•Antenna Beamwidth: Horizontal: 30° Vertical: 30°
•12dbi directional antenna
•IP65 waterproof enclosure
•6kv lightning protection
•12V/1A Passive PoE (injector included) or DC Power Supply
•Automatic Pairing
•Smart Signal Indicator LED
•IP-COM TDMA Protocol to improve P2MP performance
| SKU | CPE6S |
|---|---|
| Brand | IP-COM |
| Model | CPE6S |
| Notes | Specifications compiled from manufacturer datasheet and multiple reseller listings. Do not infer beyond provided manufacturer data. |
| Ports | 4 × Fast Ethernet (10/100 Mbps) |
| Category | Networking |
| Mounting | Pole / Wall mount |
| Protocols | ipMAX (IP-COM proprietary, TDMA) ipLink (IP-COM proprietary auto-bridge) |
| Dimensions | 193 × 109 × 61 mm |
| Management | Centralized management software (PC-CPE Controller); web management interface |
| Technology | ipMAX ac (802.11ac) |
| Description | The IP-COM CPE6S is a 5GHz outdoor CPE designed for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) wireless links such as video surveillance transmission and broadband access. It uses ipMAX (802.11ac) technology for up to 867 Mbps throughput, a 12 dBi dual-polarization directional antenna for long-range stability (typical range up to 5 km), IP65 weatherproof enclosure, 6000V lightning protection, and multiple power options including 12V 1A DC and passive PoE (also compatible with 802.3af/at per manufacturer notes). The unit includes management and protocol support for ipMAX/ipLink, common wireless security and VLAN features, and is supplied with power adapter and PoE injector (package contents vary by pack option). |
| VPN Support | PPTP L2TP VPN pass-through |
| Antenna Gain | 12 dBi |
| Antenna Type | Dual-polarization directional antenna |
| Power Supply | 12V 1A DC; 12V 1A Passive PoE |
| Product Type | Outdoor CPE |
| Sub-Category | Wireless Networking |
| Default Login | Password: admin Username: admin Default IP: 192.168.2.1 |
| Product Title | IP-COM CPE6S 5GHz 12dBi ipMAX ac Outdoor CPE |
| Voltage Range | 11–13 V DC |
| Certifications | FCC CE RoHS |
| Frequency Band | 5 GHz |
| Package Options | 1-pack 2-pack |
| Enclosure Rating | IP65 |
| Package Contents | 1 × 5 GHz 12 dBi ipMAX ac Outdoor CPE (per unit) 1 × Power adapter 1 × PoE injector 1 × Quick installation guide |
| Antenna Beamwidth | Vertical: 30° Elevation: 30° Horizontal: 30° |
| Max Wireless Rate | 867 Mbps |
| Power Consumption | 14.7 W |
| Operating Humidity | 10% to 90% non-condensing |
| Wireless Standards | IEEE 802.11a IEEE 802.11n IEEE 802.11ac |
| Ethernet Interfaces | 4 × 10/100 Mbps; Passive PoE via PoE/LAN (+4,5 pins; -7,8 pins) |
| Receive Sensitivity | 11a 6 Mbps: -92 dBm ±1.5 dBm 11n MCS7 HT20: -72 dBm ±1.5 dBm 11ac MCS9 HT80: -64 dBm ±1.5 dBm |
| Software / Features | AP/Station/WISP/P2MP/WDS Repeater/Router modes Transparent bridge SSID and client isolation Channel bandwidth: 20/40/80 MHz Adjustable TX power by 1 dBm WMM / APSD Wireless security: WEP 64/128, WPA-PSK, WPA2-PSK VLAN tagging for SSID DHCP server Remote web access Client limitation and weak-signal client control |
| Storage Temperature | -40°C to 70°C |
| Lightning Protection | 6000 V |
| Operating Temperature | -30°C to 60°C |
| Application / Use Cases | Point-to-Point (PtP) links Point-to-Multipoint (PtMP) networks Outdoor wireless broadband access CCTV / video surveillance backhaul |
| Supported PoE Standards | Passive PoE (12V 1A) 802.3af/802.3at (manufacturer documentation lists compatibility) |
| Maximum Transmission Range | Up to 5 km (typical, per manufacturer) |
IP-COM (CPE6S) 5GHz 5km 867Mbps Point to Point Outdoor CPE, 6kv lightning protection
