Ip-Com (CPE9) 2.4GHz 5km Point To Point Outdoor Cpe, 6kv Lightning Protection CPE9v2.0
SKU
404211
Brand
MPN
CPE9v2.0
Warranty
Standard Manufacturer's Warranty
$103.00
Buy Now And Earn 103 Reward Points!

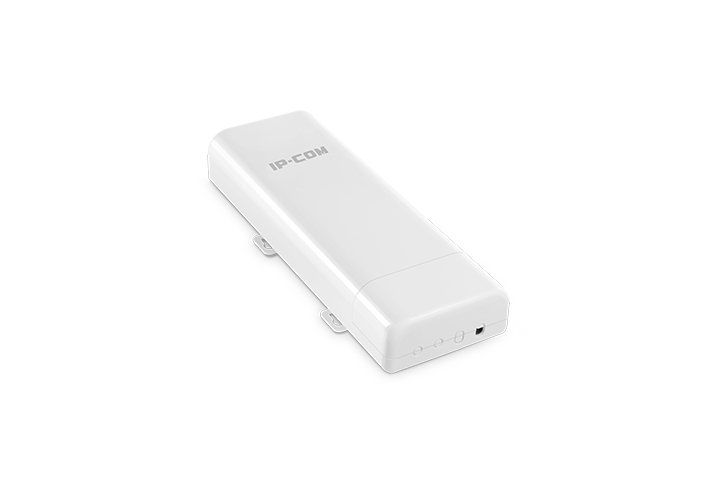

IP-COM CPE9 2.4GHz 5km Point to Point Outdoor CPE
• 802.11b/g/n 2.4GHz, 150Mbps
• Maximum Transmission Range 5km
• 2 Fast Ethernet Port
• IP64 waterproof enclosure
• 6kv Lightning Protection
• Automatic Pairing
• 12V/1A Passive PoE (injector included)
• Operating Temperature -30℃ ~ 60℃
• For long range video surveillance and data transmission
• 802.11b/g/n 2.4GHz, 150Mbps
• Maximum Transmission Range 5km
• 2 Fast Ethernet Port
• IP64 waterproof enclosure
• 6kv Lightning Protection
• Automatic Pairing
• 12V/1A Passive PoE (injector included)
• Operating Temperature -30℃ ~ 60℃
• For long range video surveillance and data transmission
| MPN | CPE9v2.0 |
|---|---|
| SKU | CPE9v2.0 |
| Brand | IP-COM |
| Color | White |
| Model | CPE9 v2.0 |
| Notes | Manufacturer product names in sources appear as CPE9, CPE9 V2.0, and CPE9v2.0. This consolidated record uses CPE9 v2.0 to reflect hardware version. |
| Weight | 1 kg |
| Category | Networking |
| Features | Auto-bridge (automatic two-device linking) WISP (Client + Router) support Centralized management (IP-COM CPE Controller) 3-signal strength LED indicator Professional outdoor design IP64 waterproof enclosure 6 kV lightning protection |
| Security | 64-bit WEP 128-bit WEP WPA WPA-PSK WPA2 WPA2-PSK Hidden SSID |
| Warranty | 1 Year |
| DHCP Server | Yes |
| Description | IP-COM CPE9 v2.0 is a 2.4 GHz outdoor Customer Premises Equipment (CPE) for long-distance point-to-point and WISP applications. It provides up to 150 Mbps wireless throughput using IEEE 802.11b/g/n, a 12 dBi directional internal antenna and an independent power amplifier to support links up to 5 km. Designed for outdoor use with an IP64 enclosure, the CPE9 features auto-bridge for easy two-device linking, three-signal strength LEDs to aid placement, two 10/100 RJ-45 Ethernet ports, security support including WEP/WPA/WPA2, and centralized management via IP-COM CPE Controller. The unit includes an AC adapter and quick start guide. |
| Signal LEDs | 3 (signal strength) |
| VPN Support | PPTP L2TP |
| Antenna Gain | 12 dBi |
| Antenna Type | Internal directional |
| Reset Button | Yes |
| Sub-Category | Wireless Networking |
| Product Title | IP-COM CPE9 v2.0 2.4GHz 12 dBi Outdoor Point-to-Point CPE (5 km) |
| Certifications | FCC CE RoHS |
| Ethernet Ports | 2 x RJ-45 |
| Frequency Band | 2.4 GHz |
| LED Indicators | LAN PoE |
| Output Voltage | 11 - 13.8 V |
| Firmware Version | V1.0.0.1 |
| Hardware Version | V2.0 |
| Maximum Data Rate | 150 Mbit/s |
| Product Condition | Brand New/Unused |
| Transmission Range | Up to 5 km |
| Wireless Standards | IEEE 802.11b IEEE 802.11g IEEE 802.11n |
| AC Adapter Included | Yes |
| Storage Temperature | -40 °C to 70 °C |
| Accessories Included | AC adapter Quick start guide |
| Placement / Mounting | Wall / outdoor mount |
| Receiver Sensitivity | MCS0: -96 dBm MCS7: -72 dBm |
| Operating Temperature | -30 °C to 60 °C |
| Dimensions (W x D x H) | 94.9 mm x 67.5 mm x 270 mm |
| Firmware Upgrade Notes | Firmware V1.0.0.1 applies only to CPE9 V2.0 devices. Device firmware must be V1.0.0.XX or newer before applying this firmware. Do not power off the device during upgrade. Use the .bin or .trx file from the unzipped package to upgrade. Reset device to factory settings after upgrade. |
| Ethernet LAN Data Rates | 10/100 Mbit/s |
| Power Consumption (Max) | 4.3 W |
| Number of Units Included | 1 |
| Power over Ethernet (PoE) | No (per specification source) |
| Storage Relative Humidity | 10% to 90% |
| Operating Relative Humidity | 10% to 90% |
| Enclosure Protection (IP) Code | IP64 |
IP-COM (CPE9) 2.4GHz 5km Point to Point Outdoor CPE, 6kv lightning protection
