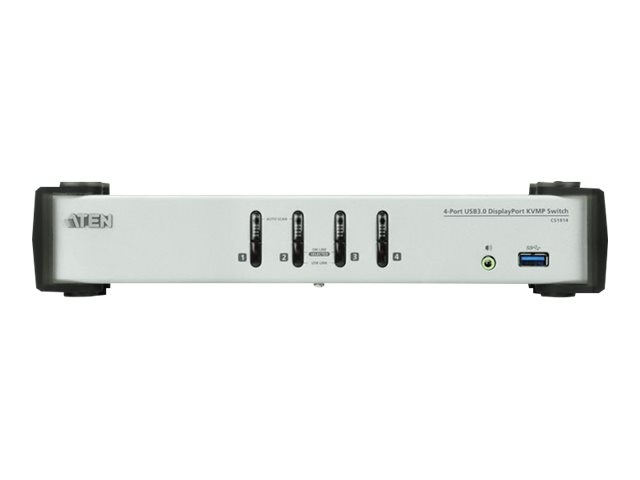

Aten 4 Port USB 3.0 4K Displayport Kvmp CS1914-AT-U
SKU
424330
Brand
MPN
CS1914-AT-U
Warranty
Standard Manufacturer's Warranty
$613.00
Buy Now And Earn 613 Reward Points!
The ATEN CS1914 4-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1914 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.
As a KVM switch, the CS1914 gives users access to four DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1914 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.
ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.
Key Features
- Supports superior video quality – up to 3840 x 2160 @ 30 Hz
- Computer selection via front panel pushbuttons, hotkeys and mouse
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
- DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
As a KVM switch, the CS1914 gives users access to four DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1914 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.
ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.
Key Features
- Supports superior video quality – up to 3840 x 2160 @ 30 Hz
- Computer selection via front panel pushbuttons, hotkeys and mouse
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
- DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
| Video | 3840 x 2160 @ 30Hz |
| - Power | 1 x DC Jack |
| - Weight | 0.91kg |
| - Housing | Metal, Plastic |
| - USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel) |
| - Selected | 4 x Pushbutton |
| - USB Link | 4 (Green) |
| Scan Interval | 1-99 seconds (Default 5 seconds) |
| Port Selection | Hotkey, Pushbutton, Mouse |
| - Console Ports | 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) |
| Power Consumption | DC 5V : 2.99W : 57BTU/h |
| - Keyboard / Mouse | USB |
| - Online / Selected | 4 (Orange) |
| Computer Connections | 4 |
| - Storage Temperature | -20 - 60C |
| - KVM (Computer) Ports | 4 x USB3.1 Gen1 Type B Female (Blue) 4 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) |
| - Operating Temperature | 0 - 50C |
| - Dimensions (L x W x H) | 27.00 x 8.80 x 5.55 cm |
The ATEN CS1914 4-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1914 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.
