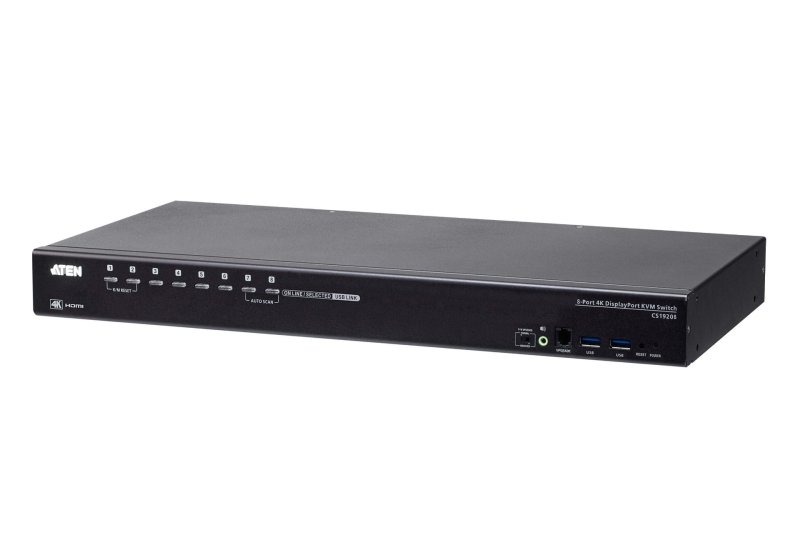

Aten 8-Port USB 3.0 4K Displayport Kvm Switch CS19208-AT-U
SKU
410170
Brand
MPN
CS19208-AT-U
Warranty
Standard Manufacturer's Warranty
$2,242.00
Buy Now And Earn 2242 Reward Points!
The CS19208, featuring superior 4K video quality, USB 3.0 peripheral agility, and space-saving rackmount capability, allows 8 computers to be centrally controlled via a single console where IT engineers are enabled to expedite system operations by configuring multiple units simultaneously instead of working one at a time; routine or repetitive tasks and procedures can be promptly replicated and broadcasted on multiple computers in seconds, slashing time, space, and cost, while pursuing strengthened enterprise productivity.
Key Features
- Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz) and built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Cascadable to two levels – controls up to 128 computers
- Multi-Display feature – stack up to eight CS19208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
Key Features
- Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz) and built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Cascadable to two levels – controls up to 128 computers
- Multi-Display feature – stack up to eight CS19208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
| Video | DisplayPort: 4096 x 2160 @ 60Hz; HDMI: 4096 x 2160 @ 60Hz |
| - Power | 1 x DC Jack |
| - Direct | 16 |
| - Weight | 3.11kg |
| - Housing | Metal |
| - Maximum | 128 (via Cascade) |
| - USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 2 x front) |
| - USB Link | 8 (Green) |
| - KVM Ports | 8 x DisplayPort Female 8 x USB3.1 Gen1 Type B Female (Blue) 8 x 3.5mm Audio Jack Female (Green) |
| - Power (LED) | 1 (Green) |
| Scan Interval | 0 – 255 Seconds (Default: 5 secs) |
| Port Selection | OSD, Hotkey, Pushbutton, RS-232 Commands |
| - Console Ports | 1 x DisplayPort Female 1 x HDMI Female (Black) 2 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) |
| Power Consumption | DC 12V : 18.44W : 136BTU/h |
| - Firmware Upgrade | 1 x RJ-11 Female (Black) |
| - Keyboard / Mouse | USB |
| - Online / Selected | 8 (Orange) |
| - Storage Temperature | -20 - 60C |
| - Operating Temperature | 0 - 40C |
| - Dimensions (L x W x H) | 43.24 x 21.43 x 4.40 cm |
The CS19208, featuring superior 4K video quality, USB 3.0 peripheral agility, and space-saving rackmount capability, allows 8 computers to be centrally controlled via a single console where IT engineers are enabled to expedite system operations by configuring multiple units simultaneously instead of working one at a time; routine or repetitive tasks and procedures can be promptly replicated and broadcasted on multiple computers in seconds, slashing time, space, and cost, while pursuing strengthened enterprise productivity.
