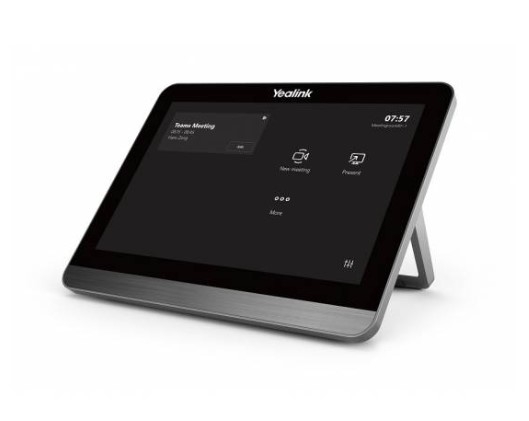

Yealink (Ctp18-Std) CTP18 Touch Panel For The A20/A30, Includes Wall Mount Bracket CTP18-STD
SKU
412597
Brand
MPN
CTP18-STD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$682.00
Buy Now And Earn 682 Reward Points!
For Meetingbar A20/A30
• 1x CTP18 touch console
• 1x PoE power adapter
• 1x wall bracket
• 1x 7.5m CAT5E cable
• 1x cable lock box
• Including 2-year hardware warranty
• 1x CTP18 touch console
• 1x PoE power adapter
• 1x wall bracket
• 1x 7.5m CAT5E cable
• 1x cable lock box
• Including 2-year hardware warranty
| MPN | CTP18-STD |
|---|---|
| SKU | CTP18-STD |
| UPC | 8418851164994 |
| GTIN | 0841885116499 |
| Brand | Yealink |
| Model | CTP18-STD |
| Power | Power Source: PoE (IEEE 802.3af) Rated Current: 0.27 A Power Consumption (operational): 7 W |
| Display | Type: IPS Resolution: 1280 x 800 Touch Type: Multi-touch Touchscreen: Yes Size (inches): 8 Size (metric): 20.3 cm |
| Features | Conference control and meeting scheduling Annotation on shared content Preview and adjust camera / change participant layouts User-centered interactive design for quick meeting control Kensington security lock slot Kickstand Wall-mountable |
| Physical | Color: Black Depth: 5.9 in Width: 8 in Height: 3.9 in Weight: 3.75 lb Form Factor: Wall mount / tabletop (kickstand) |
| Warranty | 24 months (limited) |
| Description | The Yealink CTP18 is an 8-inch collaboration touch panel and meeting-room control console for small to medium rooms. Running Android 9.0, it provides multi-touch meeting controls, conference scheduling, annotation on shared content, and direct interaction with Yealink Wireless Presentation Pod WPP20 for content control. CTP18 supports wired (RJ-45 PoE) and wireless (802.11a/b/g/n/ac) connections, can connect to VCS endpoints, and is compatible with Yealink MeetingBar A20/A30 and a range of Yealink MeetingEye/VC systems. The unit ships with a wall-mount bracket and includes a Kensington security slot and kickstand for flexible installation. |
| Connectivity | Wired: true Ethernet: 10Base-T Wireless: true Interfaces: [ "RJ-45 (LAN/PoE)", "USB-C" ] Frequency Bands: [ "2.4 GHz", "5 GHz" ] Wireless Standards: [ "IEEE 802.11a", "IEEE 802.11b", "IEEE 802.11g", "IEEE 802.11n", "IEEE 802.11ac" ] Power over Ethernet: IEEE 802.3af Number of RJ-45 Ports: 1 |
| Manufacturer | Yealink Network Technology Co., Ltd |
| Product Type | Collaboration Touch Panel / Touch Console |
| Compatibility | Yealink Wireless Presentation Pod WPP20 (annotation & remote control) Yealink MeetingBar A20/A30 Yealink MeetingEye 400 / MeetingEye 600 Yealink VC880 / VC800 / VC500 Yealink VC200 / VC210 VCS endpoints (via cable or Wi‑Fi) |
| Environmental | Environmentally Friendly: Yes |
| Product Title | Yealink CTP18 Collaboration Touch Panel (8-inch) |
| Included Items | Wall mount bracket |
| Operating System | Android 9.0 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | CTP18-STD |
| Certifications and Compliance | REACH RoHS FCC ANATEL CCC ISO 9000 NOM IEEE 802.3af |
| Accessories (optional / mentioned) | Yealink Wireless Presentation Pod WPP20 |
Yealink (CTP18-STD) CTP18 Touch Panel for the A20/A30, includes wall mount bracket
