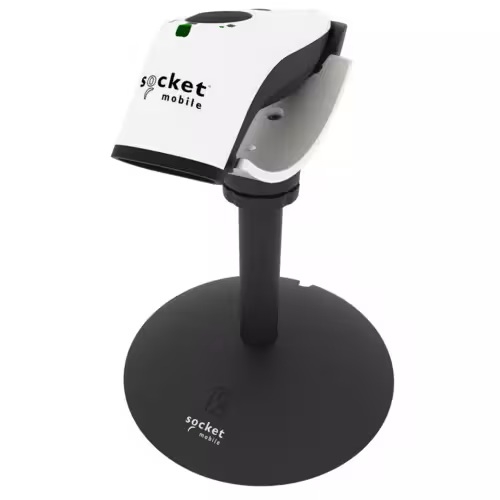

SocketScan S720 Linear Barcode QR Code Reader White Charging Stand CX4068-3131

SKU
402051
Brand
MPN
CX4068-3131
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$549.00
Buy Now And Earn 549 Reward Points!

Socket Mobile S720 Transportation, Loyalty Program, Delivery, Hospitality, Inventory, Asset Tracking, Ticketing Handheld Barcode Scanner - Wireless Connectivity - Yellow, Black, Blue, Green, Red, White - 380 mm Scan Distance - 1D, 2D - LED - Imager - Linear - Bluetooth, Radio Frequency - Stand Included

Linear Barcode Plus QR Code Scanner

The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It's lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.

The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.

Features
  • Compatible with Apple® iOS devices (iPad®, iPhone®, iPod Touch®) and Android, Windows®, Mac and Linux.
  • Scanning - 2D and 1D barcode scanning.
  • Auto Scan Mode - Presentation Mode (automatic scanning) provides continuous scanning capabilities without pressing the scan button.
  • Exceptional Ergonomics - Small, light and fits perfectly in hand for comfortable use over extended periods.
  • Long-Lasting, Replaceable, Rechargeable Battery - Power to last over 16 hours on a single charge.
  • User Indicators - Intuitive LEDs for Bluetooth connection, battery level and scanning status.
  • User Feedback - Audible tones and pulsation.
  • LED Aimer - Bright, rectangular illumination field with LED pointer for precise aiming.
  • Decoding Ability - Reads damaged and poorly printed barcodes.
  • Developer Support Available - The Socket Mobile development team is available to help integrate CaptureSDK into your app.
Guides & Documents
Warranty
Additional Warranty Information Optional extended warranty options available.
Battery Information
Battery Included Yes
Battery Weight 54.5 g
Network & Communication
Bluetooth Yes
Radio Frequency Yes
Physical Characteristics
Weight (Approximate) 116.2 g
Form Factor Handheld
Product Color White
General Information
Product Type Barcode Scanner
Manufacturer Part Number CX4068-3131
Manufacturer Website Address http://www.socketmobile.com
Manufacturer Socket Mobile, Inc
Product Model S720
Product Name SocketScan S720 Linear Barcode Scanner
Brand Name Socket Mobile
Miscellaneous
Application/Usage Transportation
  Asset Tracking
  Ticketing
  Loyalty Program
  Delivery
  Hospitality
  Inventory
Package Contents
  • S720 barcode scanner (with rechargeable 2000mAh AA (LR6) NiMH x2)
  • USB Charging Cable
  • Wrist Strap
  • Get Started Insert
  • 1 year limited Warranty on barcode scanner
Compatibility
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Technical Information
Barcode Symbology Supported 1D :

  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • ISBT 128
  • UPC A
  • UPC E1
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 16KCode 39
  • Code 93
  • Code 128
  • Discrete 2 of 5
  • EAN-13
  • EAN-8
  • GS1 Databar
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI Plessey
  • UPC A
  • UPC E1
  • Standard 2 of 5
  • UK Plessey
2D :

  • Data Matrix
  • Micro QR Code
  • PDF417
  • QR Code Supported Barcode Symbologies: 1D Symbologies: Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 16KCod
  • Aztec
  • Data Matrix
  • Han Xin
  • Micro PDF417
  • Micro QR Code
  • PDF417
  • QR Code
Display Screen Yes
Connectivity Technology Wireless
Scanning Distance 380 mm
Light Source LED
Drop Specification 4 ft. drop to linoleum
Scan Pattern Linear
Image Sensor Type Imager
Stand Included Yes
Scanning Capability 1D
  2D
Field of View (Horizontal) 45°
Field of View (Vertical) 34°
Maximum Ambient Light 100000 lux
Minimum Print Contrast 25%
Maximum Element Resolution (Code 39) 0.13 mm
Maximum Element Resolution (DataMatrix) 0.25 mm
