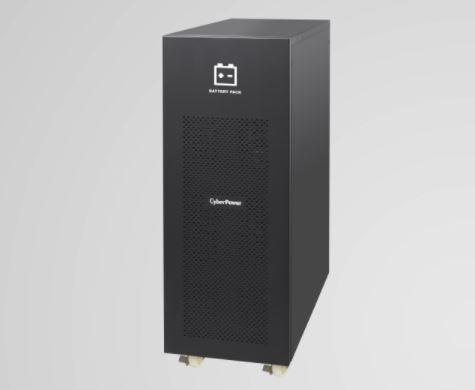

CyberPower Battery Packs For Ols 15Kva/20Kva UPS (Bpse240V82A)- 2 Yrs Rtb Warranty BPSE240V82A
SKU
228668
Brand
MPN
BPSE240V82A
Warranty
Standard Manufacturer's Warranty
$2,909.00
Buy Now And Earn 2909 Reward Points!
CyberPower Battery Packs for OLS 15KVA/20KVA UPS (BPSE240V82A) - 2 Yrs RTB Warranty
| RoHS | Yes |
|---|---|
| Brand | CyberPower |
| Color | Black |
| Model | BPSE240V82A |
| UPC/EAN | 4712856270075 |
| Features | Sealed lead-acid batteries Metal housing (industrial-grade) EBM expansion capability Daisy-chain expansion / plug-and-play DC connectors Wheels available for installation |
| Depth (cm) | 55 |
| Width (cm) | 26 |
| Description | The CyberPower BPSE240V82A external battery module extends UPS runtime for compatible CyberPower Online S (3-Phase) systems (notably OLS 15kVA / 20kVA). The tower-form pack houses forty 12V/9Ah sealed lead-acid batteries to provide a 240 Vdc output at 82 A. Designed for demanding environments with rugged metal enclosure, plug-and-play DC connectors and daisy-chain expansion capability enable scalable runtime. Typical recharge time is about 5 hours. The unit is not user-replaceable and does not include a built-in charger. Documentation: datasheet available. |
| Form Factor | Tower |
| Height (cm) | 71.8 |
| Weight (kg) | 124 |
| Battery Type | Sealed lead-acid (SLA) |
| Part Numbers | BPSE240V82A 1271554 |
| Product Type | External Battery Pack |
| Weight (lbs) | 273.4 |
| Datasheet URL | https://www.cyberpower.com/au/en/File/GetCyberpowerFileByDocId/DS-19120005-01 |
| Product Title | CyberPower BPSE240V82A External Battery Pack (240 Vdc, 82 A, 40 x 12V/9Ah) |
| Certifications | CE |
| Built-in Charger | No |
| Storage Elevation | 0 to 4,921 ft (0 to 1,500 m) |
| Enclosure Material | Metal |
| Warranty (Battery) | 2 years |
| Warranty (Product) | 2 years |
| Operating Elevation | 0 to 4,921 ft (0 to 1,500 m) |
| Output Voltage (Vdc) | 240 Vdc |
| Shipping Weight (kg) | 134.5 |
| Shipping Weight (lbs) | 296.5 |
| Battery Quantity (pcs) | 40 |
| Compatible UPS / Series | Online S (3-Phase) Series OLS 15KVA OLS 20KVA |
| Dimensions (WxHxD) (mm) | 260 x 718 x 550 |
| Dimensions (WxHxD) (in.) | 10.24 x 28.27 x 21.65 |
| Rated Output Current (A) | 82 |
| User Replaceable Battery | No |
| Storage Temperature (°C) | -20 to 40 |
| Storage Temperature (°F) | -4 to 104 |
| Compatible UPS Rating (VA) | 15,000 VA / 20,000 VA |
| Single Battery Voltage (V) | 12 |
| Operating Temperature (°C) | 0 to 40 |
| Operating Temperature (°F) | 32 to 104 |
| Single Battery Capacity (Ah) | 9 |
| Battery Voltage (V) (nominal) | 240 Vdc |
| Expansion Ready (Daisy-Chain) | Yes |
| Typical Recharge Time (Hours) | 5 |
| Shipping Dimensions (WxHxD) (mm) | 428 x 970 x 720 |
| Shipping Dimensions (WxHxD) (in.) | 16.85 x 38.19 x 28.35 |
| Storage Relative Humidity (Non-condensing) (%) | 0 to 90 |
| Operating Relative Humidity (Non-condensing) (%) | 0 to 90 |
CyberPower Battery Packs for OLS 15KVA/20KVA UPS (BPSE240V82A)- 2 Yrs RTB Warranty
