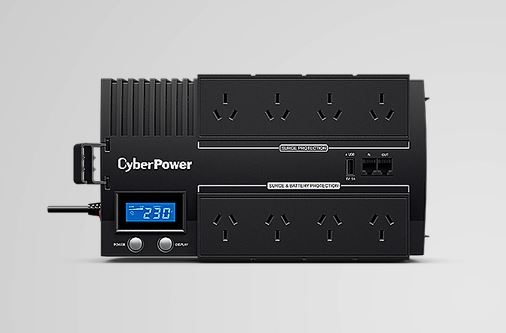

CyberPower Bric-LCD 1000VA/600W (10A) Line Interactive UPS - (Br1000Elcd)-2 Yrs Adv. Replacement Incl.Int. Batteries BR1000ELCD
SKU
166182
Brand
MPN
BR1000ELCD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $244.00 Regular Price $280.00
Buy Now And Earn 244 Reward Points!
GENERAL
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPSâ„¢ Bypass Technology
INPUT
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 170 ~ 290
Input Frequency (Hz): 50 ± 5 60 ± 5
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 4.55
Input Connector Type: AU
Power Cord Length (ft.): 5
Power Cord Length (m.): 1.5
OUTPUT
Capacity (VA): 1000
Capacity (Watts): 600
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost, Single Buck
Overload Protection: Circuit Breaker
Outlet(s) – Total: 8
Outlet Type: AUx8
Outlet(s) - Battery & Surge Protected: 4
Outlet(s) - Surge-Only Protected: 4
USB Charging Port(s): 1
USB Charging Current (A): 1
Typical Transfer Time (ms): 4
BATTERY
Runtime at Half Load (min): 6
Runtime at Full Load (min): 1
Typical Recharge Time (Hours): 8
Start On Battery: Yes
User-replaceable: Yes
Batte
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPSâ„¢ Bypass Technology
INPUT
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 170 ~ 290
Input Frequency (Hz): 50 ± 5 60 ± 5
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 4.55
Input Connector Type: AU
Power Cord Length (ft.): 5
Power Cord Length (m.): 1.5
OUTPUT
Capacity (VA): 1000
Capacity (Watts): 600
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost, Single Buck
Overload Protection: Circuit Breaker
Outlet(s) – Total: 8
Outlet Type: AUx8
Outlet(s) - Battery & Surge Protected: 4
Outlet(s) - Surge-Only Protected: 4
USB Charging Port(s): 1
USB Charging Current (A): 1
Typical Transfer Time (ms): 4
BATTERY
Runtime at Half Load (min): 6
Runtime at Full Load (min): 1
Typical Recharge Time (Hours): 8
Start On Battery: Yes
User-replaceable: Yes
Batte
| SKU | BR1000ELCD |
|---|---|
| Brand | CyberPower |
| Model | BR1000ELCD |
| Series | BRICs LCD |
| Weight | 6.5 kg |
| Outlets | 6 |
| Category | Power and Rack Equipment |
| Mounting | Desktop/Freestanding or Wall-mountable |
| Topology | Line-interactive |
| Output VA | 1000 VA |
| Description | The CyberPower BR1000ELCD is a 1000VA / 600W line-interactive UPS designed for home and small office use. It features GreenPower UPS technology for improved efficiency, Automatic Voltage Regulation (AVR) to maintain safe voltages, simulated sine wave output, and comprehensive surge and data-line protection for phones and networks. An LCD status display provides real-time power and battery information. Communications and management are provided via USB (compatible with PowerPanel management software and usbhid-ups drivers). The unit is brick-form factor, can be desktop/freestanding or wall-mounted, and includes a user manual, USB cable and phone line cable. |
| Form Factor | Brick |
| LCD Display | Yes (status LCD) |
| Outlet Type | UK 3-pin sockets (region-specific) |
| Battery Type | Lead-acid (Pb-Acid) |
| Output Watts | 600 W |
| Sub-Category | Power Equipment |
| Auto Features | Auto-restart and auto-charge |
| Product Title | CyberPower BR1000ELCD 1000VA (600W) Line-Interactive UPS with LCD |
| Output Waveform | Simulated sine wave |
| Battery Capacity | 9 Ah |
| Country of Origin | China |
| USB Charging Port | Yes |
| Dimensions (WxHxD) | 166 x 188 x 288 mm |
| Additional Features | LCD status monitor with detailed power/battery information Simulated sine wave output suitable for PC and network devices Battery replaceable (serviceable cells) |
| Overload Protection | Circuit breaker |
| Data Line Protection | Phone/Fax/Modem (RJ11) and network protection (RJ45) |
| Included Accessories | USB cable Phone line cable User's Manual Quick Start Guide |
| Typical Battery Runtime | Information varies by load (device reports runtime values when connected) |
| Energy Saving Technology | GreenPower UPS technology |
| Battery Voltage (nominal) | 12 V |
| Communications/Management | USB (usbhid-ups supported), PowerPanel management software compatible |
| Output Voltage (reported) | Approx. 230–239 V (device reports ~239 V under nominal conditions) |
| Surge and Spike Protection | Yes |
| Input Voltage Compatibility | Nominal 230 V (commonly specified for 220–240 V regions) |
| Supported Drivers/Protocols | usbhid-ups (Network UPS Tools) PowerPanel software |
| Automatic Voltage Regulation (AVR) | Yes |
CyberPower BRIC-LCD 1000VA/600W (10A) Line Interactive UPS - (BR1000ELCD)-2 Yrs Adv. Replacement incl.Int. Batteries
