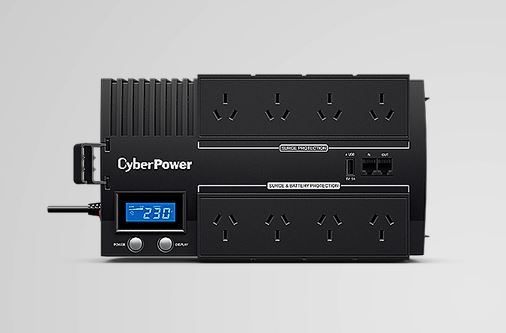

Cyberpower Bric-lcd 1200va/ 720w (10a) Line Interactive Ups - (br1200elcd)-2 Yrs Adv. Replacement
SKU
210318
Brand
MPN
BR1200ELCD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$339.00
Buy Now And Earn 339 Reward Points!
QUICK OVERVIEW
incl.Int. Batteries BR1200ELCD
The BRICs LCD Series UPS with LCD can supply clean and stable power to protect your equipment. The include PowerPanel® Personal Edition management software showcases the feature rich abilities of this UPS such as input /output power voltage readings, self-diagnostics, scheduled shutdown, and approximate battery back-up time reading. These UPS units can be placed in either a horizontal or wallmount postition to mark the most of your space. With Energy-Saving Technology, BRICs LCD Series UPS can save upto 75% of electricity and save your electricity bill. You can easy charge AA/AAA battery Via USB charge with battery charger.
Features & Benefits：
- GreenPower UPS™ Technology : Energy-Saving UPS
- Microprocessor based full digital control
- Automatic Voltage Regulator (AVR)
- EMI, RFI, Surge and lightning spike protection
- Phone / Fax / Modem / DSL / Network protection
- Power Management software included
- Scheduled shutdown
- Auto restart / Auto charge
- Horizontal / Wallmount use
- USB connectivity ports
- Compact design with highest power output
- LCD Status Moniter
- Save upto 75% of electicity
- External AA/AAA battery charger include *(batteries excluded)
- Cable collector include
- Equipment Protection Policy up to 50,000 Euros
| Model | BR1200ELCD |
| General | |
| UPS Topology | Line-interactive |
| Energy Saving | Yes |
| Input | |
| Voltage | 220/230/240 Vac |
| Input Voltage Range | 165Vac - 290Vac |
| Rated Input current | 5.45A |
| Plug Type | Schuko |
| InputFrequency Range | 45Hz ~ 65 Hz |
| Output | |
| VA | 1200 |
| Watts | 720 |
| On Battery Waveform | Simulated Sine Wave |
| On Battery Voltage | 220-240Vac |
| Automatic Voltage Regulation (AVR) | Single Boost / Single Buck |
| On Battery Frequency | 50/60Hz ± 1% |
| Outlets - Total | 8 |
| Outlet Type | Schuko / FR |
| Outlets - Battery & Surge Protected | 4 |
| Outlets - Surge-Only Protected | 4 |
| USB Charging Ports | Yes |
| Transfer Time | 4ms |
| Battery | |
| Runtime at 60W (min) | 80 |
| Runtime at 90W (min) | 51 |
| Battery Type | Sealed Lead Acid |
| Battery Quantity | 2 |
| User Replaceable | Yes |
| Hot-Swappable | Yes |
| Typical Recharge Time | 8 Hours |
| Replacement Battery Pack | RBP0063 |
| Replacement Battery Pack Quantity | 2 |
| Surge Protection and Filtering | |
| Surge Suppression | 125 Joules (L-N) |
| Phone / Network Protection RJ11/RJ45 | 1-In, 1-Out (Combo) |
| Physical | |
| Management & Communications | |
| LCD Control Panel | Yes |
| HID Compliant USB Port | Yes |
| LED Indicators | Yes |
| Audible Alarms | On Battery, Low Battery, Overload, Fault |
| Software | PowerPanel® Personal Edition |
| Physical | |
| Form Factor | Brick |
| Physical | |
| Dimensions (WxHxD) (mm.) | 166x118x288 |
| Weight (kg.) | 8.2 |
| Environmental | |
| Operating Temperature | + 32°F to 104° F / 0° C to 40° C |
| Operating Humidity | 0% - 90% non-condensing |
| Operating Elevation | 0-10000 feet (0-3000meters) |
| Storage Temperature | - 4°F to 122° F / -20° C to 50° C |
| Storage Relative Humidity | 0% - 90% |
| Online Thermal Dissipation | 137 BTU/hr |
*Model: BR1200ELCD
*Capacity (VA/Watts): 1200VA / 720W
*Energy-Saving Technology: Yes
--Input:
*Voltage Range:170Vac - 290Vac
*Frequency Range: 45 ~ 65 Hz (Auto Sensing)
--Output:
*UPS Outlets (Numbers): (8) AU Outlets(4 for battery backup & surge, 4 for surges)
*On Battery Output Voltage: Simulated Sine Wave at 230Vac +/- 10%
*On Battery Output Frequency: 50Hz / 60 Hz +/- 1%
* Transfer Time (Typical): 4ms
--Overload Protection:
*On Utility: Circuit Breaker & Internal Current Limiting / On Battery: Internal Current Limiting
*AVR: Yes
--Surge Protection and Filtering:
*Surge Protection: Yes
*DSL/Phone/Fax/Modem protection:RJ11/RJ45(One In/One Out)
--Physical:
*Dimensions(H x W x D)(mm): 113.6 x 271 x 160.7
*Weight(kg): 6.8
--Battery:
*Sealed Maintenance Free Lead Acid Battery: 12V 9AH x 1
*User Replaceable: Yes
*Typical Recharge Time: 8 Hours
--Runtimes:
*60W / 90W (mins): 80 / 51
--Status Indicators:
*Indicators: Power On
*Audible Alarms: On Battery, Low Battery, Overload
--Communication:
*Power Management Software: PowerPanel® Personal Edition
--Management:
*Self Test: Yes
*Auto-Charge: Yes
*Auto-Restart: Yes
*USB : Yes
*USB Charger Port: Yes
*Capacity (VA/Watts): 1200VA / 720W
*Energy-Saving Technology: Yes
--Input:
*Voltage Range:170Vac - 290Vac
*Frequency Range: 45 ~ 65 Hz (Auto Sensing)
--Output:
*UPS Outlets (Numbers): (8) AU Outlets(4 for battery backup & surge, 4 for surges)
*On Battery Output Voltage: Simulated Sine Wave at 230Vac +/- 10%
*On Battery Output Frequency: 50Hz / 60 Hz +/- 1%
* Transfer Time (Typical): 4ms
--Overload Protection:
*On Utility: Circuit Breaker & Internal Current Limiting / On Battery: Internal Current Limiting
*AVR: Yes
--Surge Protection and Filtering:
*Surge Protection: Yes
*DSL/Phone/Fax/Modem protection:RJ11/RJ45(One In/One Out)
--Physical:
*Dimensions(H x W x D)(mm): 113.6 x 271 x 160.7
*Weight(kg): 6.8
--Battery:
*Sealed Maintenance Free Lead Acid Battery: 12V 9AH x 1
*User Replaceable: Yes
*Typical Recharge Time: 8 Hours
--Runtimes:
*60W / 90W (mins): 80 / 51
--Status Indicators:
*Indicators: Power On
*Audible Alarms: On Battery, Low Battery, Overload
--Communication:
*Power Management Software: PowerPanel® Personal Edition
--Management:
*Self Test: Yes
*Auto-Charge: Yes
*Auto-Restart: Yes
*USB : Yes
*USB Charger Port: Yes
