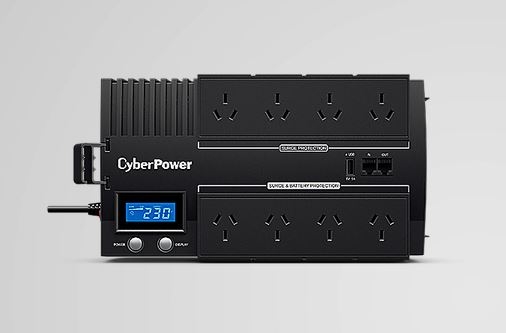

main product photo

Cyberpower Bric-lcd 700va/ 390w (10a) Line Interactive Ups - (br700elcd) -2 Yrs Adv.. Replacement

SKU
207397
Brand
Cyberpower
Manufacturer Link
MPN
BR700ELCD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $190.00 Regular Price $219.00
Buy Now And Earn 190 Reward Points!

QUICK OVERVIEW

incl. Int. Batteries BR700ELCD
Add to Compare
General
UPS Topology Line-interactive
Energy Saving Yes

Input
Voltage 220/230/240 Vac
Input Voltage Range 170Vac - 290Vac
Input Frequency Range 45-65Hz
Rated Input current 3.18A
Plug Type AU
Plug Style Straight Angle
Cord Length (ft.) 5
Cord Length (m) 1.5

Output
VA 700
Watts 420
On Battery Waveform Simulated Sine Wave
On Battery Voltage 220-240Vac
Automatic Voltage Regulation (AVR) Single Boost / Single Buck
Automatic Voltage Regulation (Line Mode) Boost Mode Voltage: Vinx1.18Buck Mode Voltage: Vinx0.85
On Battery Frequency 50/60Hz ± 1%
Overload Protection On Utility: Circuit Breaker & Inter'N/Al circuitry limiting / On Battery: Inter'N/Al Current Limiting
Outlets - Total 8
Outlet Type AU
Outlets - Battery & Surge Protected 4
Outlets - Surge-Only Protected 4
USB Charging Ports Yes
Rated Power Factor 0.6
Transfer Time 4ms

Battery
Runtime at Half Load (min) 6
Runtime at Full Load (min) 1
Battery Type Sealed Lead Acid
Battery Number LEOCH/DJW12-7.2
Battery Size 12V/7.2AH
Battery Quantity 1
User Replaceable Yes
Hot-Swappable Yes
Typical Recharge Time 8 Hours
Replacement Battery Pack RBP0083
Replacement Battery Pack Quantity 1

Surge Protection & Filtering
Surge Suppression 125 Joules (L-N)
Phone / Network Protection RJ11/RJ45 1-In, 1-Out (Combo)

Management & Communications
LCD Control Panel Yes
Multifunction LCD Diagnostic Display Battery Capacity, Load Capacity, Estimated run time, Input voltage, Output voltage, Line mode Icon, Battery mode Icon, Overloaded Icon, Silent mode Icon, Fault Icon
HID Compliant USB Port Yes
Management Cable USB&Phone Cable
LED Indicators YES
Audible Alarms On Battery, Low Battery, Overload, Fault
Software PowerPanel® Personal Edition

Physical
Form Factor Brick
Enclosure Construction Plastic
Mounting Hardware Yes

Physical - UPS Module
Dimensions (WxHxD) (mm.) 166x118x288
Weight (kg.) 5.3

Environmental
Operating Temperature + 32°F to 104° F / 0° C to 40° C
Operating Humidity 0% - 90% non-condensing
Operating Elevation 0-10000 feet (0-3000meters)
Storage Temperature - 4°F to 122° F / -20° C to 50° C
Storage Relative Humidity 0% - 90%
Storage Elevation 0-3000 meters
Online Thermal Dissipation 71 BTU/hr
Audible noise at 1.5M from surface of unit <40dB

Certifications
Certifications CE/RCM
RoHS RoHS Compliant




Warranty
Product Warranty 2 Years Limited
Connected Equipment Guarantee Lifetime
CEG Amount 75000 AUD
*Model: BR700ELCD
*Capacity (VA/Watts): 700VA / 420W
*Energy-Saving Technology: Yes
--Input:
*Voltage Range:160Vac - 265Vac
*Frequency Range: 47 ~ 63 Hz (Auto Sensing)
--Output:
*UPS Outlets (Numbers): (8) AU Outlets
*On Battery Output Voltage: Simulated Sine Wave at 230Vac +/- 10%
*On Battery Output Frequency: 50Hz / 60 Hz +/- 1%
* Transfer Time (Typical): 4ms
*Overload Protection:
On Utility: Circuit Breaker & Internal Current Limiting / On Battery: Internal Current Limiting
*AVR: Yes
--Surge Protection and Filtering:
*Surge Protection: Yes
*DSL/Phone/Fax/Modem protection:RJ11/RJ45(One In/One Out)
--Physical:
*Dimensions(H x W x D)(mm): 113.6 x 271 x 160.7
*Weight(kg): 5.5
--Battery:
*Sealed Maintenance Free Lead Acid Battery: 12V 7AH x 1
*User Replaceable: Yes
*Typical Recharge Time: 8 Hours
--Runtimes:
*Half-load / Full-load (mins): 9 / 2
--Status Indicators:
*Indicators: Power On
*Audible Alarms: On Battery, Low Battery, Overload
--Communication:
*Power Management Software: PowerPanel® Personal Edition
--Management:
*Self Test: Yes
*Auto-Charge: Yes
*Auto-Restart: Yes
*USB : Yes
