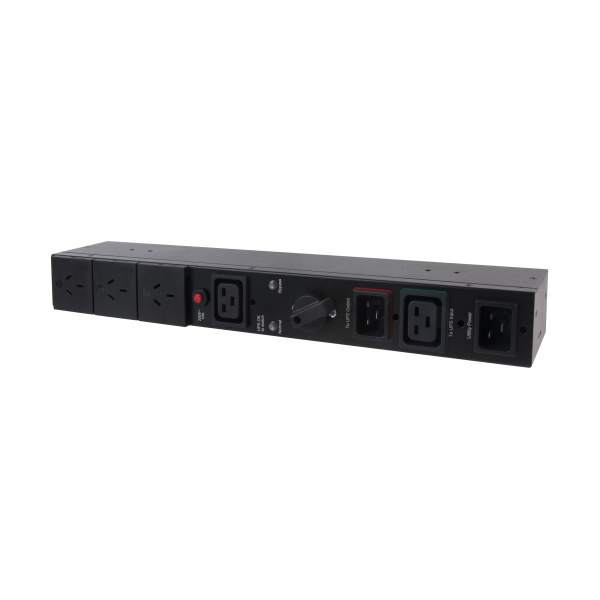

CyberPower Hotswap Maintenance Bypass Switch To Suit Online Series 1-3 Kva UPS -(Mbp20Hvau3)- 2 Yrs Adv Replacement Warranty MBP20HVAU3
SKU
146335
Brand
MPN
MBP20HVAU3
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$324.00
Buy Now And Earn 324 Reward Points!
QUICK OVERVIEW
Warranty
INPUT
Input Voltage Range (Vac): 200~240
Rated Input Current (A): 16
MBP Socket to Utility Power (Socket): IEC C20
MBP Socket to UPS Power Input (Socket): IEC C19
MBP Socket to UPS Outlet (Socket): IEC C20
OUTPUT
Outlet Type (Socket): IEC C19x1/AUx3
Typical Transfer Time (ms): <4
Cascading: Yes, IEC 16A Output Socket
PHYSICAL
Form Factor: >1U Rackmount
Enclosure Construction: Metal
Color: Black
Installation: Multi-Position Mountings , Vertical Rackmount , Horizontal Rackmount
Installation Attached to Rack/Tower UPSs: Yes
Retaining Clips: Retaining Clips on the IEC Input and Output Sockets
Rackmount Ears: Yes
PHYSICAL SIZE
Dimensions (WxHxD) (mm.): 433 x 51 x 76
Weight (kg.): 1.3
| EAN | 4712364143892 |
|---|---|
| SKU | MBP20HVAU3 |
| Brand | CyberPower |
| Color | Black |
| Model | MBP20HVAU3 |
| Notes | Some specification details (outlet types/count and dimensions/weight) vary between sources; values above reflect the majority or combined reported information. |
| Weight | 1.3 kg (reported) |
| Category | Power and Rack Equipment |
| Features | Built-in maintenance bypass / hotswap bypass switch LED status indicator Retaining clip design Multiple mounting options (horizontal, vertical, rear) Cascading design Rack ears included Metal housing |
| Material | Metal housing |
| Mounting | Horizontal, Vertical, Rear-mountable to UPS (rack ears included) |
| Description | The CyberPower MBP20HVAU3 is a 1U maintenance bypass PDU designed to attach to compatible CyberPower UPS units and allow seamless switching from UPS power to utility power during UPS maintenance. The unit supports horizontal, vertical and rear mounting (rack ears included), features a metal housing, LED status indicators, retaining-clip design and cascading capability. Electrical specifications include 200–240 VAC input, 16 A maximum current and a fast transfer time (~4 ms). The MBP provides multiple AC outlets (mix of IEC C13 and IEC C19; some configurations include AS/NZS 3112/AU outlets) and uses IEC C20 input connectors. Includes power cables and a rack-mounting kit. Suitable for use with CyberPower Online Series 1–3 kVA UPS models. Manufacturer warranty reported as 2 years (varies by source). |
| Device Type | Maintenance bypass / power distribution unit (PDU) - rack-mountable |
| Form Factor | 1U Rackmount |
| Sub-Category | Power Equipment |
| Compatibility | Designed to suit CyberPower Online Series 1–3 kVA UPS; supports UPS ratings up to 3 kVA (as reported) |
| Product Title | CyberPower MBP20HVAU3 1U Maintenance Bypass PDU (16 A, 200–240 V, 7 outlets) |
| Cables Included | 4 x power cable (reported) |
| Max Current (A) | 16 |
| Input Connectors | 2 x IEC 60320 C20 (reported) |
| Rack Mounting Kit | Included |
| Operating Humidity | 0 - 90% (non-condensing) (reported) |
| Input Voltage (Vac) | 200 - 240 |
| Rack Units (Height) | 1U |
| Manufacturer Warranty | 2 Years (reported by multiple sources) |
| Operating Temperature | 0 - 40 °C (reported) |
| Typical Transfer Time | ≈4 ms (reported as 4 ms / <4 ms) |
| Dimensions (W x D x H) | 433 x 76 x 51 mm (reported by multiple sources) |
| Rated Input Current (A) | 16 |
| Output - AC Outlet Types | Mix of IEC C13 and IEC C19; some reported configurations include AS/NZS 3112 (Australian) outlets |
| Part Numbers / Other IDs | MBP20HVAU3 78023469 523953 CP89109 2348317 345576 |
| Certifications / Compliance | C-Tick RoHS |
| Output - AC Outlets Quantity | 7 |
CyberPower Hotswap Maintenance Bypass Switch to suit Online Series 1-3 KVA UPS -(MBP20HVAU3)- 2 Yrs ADV Replacement Warranty
