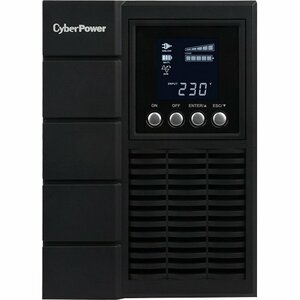

CyberPower Online S 1500VA/1350W (10A) Tower Online UPS - (OLS1500E) -2 Yr Adv Replacement Warranty 2 Yr Int. Batteries OLS1500E
SKU
210319
Brand
MPN
OLS1500E
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$835.00
Buy Now And Earn 835 Reward Points!
QUICK OVERVIEW
2 yr Int. Batteries OLS1500E
GENERAL
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
INPUT
Generator Compatibility: Yes
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 160~300
Input Frequency (Hz): 50 ± 10 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 6.5
Input Power Factor: 0.98
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU
OUTPUT
Capacity (VA): 1500
Capacity (Watts): 1350
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 208 ± 1%/220 ± 1%/230 ± 1%/240 ± 1%
Output Voltage Setting: Configurable
On Battery Frequency (Hz): 50 ± 0.5% 60 ± 0.5%
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Outlet(s) – Total: 4
Outlet Type: IEC C13 x4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time (ms): 0
BATTERY
Runtime at Half Load (min): 14
Runtime at Full Load (min): 4
Typical Recharge Time (Hours): 5
Maximum Charging Curre
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
INPUT
Generator Compatibility: Yes
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 160~300
Input Frequency (Hz): 50 ± 10 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 6.5
Input Power Factor: 0.98
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU
OUTPUT
Capacity (VA): 1500
Capacity (Watts): 1350
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 208 ± 1%/220 ± 1%/230 ± 1%/240 ± 1%
Output Voltage Setting: Configurable
On Battery Frequency (Hz): 50 ± 0.5% 60 ± 0.5%
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Outlet(s) – Total: 4
Outlet Type: IEC C13 x4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time (ms): 0
BATTERY
Runtime at Half Load (min): 14
Runtime at Full Load (min): 4
Typical Recharge Time (Hours): 5
Maximum Charging Curre
| SKU | OLS1500E |
|---|---|
| RoHS | Yes |
| Brand | CyberPower |
| Color | Black |
| Model | OLS1500E |
| Phase | Single Phase |
| Series | Online S (Premium) |
| Category | Power and Rack Equipment |
| Features | Online (Double Conversion) topology Pure Sine Wave output Zero transfer time ECO Mode EMI/RFI filtration Surge and spike protection Phone/Fax/Modem/DSL/Network protection LCD status display Smart Battery Management (SBM) Emergency Power Off (EPO) port Optional SNMP/HTTP remote management PowerPanel management software Generator compatible Extended Battery Module (EBM) support |
| Warranty | 2 years (manufacturer listings vary by region) |
| LCD Panel | Yes (multifunction LCD) |
| USB Ports | 1 (HID-compliant) |
| Description | The CyberPower OLS1500E is an online double-conversion (true on-line) tower UPS delivering 1500VA / 1350W of pure sine wave output for mission-critical equipment such as servers, NAS, DVR/surveillance, and network infrastructure. It features zero transfer time, ECO mode (>95% efficiency), LCD multi-function display, EMI/RFI filtration, phone/network protection (RJ11/RJ45), an EPO port, USB/serial connectivity and optional SNMP/HTTP remote management. Internal sealed lead-acid batteries (3 x 12V/9Ah) provide short-term runtime with support for up to three external battery modules to extend runtime as needed. |
| Form Factor | Tower |
| Outlet Type | IEC C13 x 4 |
| Weight (kg) | 15.3 |
| Crest Factor | 3:1 |
| LCD Controls | Mode setting, alarm setting, input/output, battery setting |
| Power Factor | 0.9 |
| Sub-Category | Power Equipment |
| UPS Topology | Online Double Conversion (Double-conversion) |
| Weight (lbs) | 33.73 |
| Capacity (VA) | 1500 |
| Product Title | CyberPower OLS1500E Online Double-Conversion UPS - 1500VA / 1350W (Tower) |
| Certifications | CE EAC LOA |
| Datasheet Link | https://www.cyberpower.com/global/en/File/GetCyberpowerFileByDocId/DS-18080031-01 |
| Outlets - Total | 4 |
| Capacity (Watts) | 1350 |
| Power Cord Length | 1.8 m (5.9 ft) |
| What's in the box | OLS1500E UPS Power Cord USB Cable Phone Line User's Manual |
| Battery Technology | Sealed Lead Acid (VRLA) |
| EMI/RFI Filtration | Yes |
| ECO Mode Efficiency | >95% |
| On Battery Waveform | Pure Sine Wave |
| Operating Elevation | 0 ~ 1,500 m (0 ~ 4,921 ft) |
| Overload Protection | Internal current limiting, circuit breaker, fuse; automatic/manual bypass |
| Input Connector Type | IEC C14 |
| Input Frequency (Hz) | 50 / 60 Hz (auto-sensing) ±10% detection; on battery ±0.5 Hz (configurable) |
| Serial / RS-232 Port | 1 (listed on some specs) |
| Shipping Weight (kg) | 16.8 |
| Shipping Weight (lbs) | 37.04 |
| Enclosure Construction | Metal |
| Max EBM Quantity (pcs) | 3 |
| Dimensions (WxHxD) (mm) | 151 x 225 x 394 |
| LCD Information Display | Operation type, power status, battery status, load status, fault & warning, events/log |
| Output Voltage(s) (Vac) | 208, 220, 230, 240 (configurable) |
| Rated Input Current (A) | 6.5 |
| Phone/Network Protection | RJ11/RJ45 (combo) 1-in, 1-out |
| Shipping Dimensions (mm) | 241 x 313 x 510 |
| User-replaceable Battery | No (internal); service/repair per manual |
| Input Voltage Range (Vac) | 160 ~ 300 (other region listings show 120~280 / 180~280 ranges) |
| Maximum Input Current (A) | 10 |
| On-Battery Frequency (Hz) | 50 / 60 (auto-sensing or configurable) ±0.5% |
| Power Management Software | PowerPanel Business Edition |
| Storage Temperature (°C) | -20 ~ 50 |
| Runtime at Full Load (min) | 4–5 |
| Runtime at Half Load (min) | 14 |
| Surge Suppression (Joules) | 440 |
| Typical Transfer Time (ms) | 0 |
| Audible Noise (dBA) at 1.5m | 45 |
| Dimensions (WxHxD) (inches) | 5.94 x 8.86 x 15.51 |
| Input Nominal Voltage (Vac) | 230 Vac ±10% |
| Operating Temperature (°C) | 0 ~ 40 |
| SNMP/HTTP Remote Management | Optional (RMCARD205 or equivalent) |
| Maximum Charging Current (A) | 1 |
| Shipping Dimensions (inches) | 9.5 x 12.32 x 20.08 |
| Cold Start (Start On Battery) | Yes |
| Storage Relative Humidity (%) | 10 ~ 90 |
| Typical Recharge Time (Hours) | 5 |
| Adjustable Voltage Range (Vac) | See datasheet for load-dependent ranges (e.g., 110~300/120~300/140~300/160~300 per configuration) |
| Emergency Power Off (EPO) Port | Yes |
| Internal Battery Configuration | (3) x 12V / 9Ah (series, nominal 36V) |
| Smart Battery Management (SBM) | Yes |
| Detachable Power Cord Plug Type | Schuko (region-specific) |
| Operating Relative Humidity (%) | 20 ~ 90 |
| Harmonic Distortion (Linear Load) | <3% THD |
| Online Thermal Dissipation (BTU/hr) | 420 |
| Outlets - Battery & Surge Protected | 4 |
| Maximum Power (alternative listings) | 1200 W (regional listing) |
| Harmonic Distortion (Non-linear Load) | <5% THD |
| Compatible Extended Battery Module (EBM) | BPSE36V45A (per manufacturer) |
CyberPower Online S 1500VA/1350W (10A) Tower Online UPS - (OLS1500E) -2 Yr Adv Replacement Warranty 2 yr Int. Batteries
