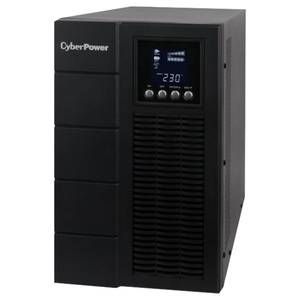

CyberPower Online S 2000VA/1800W (10A) Tower Online UPS - (OLS2000E) -2 Yr Adv Replacement Warranty 2 Yr Int. Batteries OLS2000E
SKU
224091
Brand
MPN
OLS2000E
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,131.00
Buy Now And Earn 1131 Reward Points!
QUICK OVERVIEW
2 yr Int. Batteries OLS2000E
GENERAL
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
INPUT
Generator Compatibility: Yes
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 160~300
Input Frequency (Hz): 50 ± 10 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 9
Input Power Factor: 0.98
Input Connector Type: IEC C20
Detachable Power Cord Plug Type: AU
OUTPUT
Capacity (VA): 2000
Capacity (Watts): 1800
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 208 ± 1%/220 ± 1%/230 ± 1%/240 ± 1%
Output Voltage Setting: Configurable
On Battery Frequency (Hz): 50 ± 0.5% 60 ± 0.5%
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Outlet(s) – Total: 5
Outlet Type: Hardwire Terminal Block x1/IEC C13 x4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time (ms): 0
BATTERY
Runtime at Half Load (min): 15
Runtime at Full Load (min): 5
Typical Recharge Time (Hours):
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
INPUT
Generator Compatibility: Yes
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 160~300
Input Frequency (Hz): 50 ± 10 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 9
Input Power Factor: 0.98
Input Connector Type: IEC C20
Detachable Power Cord Plug Type: AU
OUTPUT
Capacity (VA): 2000
Capacity (Watts): 1800
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 208 ± 1%/220 ± 1%/230 ± 1%/240 ± 1%
Output Voltage Setting: Configurable
On Battery Frequency (Hz): 50 ± 0.5% 60 ± 0.5%
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Outlet(s) – Total: 5
Outlet Type: Hardwire Terminal Block x1/IEC C13 x4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time (ms): 0
BATTERY
Runtime at Half Load (min): 15
Runtime at Full Load (min): 5
Typical Recharge Time (Hours):
| MPN | OLS2000E |
|---|---|
| SKU | OLS2000E |
| UPC | 4712856271324 4712364148286 |
| Brand | CyberPower |
| Model | OLS2000E |
| Notes | Where sources differed on specific numeric tolerances and runtime values, reported ranges are included (sourced values: multiple vendor listings and manufacturer's product pages). |
| Phase | Single Phase |
| Runtime | Full_Load: 5–6 minutes (reported values) Half_Load: 15–16 minutes (reported values) |
| Category | Power and Rack Equipment |
| Features | Pure sine wave output Online (double conversion) topology Zero transfer time ECO mode Extended Battery Module support Smart Battery Management (SBM) EMI/RFI filtration Surge and spike protection Phone/fax/modem/DSL/network protection LCD status display PowerPanel Business management software Emergency Power Off (EPO) port Optional SNMP/HTTP remote management Generator compatible Overload protection Automatic/manual/automatic bypass |
| Physical | Color: Black Weight_kg: 23.8 Shipping_Weight_kg: 26 Dimensions_in_WxHxD: { "Depth_in": 16.38, "Width_in": 7.72, "Height_in": 12.27 } Dimensions_mm_WxHxD: { "Depth": 416, "Width": 196, "Height": 337 } Enclosure_Construction: Metal Shipping_Dimensions_mm_WxHxD: { "Depth": 519, "Width": 295, "Height": 458 } |
| Warranty | 3 years (reported) |
| Output_THD | Linear_Load: <3% Non-linear_Load: <5% |
| Capacity_VA | 2000 |
| Description | The CyberPower OLS2000E is an online double-conversion (On-line) tower UPS providing pure sine wave output and zero transfer time for mission-critical equipment such as servers, NAS, DVR/surveillance systems and infrastructure. Featuring ECO mode (>95% efficiency), LCD status display, PowerPanel Business management, optional SNMP/HTTP remote management, EPO port and support for extended battery modules (EBM), the OLS2000E delivers reliable power protection with expandable runtime. |
| Form Factor | Tower |
| Part Number | OLS2000E |
| Battery_Type | Lead Acid (internal, expandable via EBM) |
| Power_Factor | Input: 0.98 Output: 0.9 |
| Sub-Category | Power Equipment |
| UPS Topology | Online Double Conversion (On-line) |
| Environmental | Operating_Humidity_%: 20 ~ 90 (non-condensing) Operating_Elevation_m: 0 ~ 1500 Storage_Temperature_C: -20 ~ 50 Operating_Temperature_C: 0 ~ 40 Audible_Noise_dBA_at_1.5m: 45 Online_Thermal_Dissipation_BTU_per_hr: 666 |
| Outlets_Total | 5 |
| Product Title | CyberPower OLS2000E Online Double-Conversion UPS 2000VA / 1600W (Tower) |
| Audible_Alarms | Battery mode Low battery Overload Overcharge Overheat UPS fault Replace battery |
| Capacity_Watts | 1600 |
| Datasheet_Link | https://www.cyberpower.com/global/en/File/GetCyberpowerFileByDocId/DS-18080031-01 |
| Input_Frequency | 50 Hz ±10% / 60 Hz ±10% (auto-sensing) |
| Output_Waveform | Pure Sine Wave |
| Battery_Quantity | 6 |
| Max_EBM_Quantity | 3 |
| Start_On_Battery | Yes |
| Output_Connectors | IEC_C13: 4 Hardwire_Terminal_Block: 1 |
| Software_Included | PowerPanel Business Edition |
| EMI_RFI_Filtration | Yes |
| Battery_Capacity_Ah | 7 Ah (reported) |
| ECO_Mode_Efficiency | >95% |
| Input_Voltage_Range | 160 ~ 300 V (detailed adjustable ranges provided) |
| Output_Crest_Factor | 3:1 |
| Overload_Protection | Internal current limiting, circuit breaker, fuse; specified trip characteristics for line/battery/bypass modes |
| Battery_Cell_Voltage | 12 V (each) |
| Input_Connector_Type | IEC C20 (detachable power cord; Schuko plug reported on cord) |
| Battery_Total_Voltage | 72 V (6 x 12 V) |
| Input_Nominal_Voltage | 230 V ±10% |
| Input_Rated_Current_A | 9 |
| Max_Charging_Current_A | 1 |
| Battery_Smart_Management | Smart Battery Management (SBM) |
| Battery_User_Replaceable | No (internal) |
| Output_Frequency_Setting | Configurable |
| Output_Voltage_Tolerance | configurable (sources report ±1% to ±3%) |
| Phone_Network_Protection | RJ11/RJ45 (1-in, 1-out combo) / network/phone line protection reported |
| Surge_Suppression_Joules | 440 |
| Typical_Transfer_Time_ms | 0 |
| Input_Power_Cord_Length_m | 1.8 |
| Output_Voltage_Selectable | 208 V 220 V 230 V 240 V |
| Output_Frequency_on_Battery | 50 Hz ±0.5% / 60 Hz ±0.5% |
| Typical_Recharge_Time_hours | 5 |
| Certifications_and_Compliance | CE EAC LOA RoHS |
| Management_and_Communications | USB: HID-compliant USB (Type B) RS232: Reported on some listings (DB-9) EPO_Port: Yes (Emergency Power Off) LCD_Panel: Multifunction LCD (operation, power, battery, load, fault/log info; mode/settings adjustable) SNMP_HTTP: Optional (with RMCARD205 or equivalent) PowerManagement_Software: PowerPanel Business (recommended) |
| Compatible_Extended_Battery_Module | BPSE72V45A |
CyberPower Online S 2000VA/1800W (10A) Tower Online UPS - (OLS2000E) -2 Yr Adv Replacement Warranty 2 yr Int. Batteries
