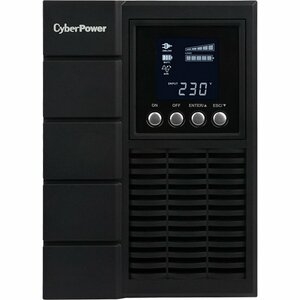

CyberPower Online S Series 1000VA/800W Tower Online UPS(OLS1000E) - 2 Yr.Adv Replacement Warranty Including 2 Yr Internal Battery OLS1000E
SKU
210320
Brand
MPN
OLS1000E
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$615.00
Buy Now And Earn 615 Reward Points!
QUICK OVERVIEW
2 yr Internal Battery OLS1000E
GENERAL
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
INPUT
Generator Compatibility: Yes
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 160~300
Input Frequency (Hz): 50 ± 10 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 4.5
Input Power Factor: 0.98
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU
OUTPUT
Capacity (VA): 1000
Capacity (Watts): 900
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 208 ± 1%/220 ± 1%/230 ± 1%/240 ± 1%
Output Voltage Setting: Configurable
On Battery Frequency (Hz): 50 ± 0.5% 60 ± 0.5%
Overload Protection: Internal Current Limiting, Circuit Breaker,Fuse
Outlet(s) – Total: 4
Outlet Type: IEC C13 x4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time (ms): 0
BATTERY
Runtime at Half Load (min): 15
Runtime at Full Load (min): 5
Typical Recharge Time (Hours): 5
Maximum Charging Current
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
INPUT
Generator Compatibility: Yes
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 160~300
Input Frequency (Hz): 50 ± 10 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 4.5
Input Power Factor: 0.98
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU
OUTPUT
Capacity (VA): 1000
Capacity (Watts): 900
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 208 ± 1%/220 ± 1%/230 ± 1%/240 ± 1%
Output Voltage Setting: Configurable
On Battery Frequency (Hz): 50 ± 0.5% 60 ± 0.5%
Overload Protection: Internal Current Limiting, Circuit Breaker,Fuse
Outlet(s) – Total: 4
Outlet Type: IEC C13 x4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time (ms): 0
BATTERY
Runtime at Half Load (min): 15
Runtime at Full Load (min): 5
Typical Recharge Time (Hours): 5
Maximum Charging Current
| SKU | OLS1000E |
|---|---|
| Brand | CyberPower |
| Input | Input_Connector: IEC C14 Input_Frequency_Hz: 50 ±10 / 60 ±10 Input_Power_Factor: 0.98 Power_Cord_Length_m: 1.8 Detachable_Plug_Type: Schuko (x1) Rated_Input_Current_A: 4.5 Input_Voltage_Range_Vac: 160 ~ 300 Input_Frequency_Detection: Auto-sensing Nominal_Input_Voltage_Vac: 230 ±10% Adjustable_Voltage_Range_by_Load: See manufacturer's specification |
| Model | OLS1000E |
| Output | Outlet_Type: IEC C13 (x4) Crest_Factor: 3:1 Outlets_Total: 4 THD_Linear_Load: <3% On_Battery_Waveform: Pure Sine Wave Overload_Protection: Internal current limiting, circuit breaker, fuse; mode-specific trip characteristics THD_Non_Linear_Load: <5% Output_Voltage_Setting: Configurable On_Battery_Frequency_Hz: 50 ±0.5 / 60 ±0.5 On_Battery_Voltages_Vac: [ 208, 220, 230, 240 ] Output_Frequency_Setting: Configurable Typical_Transfer_Time_ms: 0 On_Battery_Voltage_Tolerance: ±1% |
| Battery | Battery_Type: Sealed Lead Acid (VRLA) Max_EBM_Quantity: 3 Start_On_Battery: Cold start supported User_Replaceable: No (internal) Battery_Capacity_Ah: 7 Smart_Battery_Management: Yes Runtime_Full_Load_minutes: 5 Runtime_Half_Load_minutes: 15 Battery_Voltage_per_Cell_V: 12 Typical_Recharge_Time_Hours: 5 Number_of_Internal_Batteries: 3 Compatible_Extended_Battery_Module: BPSE36V45A |
| Category | Power and Rack Equipment |
| Features | Online (double-conversion) topology Pure sine wave output Zero transfer time Generator compatible ECO mode EMI/RFI filtration Surge and spike protection Phone/fax/modem/DSL/network protection Emergency Power Off (EPO) port Multifunction LCD readout PowerPanel management software Smart Battery Management (SBM) SNMP/HTTP remote management (optional) |
| Physical | Color: Black Cooling: Active (built-in fan), smart fan speed control Weight_kg: 13.1 Dimensions_mm: { "Depth": 394, "Width": 151, "Height": 225 } Noise_dBA_at_1.5m: 45 Shipping_Weight_kg: 14.6 Enclosure_Construction: Metal Shipping_Dimensions_mm: { "Depth": 510, "Width": 241, "Height": 313 } |
| Topology | Online Double Conversion |
| Warranty | 2 Year |
| Waveform | Pure Sine Wave |
| Capacity_VA | 1000 |
| Description | CyberPower OLS1000E is a tower online double-conversion UPS that provides seamless pure sine wave power and zero transfer time for mission-critical equipment (servers, NAS, surveillance, telecom and network gear). It features generator compatibility, ECO mode (>95% efficiency), EMI/RFI and surge protection, a multifunction LCD, USB/serial connectivity, EPO port and optional SNMP/HTTP remote management. The unit includes internal VRLA batteries (3 cells), supports optional external battery modules for extended runtime, and protects connected devices through four IEC C13 outlets. |
| Form_Factor | Tower |
| Sub-Category | Power Equipment |
| Environmental | Operating_Elevation_m: 0 ~ 1500 Storage_Temperature_C: -20 ~ 50 Operating_Temperature_C: 0 ~ 40 Storage_Humidity_%_NonCondensing: 10 ~ 90 Operating_Humidity_%_NonCondensing: 20 ~ 90 Online_Thermal_Dissipation_BTU_per_hr: 342 |
| Product Title | CyberPower OLS1000E Online S Series 1000VA Tower UPS (800W) |
| Capacity_Watts | 800 |
| Zero_Transfer_Time | Yes |
| Power_Factor_Output | 0.9 |
| Generator_Compatible | Yes |
| Included_Accessories | OLS1000E UPS Power cord USB cable Phone line User manual |
| Compatible_Accessories | BPSE36V45A (EBM) RELAYIO500 RELAYIO501 RMCARD205 RMCARD400 ENVIROSENSOR (optional) |
| Energy_Saving_Technology | ECO Mode (efficiency >95%) |
| Certifications_and_Compliance | CE EAC LOA RoHS |
| Management_and_Communications | EPO_Port: Yes LCD_Panel: Multifunction LCD (status, settings, event log) USB_Ports: HID-compliant USB (1) Serial_Ports: RS232 (1) Audible_Alarms: [ "Battery mode", "Low battery", "Overload", "Overcharge", "Overheat", "UPS fault", "Replace battery" ] Power_Management_Software: PowerPanel Business / PowerPanel BE SNMP_HTTP_Remote_Monitoring: Yes (with optional RMCARD205/RMCARD400) |
| Surge_Protection_and_Filtering | EMI_RFI_Filtration: Yes Phone_Network_Protection: RJ11/RJ45 combo (1-in, 1-out) Surge_Suppression_Joules: 440 |
CyberPower Online S Series 1000VA/800W Tower Online UPS(OLS1000E) - 2 Yr.Adv Replacement Warranty including 2 yr Internal Battery
