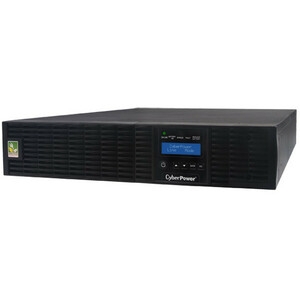

CyberPower Online Series 1500VA/1350W (10A) Rack/Tower Online UPS - (OL1500ERTXL2U) -2 Yr Adv Replacement Warranty 2 Yr Int. Batteries OL1500ERTXL2U
SKU
210321
Brand
MPN
OL1500ERTXL2U
Warranty
Standard Manufacturer's Warranty
$1,523.00
Buy Now And Earn 1523 Reward Points!
QUICK OVERVIEW
Replacement Warranty 2 yr Int. Batteries OL1500ERTXL2U
GENERAL
UPS Topology: Online Double Conversion
Efficiency > 93%
Active PFC Compatibility: Yes
INPUT
Generator Compatibility: Yes
Nominal Input Voltage (Vac): 200/208/220/230/240
Input Voltage Range (Vac): 190 ~ 300
Input Frequency (Hz): 50 ± 10 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 7.5
Input Power Factor: 0.99
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: IEC C13
OUTPUT
Capacity (VA): 1500
Capacity (Watts): 1350
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 200 ± 2%/208 ± 2%/220 ± 2%/230 ± 2%/240 ± 2%
Output Voltage Setting: Configurable
On Battery Frequency (Hz): 50 ± 0.5% 60 ± 0.5%
ECO Mode Voltage Tolerance: ± 10%/ ± 15%
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) – Total: 8
Outlet Type: IEC C13 x 8
Outlet(s) - Battery & Surge Protected: 8
Outlet(s) – Critical Load (CL): 4
Outlet(s) – Non –Critical Load (NCL): 4
Typical Transfer Time (ms): 0
BATTERY
Runtime at Ha
UPS Topology: Online Double Conversion
Efficiency > 93%
Active PFC Compatibility: Yes
INPUT
Generator Compatibility: Yes
Nominal Input Voltage (Vac): 200/208/220/230/240
Input Voltage Range (Vac): 190 ~ 300
Input Frequency (Hz): 50 ± 10 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 7.5
Input Power Factor: 0.99
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: IEC C13
OUTPUT
Capacity (VA): 1500
Capacity (Watts): 1350
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 200 ± 2%/208 ± 2%/220 ± 2%/230 ± 2%/240 ± 2%
Output Voltage Setting: Configurable
On Battery Frequency (Hz): 50 ± 0.5% 60 ± 0.5%
ECO Mode Voltage Tolerance: ± 10%/ ± 15%
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) – Total: 8
Outlet Type: IEC C13 x 8
Outlet(s) - Battery & Surge Protected: 8
Outlet(s) – Critical Load (CL): 4
Outlet(s) – Non –Critical Load (NCL): 4
Typical Transfer Time (ms): 0
BATTERY
Runtime at Ha
| SKU | OL1500ERTXL2U |
|---|---|
| Brand | CyberPower |
| Color | Black |
| Model | OL1500ERTXL2U |
| Category | Power and Rack Equipment |
| Features | Generator compatible Smart Battery Management (SBM) ECO Mode (energy-saving) EMI and RFI filtration LCD status display (detachable) Emergency Power Off (EPO) port Overload protection Surge and spike protection Zero transfer time Rack/tower convertible Hot-swappable batteries Extended Battery Module (EBM) support |
| Material | Not specified |
| Topology | Online (Double Conversion) |
| Warranty | Manufacturer advanced replacement warranty (listings indicate 2 years product / 2 years internal batteries; one listing references 3 years product / 2 years internal batteries) |
| Weight_kg | 16.5 kg |
| Capacity_VA | 1500 VA |
| Description | The CyberPower OL1500ERTXL2U is a 1500 VA / 1350 W online double-conversion (true online) UPS designed for servers, networking equipment, workstations and other mission-critical applications. Rack/tower convertible (2U) form factor with zero transfer time delivers consistent pure sine wave power. Features include hot-swappable internal batteries, Smart Battery Management (SBM) to extend battery life, ECO Mode for improved energy efficiency, detachable LCD status panel, Emergency Power Off (EPO) port, RJ11/RJ45 data-line surge protection, USB and serial connectivity, and an SNMP/HTTP remote management option via an SNMP slot. Supports extended runtime with external battery modules (EBMs). Includes PowerPanel power management software for monitoring and orderly shutdown. |
| Form Factor | Rack/Tower (convertible) |
| Outlet_Type | IEC 60320 C13 (8) |
| Rack_Height | 2U |
| Sub-Category | Power Equipment |
| Dimensions_mm | Depth: 430 mm Width: 433 mm Height: 88 mm |
| Input_Voltage | 110 V AC 220 V AC |
| Product Title | CyberPower OL1500ERTXL2U 1500VA (1350W) Online Double-Conversion Rack/Tower UPS (2U, 8x C13) |
| Transfer_Time | Zero transfer time (online double-conversion) |
| Capacity_Watts | 1350 W |
| Certainty_Note | All specifications compiled from multiple seller/manufacturer listings. Values reflect published product listings; warranty details show conflicting entries and both are reported above. |
| Input_Connector | IEC 60320 C14 |
| Extended_Runtime | Supports external Extended Battery Modules (EBM) |
| Battery_Chemistry | Sealed Lead Acid (maintenance-free) |
| Number_of_Outlets | 8 |
| Receptacle_Detail | 8 x IEC 60320 C13 |
| Dataline_Protection | RJ11 (phone/modem/DSL) RJ45 (network) |
| Plug_Connector_Type | IEC 60320 C14 (input) |
| Included_Accessories | Rackmount rail Rackmount ears Screw kit Power cord USB cable Serial cable Phone line User's manual PowerPanel Business Edition software (CD or download) Product registration card |
| Hot_Swappable_Batteries | Yes |
| Input_Frequency_Range_Hz | 40–70 Hz |
| Certifications_and_Awards | CE GreenPower UPS technology (energy efficiency) |
| Output_Voltage_selectable | 208 V AC 220 V AC 230 V AC 240 V AC |
| Number_of_Batteries_internal | 3 |
| Management_and_Communications | USB: Yes Serial: Yes Software: PowerPanel Business/PowerPanel Management Software included SNMP_Slot: Yes (SNMP/HTTP remote management optional) |
| Typical_Backup_Time_Full_Load | 3 minutes |
| Typical_Backup_Time_Half_Load | 9 minutes |
| Typical_Battery_Recharge_Time | 5 hours |
| Optional_and_Compatible_Accessories | RBP0074 BPE36V60ART2US MBP20HVIEC6 RCCARD100 RELAYIO500 RELAYIO501 RMCARD205 RMCARD400 RWCCARD100 RWCCARD101 |
CyberPower Online Series 1500VA/1350W (10A) Rack/Tower Online UPS - (OL1500ERTXL2U) -2 Yr Adv Replacement Warranty 2 yr Int. Batteries
