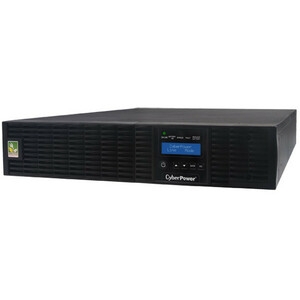

CyberPower Online Series 2000VA/1800W (10A) Rack/Tower Online UPS - (OL2000ERTXL2U) -2 Yr Adv Replacement Warranty 2 Yr Int. Batteries OL2000ERTXL2U
SKU
224083
Brand
MPN
OL2000ERTXL2U
Warranty
Standard Manufacturer's Warranty
$2,028.00
Buy Now And Earn 2028 Reward Points!
QUICK OVERVIEW
Replacement Warranty 2 yr Int. Batteries OL2000ERTXL2U
UPS Topology: Double-Conversion
Energy Saving: ECO Mode Efficiency > 93%
Active PFC compatible: Yes
Input Voltage: 230-240Vac
Plug Type: IEC C14
Output VA: 2000
Output Watts: 1800
Battery Runtime at Half Load (min): 18
Battery Runtime at Full Load (min): 6
Battery Type: Sealed Lead-Acid
Battery Size: 12V/9AH
Battery Quantity: 6
Battery Typical Recharge Time: 5 Hour
LCD Control Panel: 22 different settings options via the UPS Configure menu
Form Factor: Rack/Tower
Energy Saving: ECO Mode Efficiency > 93%
Active PFC compatible: Yes
Input Voltage: 230-240Vac
Plug Type: IEC C14
Output VA: 2000
Output Watts: 1800
Battery Runtime at Half Load (min): 18
Battery Runtime at Full Load (min): 6
Battery Type: Sealed Lead-Acid
Battery Size: 12V/9AH
Battery Quantity: 6
Battery Typical Recharge Time: 5 Hour
LCD Control Panel: 22 different settings options via the UPS Configure menu
Form Factor: Rack/Tower
| LCD | Type: Detachable LCD panel Present: Yes Controls: [ "Mode setting", "Alarm setting", "Input & output", "Battery setting", "Communication", "Event & log", "Security", "Language" ] Displays: [ "Operation type", "Power status", "Battery status", "Load status", "Fault & warning", "Event & log" ] |
|---|---|
| SKU | OL2000ERTXL2U |
| Brand | CyberPower |
| Model | OL2000ERTXL2U |
| Category | Power and Rack Equipment |
| Warranty | Battery_Years: 2 Product_Years: 2 |
| Weight_kg | 32 |
| Indicators | Power On Line Mode Battery Mode Bypass Mode Battery Capacity Low Battery Overload UPS Fault Wiring Fault Replace Battery |
| Weight_lbs | 70.4 |
| Capacity_VA | 2000 |
| Description | The CyberPower OL2000ERTXL2U is a 2000 VA / 1800 W online (double-conversion) UPS in a 2U rack/tower form factor designed for servers, networking equipment, workstations and other mission-critical applications. It provides pure sine wave output with zero transfer time, ECO mode for energy savings, generator compatibility and hot-swappable battery cartridge (RBP) support for extended runtime. Advanced monitoring and control include a detachable LCD panel, USB/HID and serial connectivity, dry contact/EPO port and optional SNMP/HTTP remote management (RMCARD205). Smart Battery Management (SBM), EMI/RFI and surge protection (RJ11/45 line protection), PowerPanel Business software and compatibility with external EBMs provide flexible deployment and maintenance. |
| Form_Factor | Rackmount / Tower (2U) |
| Battery_Type | Hot-swappable battery cartridge (RBP) |
| Connectivity | USB_HID: 1 Serial_Port: 1 Dry_Contact_With_Relay: Yes Emergency_Power_Off_EPO: Yes Power_Management_Software: PowerPanel Business SNMP_HTTP_Remote_Monitoring: Optional (RMCARD205) |
| Crest_Factor | 3:1 |
| Sub-Category | Power Equipment |
| UPS Topology | Online (Double Conversion) |
| Dimensions_in | Depth: 23.6 Width: 17 Height: 3.5 |
| Dimensions_mm | Depth: 600 Width: 433 Height: 88 |
| Outlets_Total | 9 |
| Product Title | CyberPower OL2000ERTXL2U 2000VA / 1800W Online Rack/Tower UPS (2U) |
| Rack_Height_U | 2 |
| Capacity_Watts | 1800 |
| Certifications | CE BSMI C-Tick RoHS |
| Outlet_Details | IEC C13: 8 IEC C19: 1 |
| Input_Frequency | 50 ±10% / 60 ±10% |
| Output_Waveform | Pure Sine Wave |
| Overload_Limits | Line_Mode: 105–125% for 1 min; 125–150% for 10 sec Battery_Mode: 105–130% for 10 sec; 130–150% for 2 sec |
| Typical_Runtime | Full_Load: 6.5 minutes Half_Load: 20 minutes |
| Max_EBM_Quantity | 10 |
| Start_On_Battery | Yes |
| Outlet_Assignment | Critical_Load_Outlets: 5 Non_Critical_Load_Outlets: 4 |
| Storage_Elevation | 0 ~ 15,000 m (0 ~ 49,213 ft) |
| EMI_RFI_Filtration | Yes |
| Input_Power_Factor | 0.99 |
| Shipping_Weight_kg | 39.5 |
| Harmonic_Distortion | Linear_Load: THD < 3% Non_Linear_Load: THD < 5% |
| Input_Voltage_Range | 190 ~ 300 Vac |
| Operating_Elevation | 0 ~ 3,000 m (0 ~ 9,843 ft) |
| Output_Power_Factor | 0.9 |
| Overload_Protection | Internal current limiting, circuit breaker |
| Power_Cord_Length_m | 3 |
| Shipping_Weight_lbs | 86.9 |
| Included_Accessories | Rackmount rail Rackmount ears Screw kit Power cord USB cable Serial cable Phone line User manual Product registration card |
| Input_Connector_Type | IEC C14 |
| On_Battery_Frequency | 50 ±0.5% / 60 ±0.5% Hz |
| Input_Nominal_Voltage | 200 208 220 230 240 |
| Rated_Input_Current_A | 10 |
| Storage_Temperature_C | -15 ~ 45 |
| Storage_Temperature_F | 5 ~ 113 |
| Typical_Transfer_Time | 0 ms (zero transfer time) |
| Enclosure_Construction | Metal |
| Shipping_Dimensions_in | Depth: 34.6 Width: 22.2 Height: 9.4 |
| Shipping_Dimensions_mm | Depth: 880 Width: 565 Height: 240 |
| Generator_Compatibility | Yes |
| Nominal_Output_Voltages | 200 Vac ±2% 208 Vac ±2% 220 Vac ±2% 230 Vac ±2% 240 Vac ±2% |
| Operating_Temperature_C | 0 ~ 40 |
| Operating_Temperature_F | 32 ~ 104 |
| Efficiency_Energy_Saving | ECO Mode |
| Phone_Network_Protection | RJ11/RJ45 combo, 1-in / 1-out |
| Smart_Battery_Management | Yes |
| Surge_Suppression_Joules | 1335 |
| Audible_Noise_dBA_at_1_5m | 55 |
| Battery_Cartridge_Details | RBP_Voltage: 72 V Cells_per_RBP: 6 |
| Battery_Cartridge_Quantity | 1 |
| Typical_Recharge_Time_Hours | 5 |
| Storage_Relative_Humidity_pct | 0 ~ 95 |
| Detachable_Power_Cord_Plug_Type | IEC C13 (detachable) |
| Operating_Relative_Humidity_pct | 0 ~ 90 |
| Compatible_Extended_Battery_Module | BPE72V60ART2US |
| Online_Thermal_Dissipation_BTU_per_hr | 759 |
CyberPower Online Series 2000VA/1800W (10A) Rack/Tower Online UPS - (OL2000ERTXL2U) -2 Yr Adv Replacement Warranty 2 yr Int. Batteries
