The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.

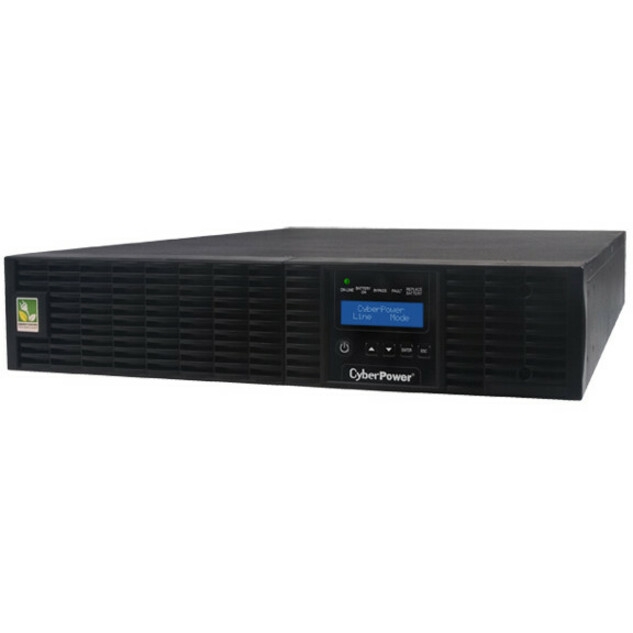

Model OL3000ERTXL2U
Capacity(VA/W) 3000VA / 2700W
Typology Online (Double Conversion)
Form Factor Rackmount / Tower (Convertible)
Energy-Saving Technology Yes, ECO Mode Efficiency ? 93%
Input
Voltage Range 120~139Vac for 0~25% Load
140~159Vac for 0~50% Load
160~179Vac for 0~75% Load
180~280Vac for 0~100% Load
Frequency Range 40~70Hz
Input Plug Type IEC C20
Output
Voltage Range Pure Sinewave at 200, 208, 220, 230, 240Vac (Configurable) ?2%
Frequency Range 50 / 60Hz (Auto-Sensing or Configurable) ?0.25Hz
Transfer Time (Typical) 0ms
Overload Protection Line Mode? 105~125% Load for 1 min, 126~150% Load for 10 sec
Battery Mode? 105~130% Load for 10 sec, 131~150% Load for 2 sec
Short Circuit Protection UPS Output Cut Off Immediately
Surge Protection and Filtering
Lightning / Surge Protection Yes
DSL/Phone/Fax/Modem protection RJ11/RJ45(One In/One Out)
Physical
Receptacles (8) IEC C13, (1) IEC C19
Dimensions(H x W x D)(mm) 88x433x600
Weight(kg) 31
Battery
Sealed Maintenance Free Lead Acid Battery 12V / 9AH x 6
Hot-Swappable Yes
Typical Recharge Time 5 Hours
Runtimes
Half load-Full load (mins) 10/3
Status Indication
Indicators Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery
Audible Alarms Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery
Multi-Function LCD Readout Yes
Communication
Power Management Software PowerPanel® Business Edition
Management
Self-Test Yes
Auto-Charge/Auto-Restart Yes
Auto-Overload Recovery Yes
Cold Start(DC Start) Yes
COM Interface (1) Serial Port (RS232), (1) USB Port, (1) Relay Out, (1) EPO
SNMP/HTTP Capable Optional
Features & Benefits?
2U Rack Space
Pure Sinewave Output
Online (Double Conversion) UPS Topology
Rack/Tower Convertible Configurations
EMI, RFI, Surge and Lightning Spike Protection
Critical Load Outlets
Phone/Fax/Modem/DSL/Network Protection
Auto-Restart/Auto-Charge
Emergency Power Off (EPO) Port
Multifunction LCD Readout
Rotatable LCD Indicator
USB & Serial Connectivity Port
Extended Runtime (XL) Models
Hot-Swappable Battery Packs
Dual Input
Smart Fan Speed Control By Load Level
Economy Mode setting
Smart Battery Management(SBM)
Remote Control/Wall-Mountable LCD panel
Generator Mode setting
SNMP/HTTP Remote Management Capability (Optional)
PowerPanel® Business Edition Software
