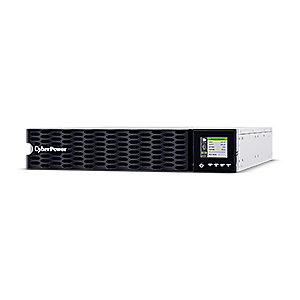

CyberPower Online Series 6000VA/6000W Rack/Tower Online UPS - 2U - 12* 12V/7Ah - Built-in Equalisation Module (Eqm)- (OL6KERTHD) -2 Yr Wty OL6KERTHD
SKU
286488
Brand
MPN
OL6KERTHD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$5,704.00
Buy Now And Earn 5704 Reward Points!
CyberPower Online Series 6000VA/6000W Rack/Tower Online UPS - 2U - 12* 12V/7AH - Built-in Equalisation Module (EQM) for battery life extension, support EBM x 10pcs, Outlets 6 x C13 4 x C19 PDU - 2 Yrs Adv. Replacement WTY - Incl Rail kit
| EAN | 4712856275919 |
|---|---|
| SKU | OL6KERTHD |
| Brand | CyberPower |
| Color | Black / Grey |
| Model | OL6KERTHD |
| Display | Tiltable, color LCD (automatically rotatable in tower orientation) |
| Outlets | 4 × IEC C13, 2 × IEC C19, 1 × hardwired terminal block (total 7 outlets; configurable critical/non-critical groups) |
| Topology | Online (Double Conversion) |
| Warranty | 3-year manufacturer warranty (including batteries) (reported) |
| Capacity VA | 6000 VA |
| Description | The CyberPower OL6KERTHD is a high-density, online double-conversion UPS delivering 6000 VA / 6000 W (PF 1.0) of clean, pure-sine power for servers, networking, telecom, security and storage equipment. The 2U rack/tower-convertible chassis features hot-swappable sealed lead-acid battery packs (144 V nominal) and supports external Extended Battery Modules (EBMs) to extend runtime. It provides generator compatibility, ECO mode for improved efficiency (up to ~96–97%), automatic tiltable/rotating color LCD for status and configuration, and comprehensive remote management via USB, RS-232 and Ethernet (SNMP/HTTP). Built-in protection includes surge suppression, EMI/RFI filtering, overload protection and an EPO interface. PowerPanel management software and PowerPanel Business compatibility enable local and networked monitoring and graceful shutdown. |
| Form Factor | Rackmount / Tower convertible (2U) |
| Max Current | 32 A |
| Battery Type | Sealed Lead Acid (VRLA) |
| Crest Factor | 3:1 |
| Power Factor | 1.0 |
| Battery Model | RBP0144 (reported) |
| Product Title | CyberPower OL6KERTHD 6kVA/6kW Online Double-Conversion Rack/Tower UPS (2U) |
| Recharge Time | Approximately 4 hours |
| Transfer Time | 0 ms |
| Weight (unit) | 42 kg |
| Acoustic Noise | 43–66 dBA (depending on load) |
| Capacity Watts | 6000 W |
| Certifications | CE EAC RCM RoHS ENERGY STAR |
| Output Voltage | Configurable 200 / 208 / 220 / 230 / 240 VAC (±2%) |
| Input Frequency | 50/60 Hz |
| Output Waveform | Pure sine |
| Heat Dissipation | 1613 BTU/h (reported) |
| Hot-Swap Battery | Yes |
| Housing Material | Metal |
| Output Frequency | 50/60 Hz (user-configurable, ±0.5% reported) |
| Country of Origin | China (reported) |
| THD (linear load) | < 3% |
| Input Power Factor | 0.99 |
| Operating Altitude | 0 to 3000 m |
| Input Voltage Range | Configurable 200–240 VAC ±2% (wider 180–280 VAC reported by some sources) |
| Protection Features | Surge suppression EMI/RFI noise filtering Overload protection (circuit breaker/current limiting) EPO support |
| Storage Temperature | -5 to 45 °C |
| Surge Energy Rating | 2430 J |
| Dimensions (W×H×D) | 433 × 86.5 × 720 mm |
| Included Accessories | Rackmount rail Rackmount ears Terminal cover Screw kit USB cable Serial cable User's manual |
| Battery Configuration | 12 cells, 144 V nominal, hot-swappable battery packs |
| Efficiency (ECO Mode) | Up to ~96–97% |
| Operating Temperature | 0 to 40 °C |
| THD (non-linear load) | < 5% |
| Non-operating Altitude | Up to 4500 m |
| Software Compatibility | PowerPanel / PowerPanel Business |
| Generator Compatibility | Yes |
| Storage Relative Humidity | 0% to 95% |
| Pre-installed Network Card | RMCARD205 (reported on some sources) |
| Management & Communications | USB RS-232 Ethernet (SNMP/HTTP) Emergency Power Off (EPO) |
| Operating Relative Humidity | 0% to 90% |
| Typical Runtime (Full Load) | Reported values vary (approx. 1.4–2.4 minutes depending on source and configuration) |
| Typical Runtime (Half Load) | Approximately 4.9 minutes (reported) |
| Connected Equipment Guarantee | $300,000 (reported, applicable regions) |
| Extended Battery Modules (EBM) | Supported (reports indicate up to 10 EBMs) |
| Manufacturer Part Number (MPN) | OL6KERTHD |
| Package Weight / Shipping Weight | Approximately 52–53 kg (reported) |
| Alternate / Additional Part Numbers | DE-1070351 Article Number: D-7759603000 |
CyberPower Online Series 6000VA/6000W Rack/Tower Online UPS - 2U - 12* 12V/7AH - Built-in Equalisation Module (EQM)- (OL6KERTHD) -2 Yr WTY
