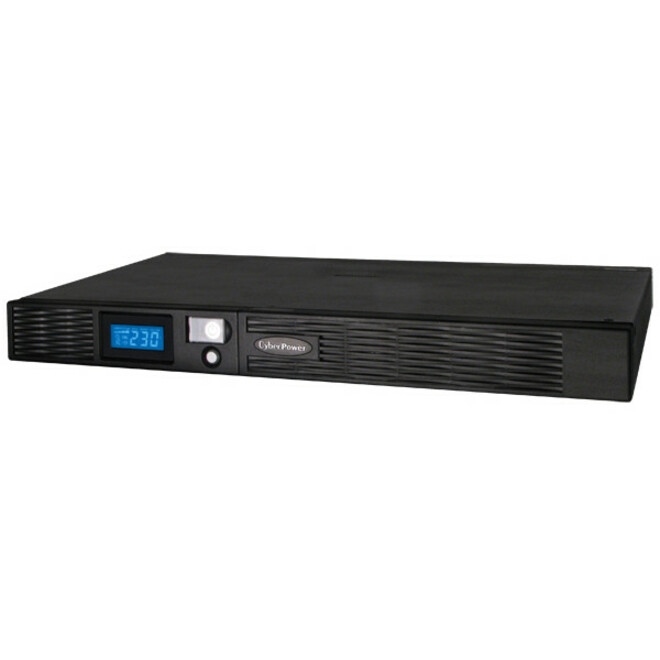

CyberPower Pro Rack Series LCD 1000VA / 670W (10A) 1U Line Interactive UPS - (Pr1000Elcdrt1U)- 3 Yrs Adv. Rep & 2yrs On Int. Battery(No Rail Kit In The Box) PR1000ELCDRT1U
SKU
126787
Brand
MPN
PR1000ELCDRT1U
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $727.00 Regular Price $836.00
Buy Now And Earn 727 Reward Points!
GENERAL
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPSâ„¢ Bypass Technology
Active PFC Compatibility: Yes
INPUT
Nominal Input Voltage (Vac): 220/230/240
Input Voltage Range (Vac): 160 ~ 286
Adjustable Voltage Range (Vac): 150 ~ 300 Vac
Input Frequency (Hz): 50 ± 3 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU/IEC C14
Power Cord Length (ft.): 10/6
Power Cord Length (m.): 3.05/1.83
OUTPUT
Capacity (VA): 1000
Capacity (Watts): 670
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 220 ± 5%/230 ± 5%/240 ± 5%
On Battery Frequency (Hz): 50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting
Outlet(s) – Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 6
Outlet(s) – Critical Load (CL): 2
Outlet(s) – Non –Critical Load (NCL): 4
Typical Transfer Time (ms)
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPSâ„¢ Bypass Technology
Active PFC Compatibility: Yes
INPUT
Nominal Input Voltage (Vac): 220/230/240
Input Voltage Range (Vac): 160 ~ 286
Adjustable Voltage Range (Vac): 150 ~ 300 Vac
Input Frequency (Hz): 50 ± 3 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU/IEC C14
Power Cord Length (ft.): 10/6
Power Cord Length (m.): 3.05/1.83
OUTPUT
Capacity (VA): 1000
Capacity (Watts): 670
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 220 ± 5%/230 ± 5%/240 ± 5%
On Battery Frequency (Hz): 50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting
Outlet(s) – Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 6
Outlet(s) – Critical Load (CL): 2
Outlet(s) – Non –Critical Load (NCL): 4
Typical Transfer Time (ms)
| MPN | PR1000ELCDRT1U |
|---|---|
| SKU | PR1000ELCDRT1U |
| ASIN | B008V24RJY |
| Brand | CyberPower |
| Input | Input Frequency: 50 ± 3 Hz / 60 ± 3 Hz Power Cord Length: 1.83 m (6 ft) Input Voltage Range: 160 ~ 286 Vac Rated Input Current: 10 A Input Connector Type: IEC C14 Nominal Input Voltage: 220 / 230 / 240 Vac Adjustable Voltage Range: 150 ~ 300 Vac Input Frequency Detection: Auto-sensing Detachable Power Cord Plug Type: IEC C14 x1 |
| Model | PR1000ELCDRT1U |
| Phase | Single Phase |
| Output | Outlet_Type: IEC C13 x6 Outlets_Total: 6 On Battery Voltages: 220 ±5% / 230 ±5% / 240 ±5% Overload_Protection: Internal current limiting On Battery Frequency: 50 ±0.1% / 60 ±0.1% Outlets_Critical_Load: 2 Typical Transfer Time: 4 ms Outlets_Non_Critical_Load: 4 Outlets_Battery_and_Surge_Protected: 6 |
| Battery | RBP_Quantity: 1 Hot_Swappable: Yes Start_On_Battery: Yes User_Replaceable: Yes Runtime_Full_Load: 5 minutes Runtime_Half_Load: 15.5 minutes Typical_Recharge_Time: 6 hours Battery_Cell_Composition: Sealed Lead Acid Replacement_Battery_Pack: RBP0027 |
| Category | Power and Rack Equipment |
| EAN_GTIN | 4712364141393 |
| Features | Line-interactive topology Pure sine wave output Automatic Voltage Regulation (Double Boost / Single Buck) GreenPower UPS energy-saving technology Hot-swappable, user-replaceable batteries Emergency Power Off (EPO) port Multifunction LCD status display USB (HID) and RS-232 communications Optional SNMP/HTTP remote management (RMCARD205) Surge, spike, EMI and RFI protection Critical / non-critical load outlet grouping Overload protection (internal current limiting) PowerPanel Business power management software |
| Physical | Color: Black Weight_kg: 18 Weight_lbs: 40 Dimensions_WxHxD_in: 16.93 x 1.73 x 19.29 in Dimensions_WxHxD_mm: 430 x 44 x 490 mm Enclosure_Construction: Metal Installed_Rack_Height_U: 1U Rackmount_Ears_or_Brackets: Included |
| Shipping | Shipping_Weight_kg: 21.9 Shipping_Weight_lbs: 48.18 Shipping_Dimensions_in: 21.5 x 6.2 x 24 in Shipping_Dimensions_mm: 540 x 158 x 610 mm |
| Warranty | Battery_Warranty_Years: 2 Product_Warranty_Years: 2 |
| Capacity_VA | 1000 VA |
| Description | The CyberPower PR1000ELCDRT1U is a 1 kVA (670 W) line-interactive UPS with pure sine wave on-battery output and automatic voltage regulation (Double Boost / Single Buck). Designed for rack or tower installation (1U), it provides power protection for servers, networking equipment and peripherals with a multifunction LCD, hot-swappable batteries, Emergency Power Off (EPO) port and six IEC C13 outlets (2 designated critical, 4 non-critical). Management options include a USB (HID) port, RS-232 and optional SNMP/HTTP remote management via RMCARD205. Typical run time is approximately 15.5 minutes at half load and 5 minutes at full load; replacement battery pack: RBP0027. |
| Form Factor | Rackmount / Tower convertible (1U) |
| Power Factor | 0.67 |
| Product Type | Line-interactive UPS |
| Sub-Category | Power Equipment |
| UPS Topology | Line-interactive |
| Environmental | Storage_Elevation: 0 ~ 15,000 m (0 ~ 49,213 ft) Operating_Elevation: 0 ~ 3,000 m (0 ~ 9,843 ft) Storage_Temperature_C: -15 ~ 45 °C Storage_Temperature_F: 5 ~ 113 °F Operating_Temperature_C: 0 ~ 40 °C Operating_Temperature_F: 32 ~ 104 °F Storage_Relative_Humidity: 0 ~ 95% Online_Thermal_Dissipation: 72 BTU/hr Operating_Relative_Humidity: 0 ~ 95% |
| Product Title | CyberPower PR1000ELCDRT1U 1kVA / 670W Line-Interactive Rack/Tower UPS (1U) |
| Capacity_Watts | 670 W |
| What's_in_the_box | PR1000ELCDRT1U UPS Rackmount ears / brackets Power cords (x4) USB A-B cable (x1) Serial (DB-9) cable (x1) Emergency Power-Off (EPO) cable (x1) PowerPanel Business software / user manual |
| On-battery Waveform | Pure Sine Wave |
| Automatic Voltage Regulation | Double Boost, Single Buck |
| Related_Accessories_Optional | RMCARD205 (SNMP/HTTP remote management) Replacement battery pack: RBP0027 |
| Certifications_and_Compliance | RoHS: Yes Certifications: [ "CE", "C-Tick", "EAC" ] |
| Management_and_Communications | LCD_Panel: Yes (multifunction) Serial_Port: RS-232 (DB-9) Audible_Alarms: [ "Battery Mode", "Low Battery", "Overload", "Overcharge", "Overheat" ] LED_Indicators: [ "Power On" ] HID_Compliant_USB_Port: 1 LCD_Display_Information: [ "Operation Type", "Power Status", "Battery Status", "Load Status", "Fault & Warning" ] LCD_Settings_and_Control: [ "Alarm Setting", "Input & Output", "Battery Setting" ] Power_Management_Software: PowerPanel Business Management_Cables_Included: { "EPO_Cable": "x1", "USB_Cable": "x1 (A-B)", "Power_Cord": "x4", "Serial_Cable": "x1 (DB-9)" } SNMP_HTTP_Remote_Monitoring: Yes (with optional RMCARD205) Emergency_Power_Off_EPO_Port: Yes |
| Surge_Protection_and_Filtering | EMI_RFI_Filtration: Yes Surge_Suppression_Joules: 810 |
CyberPower PRO Rack Series LCD 1000VA / 670W (10A) 1U Line Interactive UPS - (PR1000ELCDRT1U)- 3 Yrs Adv. Rep & 2yrs on Int. Battery(No rail kit in the box)
