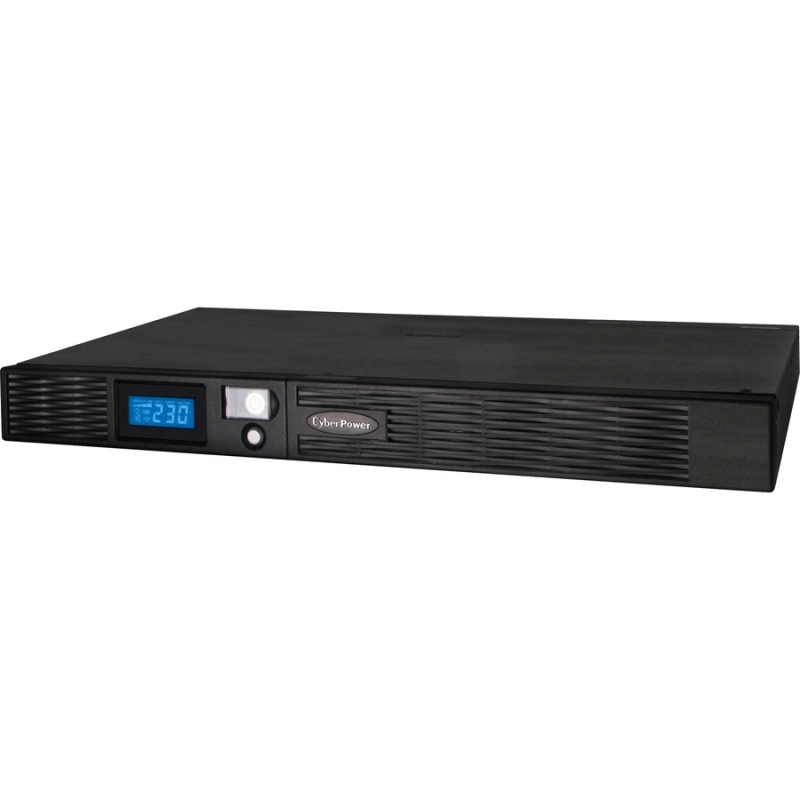

CyberPower Pro Rack Series LCD 750VA / 500W 1U Line Interactive UPS-(Pr750Elcdrt1U)- 3 Yrs Adv. Rep & 2yrs On Int. Battery(No Rail Kit In The Box) PR750ELCDRT1U
SKU
173997
Brand
MPN
PR750ELCDRT1U
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$712.00
Buy Now And Earn 712 Reward Points!
QUICK OVERVIEW
. Battery
GENERAL
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPSâ„¢ Bypass Technology
Active PFC Compatibility: Yes
INPUT
Nominal Input Voltage (Vac): 220/230/240
Input Voltage Range (Vac): 160 ~ 286
Adjustable Voltage Range (Vac): 150 ~ 300 Vac
Input Frequency (Hz): 50 ± 3 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU/IEC C14
Power Cord Length (ft.): 10/6
Power Cord Length (m.): 3.05/1.83
OUTPUT
Capacity (VA): 750
Capacity (Watts): 500
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 220 ± 5%/230 ± 5%/240 ± 5%
On Battery Frequency (Hz): 50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting
Outlet(s) – Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 6
Outlet(s) – Critical Load (CL): 2
Outlet(s) – Non –Critical Load (NCL): 4
Typical Transfer Time (ms):
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPSâ„¢ Bypass Technology
Active PFC Compatibility: Yes
INPUT
Nominal Input Voltage (Vac): 220/230/240
Input Voltage Range (Vac): 160 ~ 286
Adjustable Voltage Range (Vac): 150 ~ 300 Vac
Input Frequency (Hz): 50 ± 3 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU/IEC C14
Power Cord Length (ft.): 10/6
Power Cord Length (m.): 3.05/1.83
OUTPUT
Capacity (VA): 750
Capacity (Watts): 500
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 220 ± 5%/230 ± 5%/240 ± 5%
On Battery Frequency (Hz): 50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting
Outlet(s) – Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 6
Outlet(s) – Critical Load (CL): 2
Outlet(s) – Non –Critical Load (NCL): 4
Typical Transfer Time (ms):
| Brand | CyberPower |
|---|---|
| Model | PR750ELCDRT1U |
| Notes | Some source listings report regional variations in included power cords, warranty length and exact on-battery frequency tolerance. SNMP/HTTP remote management requires optional network card. |
| GTIN_EAN | 4712364146121 |
| Topology | Line-interactive |
| Warranty | 3 years (manufacturer warranty reported by multiple sources) |
| Self_Test | Yes |
| Weight_kg | 17.6 |
| Capacity_VA | 750 |
| Description | Professional 1U rack/tower-convertible line-interactive UPS providing 750 VA / 500 W of protected power with pure sine wave output and automatic voltage regulation (AVR). Designed for servers, networking equipment, VoIP and mission-critical infrastructure, the unit features a multifunction LCD status display, GreenPower UPS energy-saving bypass technology, hot-swappable sealed lead-acid batteries (4 × 6V 9Ah), Emergency Power Off (EPO) port, USB/Serial communications and optional SNMP/HTTP remote management. Typical runtimes are approximately 23 minutes at half load and 7 minutes at full load; typical recharge time is 6 hours. Includes rackmount ears/brackets and PowerPanel Business Edition power management software. |
| Form_Factor | 1U Rack / Tower convertible |
| LCD_Display | Multifunction LCD readout (power/battery/AVR/load/battery level) |
| Output_Type | Pure Sine Wave |
| Battery_Type | Sealed lead-acid (maintenance-free) |
| Product Type | Line-interactive UPS |
| Dimensions_mm | Depth: 490 Width: 430 Height: 44 |
| Product Title | CyberPower PR750ELCDRT1U 750VA / 500W 1U Rack/Tower Line-Interactive UPS (Pure Sine Wave) |
| Rack_Height_U | 1 |
| Audible_Alarms | On Battery Low Battery Overload |
| Capacity_Watts | 500 |
| Communications | USB (A-B cable) Serial (DB-9) COM interface |
| Product Family | Professional Rackmount / Professional Rackmount LCD Series |
| Input_Connector | IEC 320 C14 |
| Surge_Protection | Yes (surge & spike protection) |
| Status_Indicators | Power On Using Battery AVR Load Level Battery Level |
| EMI_RFI_Filtration | Yes |
| Network_Management | Optional SNMP/HTTP remote management (via optional card) |
| Output_Outlet_Type | IEC 320 C13 (x6) |
| Shipping_Weight_kg | 21.5 |
| Input_Voltage_Range | Adjustable 150 - 300 VAC (operating range reported 160 - 286 VAC) |
| Overload_Protection | Internal current limiting / internal circuitry limiting / resettable circuit breaker |
| Power_Cord_Length_m | 3.05 / 1.83 (reported cord lengths) |
| Included_Accessories | Rackmount ears / rackmount brackets Power cord(s) USB cable Serial (DB-9) cable Emergency Power-Off (EPO) cable PowerPanel® Business Edition software (CD or download) User manual |
| Outlet_Configuration | Critical_Load_Outlets: 2 Non_Critical_Load_Outlets: 4 |
| Output_Outlets_Total | 6 |
| Battery_Configuration | 4 × 6V 9Ah |
| Detachable_Plug_Types | AU / IEC C14 (reported) |
| Input_Frequency_Range | 50 / 60 Hz ±3 Hz (auto-sensing) |
| Input_Nominal_Voltage | 220 / 230 / 240 VAC |
| Runtime_Full_Load_min | 7 |
| Runtime_Half_Load_min | 23 |
| Hot_Swappable_Batteries | true |
| Auto_Charge_Auto_Restart | Yes |
| Emergency_Power_Off_Port | true |
| Energy_Saving_Technology | GreenPower UPS™ Bypass Technology |
| Replacement_Battery_Pack | RBP0027 (reported) |
| Typical_Transfer_Time_ms | 4 |
| User_Replaceable_Battery | true |
| On_Battery_Output_Voltage | Selectable 220 / 230 / 240 VAC ±5% |
| Power_Management_Software | PowerPanel® Business Edition |
| On_Battery_Output_Frequency | 50 / 60 Hz (typical ±1%) |
| Typical_Recharge_Time_hours | 6 |
| Automatic_Voltage_Regulation | Buck/Boost/Double Boost (AVR) |
CyberPower PRO Rack Series LCD 750VA / 500W 1U Line Interactive UPS-(PR750ELCDRT1U)- 3 Yrs Adv. Rep & 2yrs on Int. Battery(No rail kit in the box)
