CyberPower Pro Rack/Tower LCD 2200VA/2200W (15A)- 2U Line Interactive UPS(PR2200ERT2U) - 3 Yrs Adv. Rep. & 2 Yrs On Int. Battery PR2200ERT2U
SKU
295971
Brand
MPN
PR2200ERT2U
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,531.00
Buy Now And Earn 1531 Reward Points!
CyberPower PRO Rack/Tower LCD 2200VA/2200W (15A)- 2U Line Interactive UPS( PR2200ERT2U)- 3 Yrs Adv. Rep. & 2 Yrs on Int. Battery
| SKU | PR2200ERT2U |
|---|---|
| ASIN | B07MXK54HD |
| GTIN | 4712856277586 |
| Brand | CyberPower |
| Color | Black |
| Model | PR2200ERT2U |
| Runtime | Full Load (approx): 3 minutes Half Load (approx): 11.4 minutes |
| Category | Power and Rack Equipment |
| Waveform | Pure Sine Wave |
| USB Ports | HID Compliant USB: 1 |
| Capacity VA | 2200 |
| Description | The CyberPower PR2200ERT2U is a 2U rack/tower convertible, line-interactive UPS delivering 2200 VA / 2200 W with a unity (1.0) power factor. It provides Automatic Voltage Regulation (AVR) (Double Boost / Single Buck) and stabilized pure sine wave output to protect servers, networking equipment, storage and telecom devices. The unit includes a rotatable matrix LCD and LED indicators for intuitive status and configuration, Battery Management Technology, hot-swappable sealed lead-acid battery packs, quick two-phase charging (typical recharge ~3 hours), and tool-less battery replacement. Management and connectivity include a USB (HID) port, RS-232 serial port, EPO and dry-contact support, network surge protection (RJ45 1-in / 1-out), and optional SNMP/HTTP remote management via the RMCARD205. Additional features include EMI/RFI filtration, GreenPower UPS bypass energy-saving technology, 2430 J surge suppression, 4 ms typical transfer time, and broad certifications (CE, FCC Class B, UL, RCM, VCCI, ENERGY STAR, RoHS). |

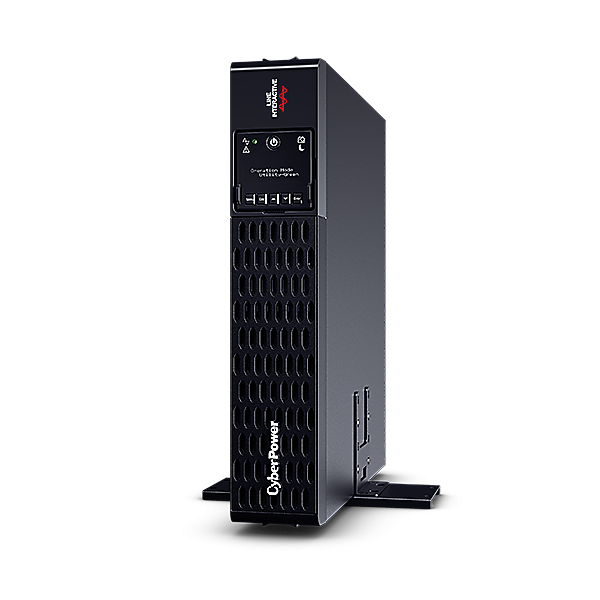

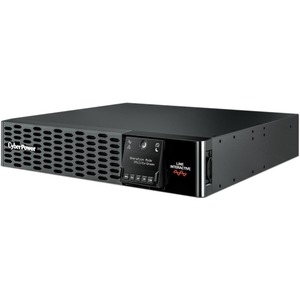

| Form Factor | Rackmount / Tower convertible |
| LCD Display | Type: Matrix LCD (rotatable) Information: [ "Operation Type", "Power Status", "Battery Status", "Load Status", "Fault & Warning", "Event & Log" ] |
| Part Number | PR2200ERT2U |
| Weight (kg) | 25.7 |
| Key Features | Line-interactive UPS topology Automatic Voltage Regulation (AVR) Pure sine wave output High output power factor (1.0) Battery Management Technology Hot-swappable, user-replaceable battery packs Tool-less battery replacement Rotatable multi-function matrix LCD EMI/RFI filtration and surge protection GreenPower bypass energy-saving technology Optional SNMP/HTTP remote management |
| Power Factor | 1 |
| Serial Ports | RS-232: 1 |
| Sub-Category | Power Equipment |
| UPS Topology | Line-Interactive |
| Weight (lbs) | 56.7 |
| Outlet Groups | Critical Load (CL): 4 Non-Critical Load (NCL): 4 |
| Product Title | CyberPower PR2200ERT2U 2.2kVA / 2200W Line-Interactive Rack/Tower UPS (2U) - 8 Outlets |
| Audible Alarms | Alarm when on battery Low battery alarm Overload Overcharge Overheat |
| Capacity Watts | 2200 |
| Efficiency (%) | 25% Load: 98.7 50% Load: 98.7 75% Load: 98.5 100% Load: 98.4 |
| LED Indicators | true |
| Outlets - Total | 8 |
| Outlets - Types | IEC C13: 6 IEC C19: 2 |
| Rack Height (U) | 2 |
| Noise Level (dBA) | 52.5 |
| Power Cord Length | 2.4 m |
| Battery Technology | Sealed Lead-Acid (VRLA) |
| EMI/RFI Filtration | true |
| Enclosure Material | Metal |
| Operating Altitude | 0 to 3000 m |
| Dry Contact / Relay | true |
| Management Software | PowerPanel Business (recommended) |
| Ethernet / LAN Ports | Optional management via RMCARD205 (SNMP/HTTP); network protection RJ45 1-in/1-out |
| Included Accessories | Rackmount rail Rackmount ears Rail kit / screw kit Power cord USB cable Serial cable EPO cable User's manual |
| Input Connector Type | IEC C20 |
| Input Frequency (Hz) | 50 / 60 (auto-sensing) |
| Shipping Weight (kg) | 33.5 |
| Dimensions (WxHxD) in | Depth: 16.2 Width: 17.1 Height: 3.4 |
| Dimensions (WxHxD) mm | Depth: 412 Width: 433 Height: 86.5 |
| Non-operating Altitude | 0 to 15000 m |
| Hot-Swappable Batteries | true |
| Network Protection RJ45 | 1-in, 1-out (surge/network protection) |
| Storage Temperature (C) | -15 to 45 |
| Transfer Time (typical) | 4 ms |
| Energy Saving Technology | GreenPower UPS bypass |
| Replacement Battery Pack | RBP0129 |
| Input Frequency Detection | Auto-sensing |
| Input Voltage Range (Vac) | 159 - 288 |
| Operating Temperature (C) | 0 to 40 |
| Surge Suppression (Joules) | 2430 |
| User Replaceable Batteries | true |
| Built-in Battery Management | true |
| Input Nominal Voltage (Vac) | 220 230 240 |
| Operating Relative Humidity | 0 to 95% (non-condensing) |
| Output Voltage Options (Vac) | 220 ± 5% 230 ± 5% 240 ± 5% |
| Remote Management (optional) | RMCARD205 (SNMP/HTTP) - optional |
| Certifications and Compliance | CE FCC Class B UL RCM VCCI ENERGY STAR RoHS |
| Adjustable Voltage Range (Vac) | 151 - 302 (reported on some documentation) |
| Emergency Power Off (EPO) Port | true |
| Shipping Dimensions (WxHxD) mm | Depth: 530 Width: 560 Height: 275 |
| Battery Recharge Time (typical) | 3 hours |
| Output Frequency on Battery (Hz) | 50 ± 1% 60 ± 1% |
| Replacement Battery Pack Details | Batteries per RBP: 4 RBP Quantity Supported: 1 Single Battery Capacity: 12 V, 9 Ah |
| Optional / Compatible Accessories | RMCARD205 SNMP/HTTP module BP48VP2U02 battery pack (listed as compatible in some documentation) ENVIROSENSOR (environmental sensor for use with RMCARD) PDU (various CyberPower PDU models listed as compatible) |
| Automatic Voltage Regulation (AVR) | Double Boost, Single Buck |
CyberPower PRO Rack/Tower LCD 2200VA/2200W (15A)- 2U Line Interactive UPS(PR2200ERT2U) - 3 Yrs Adv. Rep. & 2 Yrs on Int. Battery
