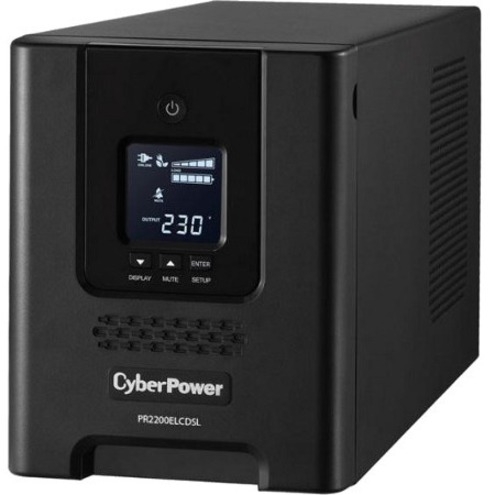

CyberPower Pro Series 2200VA Tower UPS With LCD(PR2200ELCDSL) - 3 Yrs Adv. Rep & 2 Yrs On Int. Battery PR2200ELCDSL
SKU
199849
Brand
MPN
PR2200ELCDSL
Warranty
Standard Manufacturer's Warranty
$1,127.00
Buy Now And Earn 1127 Reward Points!
GENERAL
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPSâ„¢ Bypass Technology
Energy Star Qualified: Yes
Active PFC Compatibility: Yes
INPUT
Nominal Input Voltage (Vac): 230
Input Voltage Range (Vac): 151 ~ 296
Input Frequency (Hz): 50 ± 3 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU/IEC C14
Power Cord Length (ft.): 10/6
Power Cord Length (m.): 3.05/1.83
OUTPUT
Capacity (VA): 2200
Capacity (Watts): 1980
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) – Total: 8
Outlet Type: IEC C13 x8
Outlet(s) - Battery & Surge Protected: 8
Typical Transfer Time (ms): 4
BATTERY
Runtime at Half Load (min): 12
Runtime at Full Load (min): 3
Typical Recharge Time (Hours): 8
Qu
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPSâ„¢ Bypass Technology
Energy Star Qualified: Yes
Active PFC Compatibility: Yes
INPUT
Nominal Input Voltage (Vac): 230
Input Voltage Range (Vac): 151 ~ 296
Input Frequency (Hz): 50 ± 3 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU/IEC C14
Power Cord Length (ft.): 10/6
Power Cord Length (m.): 3.05/1.83
OUTPUT
Capacity (VA): 2200
Capacity (Watts): 1980
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) – Total: 8
Outlet Type: IEC C13 x8
Outlet(s) - Battery & Surge Protected: 8
Typical Transfer Time (ms): 4
BATTERY
Runtime at Half Load (min): 12
Runtime at Full Load (min): 3
Typical Recharge Time (Hours): 8
Qu
| Brand | CyberPower |
|---|---|
| Color | Black |
| Model | PR2200ELCDSL |
| Notes | Optional management/accessory cards referenced as compatible/available (e.g., RMCARD205/RMCARD400/RCCARD100/RWCCARD100/RWCCARD101/RELAYIO500/RELAYIO501) per manufacturer documentation. |
| Ports | USB Serial (COM) EPO (Emergency Power Off) port |
| Features | Pure sine wave output Automatic Voltage Regulation (AVR) Hot-swappable / user-replaceable batteries EMI and RFI filtration Surge and spike protection Overload protection (internal current limiting & circuit breaker on utility; internal current limiting on battery) Energy Saving Technology Active PFC compatible Multi-function LCD status display (detachable) Audible alarms with mute |
| Material | Metal |
| Topology | Line-interactive |
| Warranty | 24 months |
| Waveform | Pure sine wave (on battery) |
| Weight_kg | 23.3 |
| Indicators | Multi-function LCD (battery status, load, input/output voltage, estimated runtime, etc.) |
| Capacity_VA | 2200 VA |
| Description | The CyberPower PR2200ELCDSL is a 2200VA / 1980W line-interactive tower UPS delivering pure sine wave output and Automatic Voltage Regulation (AVR) to protect servers, workstations, networking equipment and peripherals. It features a multi-function LCD status display, hot-swappable user-replaceable sealed lead-acid batteries (12V 9Ah x4), EMI/RFI filtration, surge/spike and overload protection, and Energy Saving Technology. Local management is available via USB and serial ports; remote management is possible with an optional SNMP/HTTP network card and PowerPanel management software. Additional hardware features include an EPO port, audible alarms with mute, detachable LCD panel, and multiple IEC outlets for protected load connections. |
| Form_Factor | Tower |
| Battery_Type | Sealed maintenance-free lead acid |
| Dimensions_mm | 221 x 170 x 432 (H x W x D) |
| Outlets_Count | 9 |
| Product Title | CyberPower PR2200ELCDSL 2200VA (1980W) Line-Interactive Tower UPS with LCD |
| Recharge_Time | 8 hours (typical) |
| Transfer_Time | 4 ms |
| Audible_Alarms | On battery, low battery, overload, fault (with mute button) |
| Capacity_Watts | 1980 W |
| Frequency_Range | 50/60 Hz ± 3 Hz (auto-sensing) |
| Input_Plug_Type | IEC 320 C20 |
| Outlets_Details | (8) IEC 320 C13 (1) IEC 320 C19 |
| Run_Time_Full_Load | 3 minutes |
| Run_Time_Half_Load | 12 minutes |
| Input_Voltage_Range | 160 VAC - 283 VAC |
| Management_Software | PowerPanel (Business/Enterprise editions) |
| Included_Accessories | Power cord USB cable Serial cable EPO cable User's manual PowerPanel software and cabling (included) |
| Battery_Configuration | 12V 9Ah x 4 |
| Battery_User_Replaceable | Yes |
| Manufacturer Part Number | PR2200ELCDSL |
| On_Battery_Output_Voltage | 230 VAC ± 5% |
| On_Battery_Output_Frequency | 50/60 Hz ± 1% (on battery) |
| SNMP_HTTP_Remote_Management | Optional (requires optional SNMP/HTTP network card) |
| Automatic Voltage Regulation | Double boost, single buck |
CyberPower PRO series 2200VA Tower UPS with LCD(PR2200ELCDSL) - 3 yrs Adv. Rep & 2 yrs on Int. Battery
