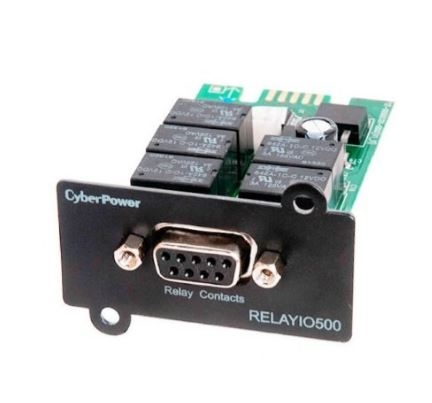

CyberPower Relay Card To Suite Pro/Online/Online S Series UPS (RELAYIO500) RC400/RELAYIO500
SKU
164051
Brand
MPN
RC400/RELAYIO500
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$148.00
Buy Now And Earn 148 Reward Points!
GENERAL
Power Dissipation (Watts): 1.35
Connector Type: DB9
Supports Plug-n-Play Installation: Yes
MANAGEMENT & COMMUNICATIONS
Shut Down UPS: Yes
Dry Contact Relay (pcs):5
PHYSICAL
Color: Black
Dimensions (WxHxD) (in.): 1.65 x 0.6 x 3.2
Dimensions (WxHxD) (mm.): 41.8 x 14.2 x 81
Weight (lbs.): 0.12
Weight (g.): 52
Power Dissipation (Watts): 1.35
Connector Type: DB9
Supports Plug-n-Play Installation: Yes
MANAGEMENT & COMMUNICATIONS
Shut Down UPS: Yes
Dry Contact Relay (pcs):5
PHYSICAL
Color: Black
Dimensions (WxHxD) (in.): 1.65 x 0.6 x 3.2
Dimensions (WxHxD) (mm.): 41.8 x 14.2 x 81
Weight (lbs.): 0.12
Weight (g.): 52
| MPN | RELAYIO500 |
|---|---|
| Brand | CyberPower |
| Color | Black |
| Model | RELAYIO500 |
| Notes | Specifications and compatibility consolidated from multiple reseller and manufacturer listings. Remains factual to provided sources. |
| Category | Power and Rack Equipment |
| Warranty | 3 Year Limited Warranty |
| Weight g | ≈50 g |
| Connector | 9-pin D-Sub (DB9) |
| Weight kg | 0.05 kg |
| Weight lb | 0.11 lb |
| Weight oz | 1.83 oz |
| Description | The CyberPower RELAYIO500 is a hot-swappable local relay I/O management card that provides UPS status monitoring and local management via five contact-closure outputs and one input contact closure for remote shutdown while on battery. It installs in compatible CyberPower Smart App UPS models with an expansion slot and interfaces via a single 9-pin D-Sub (DB9) serial port. Output relays are rated to 30 VDC / 125 VAC at 3 A (per relay). The card is RoHS compliant and is backed by a 3-year limited warranty. |
| Key Features | 5 relay output contact closures for UPS status/events 1 relay input contact closure for remote shutdown in battery mode DB9 (9-pin D-Sub) connector / serial interface Hot-swappable (plug-n-play) Interfaces with external alarms via DB9 Local UPS monitoring and event signaling RoHS compliant |
| Product Type | Relay I/O / UPS relay board (local management card) |
| Sub-Category | Power Equipment |
| Compatibility | OR Series UPS systems PR Series UPS systems PRO Series UPS (listed by some resellers) OL1000RTXL2U OL1000RTXL2UN OL1500RTXL2U OL1500RTXL2UN OL2200RTXL2U OL3000RTXL2U OL3000RTXL2UHV |
| Hot-Swappable | Yes |
| Product Title | CyberPower RELAYIO500 Relay I/O Card for UPS (5 Contact Closures, DB9) |
| Certifications | RoHS Compliant |
| Packaged Quantity | 1 |
| What's in the Box | RELAYIO500 card User manual / documentation |
| Operating Humidity | 0% to 95% (non-condensing) |
| Output Relay Rating | 30 VDC / 125 VAC, 3 A (per relay) |
| Storage Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Connection Port Type | Serial (DB9) |
| Dimensions (WxHxD) cm | 4.19 x 1.52 x 8.13 cm |
| Dimensions (WxHxD) in | 1.65 x 0.6 x 3.2 in |
| Dimensions (WxHxD) mm | 42 x 15 x 81 mm |
| Input Signal Contacts | 1 (remote shutdown in Battery Mode) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Contact Closure Outputs | 5 |
| Extended Warranty Option | WEXT5YR-ACC1A (listed as available option) |
| Alternate SKU/Part Number | RC400/RELAYIO500 1185501 |
| External Shutdown Voltage | 7.5 – 12 VDC |
CyberPower Relay Card to suite PRO/ONLINE/ONLINE S Series UPS (RELAYIO500)
