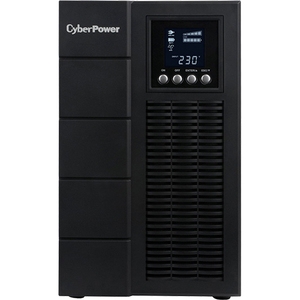

Cyberpower Systems Online S 3000va/ 2400w Tower Ups - 6* 12v/ 8.5ah - (4) Iec C13, (1)iec C19*1
SKU
219136
Brand
MPN
OLS3000E
Warranty
Standard Manufacturer's Warranty
$1,265.00
Buy Now And Earn 1265 Reward Points!
QUICK OVERVIEW
, Terminal Block - USB & Serial Port & SNMP Slot - 2 Yrs Adv. Repl OLS3000E
The Online S Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Features & Benefits：
- Pure Sinewave Output
- Online (Double Conversion) UPS Topology
- Tower Form Factor
- EMI, RFI, Surge and Lightning Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- Auto-Restart/Auto-Charge
- Emergency Power Off (EPO) Port
- Multifunction LCD Readout
- USB & Serial Connectivity Port
- Smart Fan Speed Control By Load Level
- Economy Mode setting
- Smart Battery Management(SBM)
- Generator Mode setting
- SNMP/HTTP Remote Management Capability (Optional)
- PowerPanel® Business Edition Software
- Equipment Protection Policy up to 100,000 Euros
| Model | OLS3000E |
| Capacity(VA/W) | 3000VA / 2700W |
| Typology | Online (Double Conversion) |
| Energy-Saving Technology | Yes, ECO Mode Efficiency > 95% |
| Input | |
| Voltage Range | 120~139Vac for 0~25% Load 140~159Vac for 0~50% Load 160~179Vac for 0~75% Load 180~280Vac for 0~100% Load |
| Input Type | IEC C20 |
| Frequency Range | 40~70Hz |
| Output | |
| UPS Outlets (Numbers) | (2+2) IEC C13, (1) IEC C19, Terminal Block |
| On Battery Output Voltage | Pure Sine Wave at 208, 220, 230, 240 Vac (Configurable) |
| On Battery Output Voltage Distortion (@Nominal Battery Voltage) | ≦3%(Linear Load), ≦5%(Non-Linear Load) |
| On Battery Output Frequency | 50 Hz / 60 Hz (Auto-Sensing or Configurable) ± 0.5% |
| Rated Power Factor | 0.9 |
| Transfer Time (Typical) | 0ms |
| Overload Protection | AC Mode: Warning only @ 110%>Load>105%, Transfer to bypass after 60sec @ 120%>Load>110%, Transfer to bypass immediately@ Load>120% Battery Mode: Warning only @ 110%>Load>105%, Shutdown after 10sec @ 120%>Load>110%, Shutdown immediately @ Load>120% Bypass Mode: Warning only @ 130%>Load>105%, Shutdown immediately @ Load>130% |
| Surge Protection and Filtering | |
| Surge Protection | Yes |
| DSL/Phone/Fax/Modem protection | RJ11/RJ45(One In/One Out) |
| Short Circuit Protection | UPS Output Cut off Immediately or Circuit Breaker Protection |
| Physical | |
| Dimensions(H x W x D)(mm) | 337 x 196 x 416 |
| Weight(kg) | 28.2 |
| Battery | |
| Sealed Maintenance Free Lead Acid Battery | (6) 12V / 9AH |
| Configurable External Battery Pack (Max.) | 3 |
| Typical Recharge Time | 5 |
| Runtimes | |
| Half load-Full load (mins) | 14/5 |
| Status Indication | |
| Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, ECO Mode,C/F Mode, Fault, Replace Battery |
| Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
| Communication | |
| Power Management Software | PowerPanel® Business Edition |
| Management | |
| Self-Test | Yes |
| Auto-Charge/Auto-Restart | Yes |
| Auto-Overload Recovery | Yes |
| Cold Start(DC Start) | Yes |
| Connectivity Ports | (1) Serial Port (RS232), (1) USB Port, (1) EPO/ROO |
| SNMP/HTTP Capable | Optional |
CYBERPOWER SYSTEMS Online S 3000VA/2400W Tower UPS - 6* 12V/8.5AH - (4) IEC C13, (1)IEC C19*1, Terminal Block - USB & Serial Port & SNMP Slot (optional RMCARD303) - 2 Yrs Adv. Replacement WTY
