CyberPower Systems Online S (15A) 3000VA/2700W Rack UPS - 12V/9Ah*6 - 8x Iec C13, 1x Iec C19 - USB & Serial Port & Snmp Slot (OLS3000ERT2Ua)- 2 Yrs Adv. Replace OLS3000ERT2Ua
SKU
292359
Brand
MPN
OLS3000ERT2Ua
Warranty
Standard Manufacturer's Warranty
$1,246.00
Buy Now And Earn 1246 Reward Points!
CyberPower Systems Online S (15A) 3000VA/2700W Rack UPS - 12V/9AH*6 - 8x IEC C13, 1x IEC C19 - USB & Serial Port & SNMP Slot (OLS3000ERT2Ua)Â - 2 Yrs Adv. Replacement WTY - Incl Rail kit
| EAN | 4712856273823 |
|---|---|
| MPN | OLS3000ERT2UA |
| SKU | OLS3000ERT2Ua |
| Brand | CyberPower |
| Color | Black |
| Model | OLS3000ERT2UA |
| Phase | Single Phase |
| Category | Power and Rack Equipment |
| Topology | Online Double-Conversion |

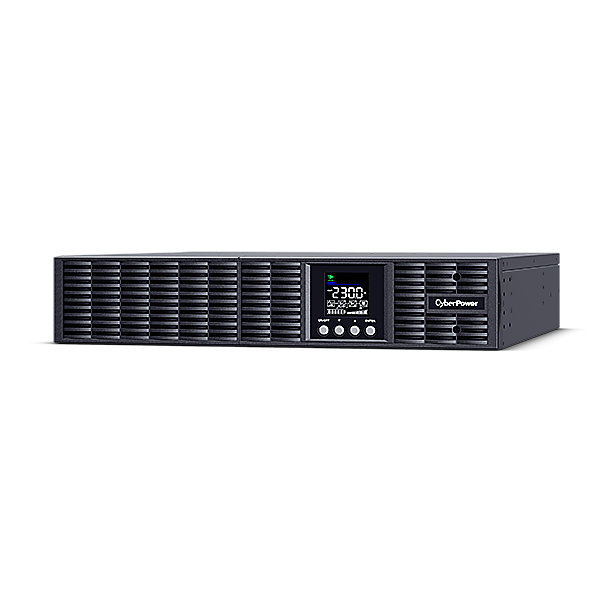

| Description | The CyberPower OLS3000ERT2UA is a high-performance online double-conversion UPS delivering 3000 VA / 2700 W of true sine wave power for mission-critical equipment in server rooms, data centers, surveillance and transportation systems. Rack/tower convertible (2U) with a color LCD for status and configuration. Provides generator compatibility, zero transfer time, ECO mode (>95% efficiency), automatic extended battery module (EBM) detection (supports up to 3 EBMs), variable-speed fans for thermal/noise management, and hot-swappable, user-replaceable battery packs (RBP0158). Management options include HID-compliant USB, dry-contact relay/EPO port and optional SNMP/HTTP cards for remote monitoring. Includes IEC C19 and C13 outlets for critical and non-critical loads, surge and EMI/RFI filtration, phone/network protection and multiple internal protection mechanisms. |
| Form Factor | Rack/Tower convertible (2U rackmount) |
| Sub-Category | Power Equipment |
| Capacity (VA) | 3000 VA |
| Product Title | CyberPower OLS3000ERT2UA 3000VA (2700W) Online Double-Conversion UPS, 2U Rack/Tower |
| Weight - Unit | 26.7 kg (58.8 lbs) |
| Acoustic Noise | 45 dBA at 1.5 m |
| Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery |
| Certifications | CE, EAC, TISI, ISO |
| RoHS Compliant | Yes |
| Input Connector | IEC C20 |
| Input Frequency | 50 ±10 Hz; 60 ±10 Hz (auto-sensing) |
| Internal Bypass | Automatic bypass; manual bypass supported |
| Shipping Weight | 31.3 kg (69.1 lbs) |
| Capacity (Watts) | 2700 W |
| Features Summary | Online double-conversion topology, pure sine wave output, generator compatible, zero transfer time, extended battery module auto-detection, critical/non-critical outlet groups, phone/network protection, variable-speed fans, PowerPanel management software, rack/tower convertible, ECO mode, overload and surge protection, EMI/RFI filtration, color LCD display, EPO port, optional SNMP/HTTP remote management |
| Management Ports | HID-compliant USB port (1), dry-contact relay, EPO port |
| Power Cord Length | 1.5 m |
| Remote Management | SNMP/HTTP remote management supported with optional RMCARD (e.g., RMCARD205 / RMCARD400) |
| EMI/RFI Filtration | Yes |
| Input Power Factor | 0.99 |
| Battery Type / Pack | Replacement Battery Pack: RBP0158 (internal battery pack); each RBP contains 6 cells (72 V pack) |
| Input Rated Current | 13 A |
| On Battery Waveform | Pure Sine Wave |
| Operating Elevation | 0 ~ 1,500 m (0 ~ 4,921 ft) |
| Output Power Factor | 0.9 |
| Overload Protection | Internal current limiting, circuit breaker, fuse (specified trip characteristics for line/battery/bypass modes) |
| Storage Temperature | -20 ~ 50 °C (-4 ~ 122 °F) |
| Variable Speed Fans | Yes (automatic multi-step thermal management) |
| Included Accessories | UPS module, rackmount rails, rackmount ears/rails and screw kit (as applicable), power cord, USB cable, phone/line cable, user's manual |
| Maximum EBM Quantity | Up to 3 |
| Battery Hot-swappable | Yes (qualified personnel only) |
| Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F) |
| Typical Transfer Time | 0 ms (zero transfer time) |
| Battery Quantity (RBP) | 1 RBP included (compatible EBMs available) |
| Enclosure Construction | Metal |
| Battery Smart Management | Smart Battery Management (SBM) |
| Battery User-replaceable | Yes |
| Phone/Network Protection | RJ11/RJ45 combo, 1-in / 1-out |
| Input Voltage Range (Vac) | 190 ~ 300 Vac |
| Installed Rack Height (U) | 2U |
| Power Management Software | PowerPanel Business (recommended) |
| Storage Relative Humidity | 10 ~ 90% (non-condensing) |
| Battery Voltage (Each RBP) | 72 V (pack) |
| Efficiency / Energy Saving | ECO Mode (efficiency >95%) |
| Surge Suppression (Joules) | 388 J |
| Battery Runtime - Full Load | 4.2 minutes (manufacturer spec) |
| Battery Runtime - Half Load | 13.1 minutes (manufacturer spec) |
| Dimensions (WxHxD) - Module | 438 x 88 x 610 mm (17.24 x 3.46 x 24.2 in) |
| Input Nominal Voltage (Vac) | 230 ±10% |
| Operating Relative Humidity | 5 ~ 95% (non-condensing) |
| Outlets - Types and Quantity | IEC C19 x2, IEC C13 x8 (total 10 outlets) |
| Output Voltage Options (Vac) | 208 ±1% / 220 ±1% / 230 ±1% / 240 ±1% |
| Thermal Dissipation (BTU/hr) | 911 BTU/hr (online) |
| Battery Typical Recharge Time | 4 hours |
| Output Frequency (On Battery) | 50 ±0.5 Hz / 60 ±0.5 Hz (configurable) |
| Input Adjustable Voltage Range | Configurable (see manufacturer spec for load-dependent ranges) |
| Detachable Power Cord Plug Type | Schuko (x1) |
| Battery Maximum Charging Current | 1.5 A |
| Outlets - Critical / Non-critical | 6 Critical (CL) / 4 Non-critical (NCL) |
| Optional / Replacement Accessories | BPSE72V40ART2U (EBM), MBP20HVIEC6, RELAYIO500, RELAYIO501, RMCARD205, RMCARD400 |
| Outlets - Battery & Surge Protected | 10 |
| Compatible Extended Battery Module (EBM) | BPSE72V40ART2U |
