CyberPower Xl Battery Expansion Pack 48VDC 60A 41cm For Pr1000Ertxl2U- (Bp48Vp2U01)-2 Yrs Adv. Replacement Wty BP48VP2U01
SKU
258232
Brand
MPN
BP48VP2U01
Warranty
Standard Manufacturer's Warranty
$737.00
Buy Now And Earn 737 Reward Points!
QUICK OVERVIEW
Replacement WTY BP48VP2U01
CyberPower XL Battery Expansion Pack 48VDC 60A 41cm for PR1000ERTXL2U- (BP48VP2U01)-2 Yrs Adv. Replacement WTY
| SKU | BP48VP2U01 |
|---|---|
| Brand | CyberPower |
| Color | Black |
| Model | BP48VP2U01 |
| Notes | Prop65 Warning: This product can expose you to chemicals including Styrene (ABS) and Bisphenol A (BPA). DC plug-and-play connectors: Supports daisy-chaining multiple EBMs |
| Amperage | 60 A |
| Category | Power and Rack Equipment |
| Features | Extends UPS runtime (EBM) Rack/Tower convertible (2U) Fast Charge / built-in charger Battery equalization technology Hot-swappable battery packs Toolless battery panel access User-replaceable batteries Metal enclosure for data center use |
| Material | Metal enclosure |
| Warranty | 3 Year Limited Warranty |
| DC Voltage | 48 VDC |

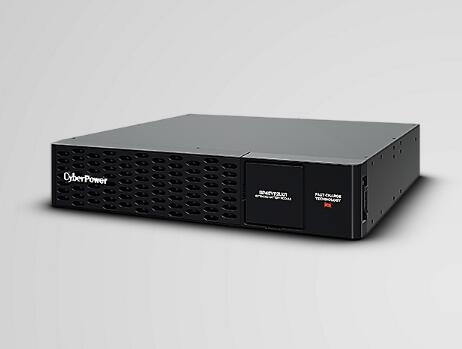

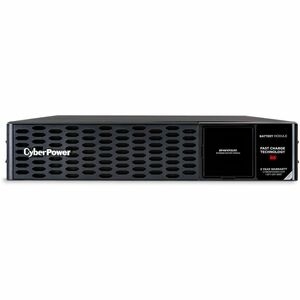

| Description | The CyberPower BP48VP2U01 is a 2U rack/tower convertible Extended Battery Module (EBM) that increases runtime for compatible CyberPower UPS systems. It contains eight 12V/7Ah sealed lead-acid batteries (48V nominal, 60A output) with hot-swappable, user-replaceable packs and toolless battery panel access for fast service. Built-in charger and Fast Charge Technology allow EBMs to charge directly from utility power to shorten recharge time. Battery equalization technology helps extend battery life. Designed for data center and critical applications with an industrial metal enclosure. Includes mounting hardware and connection cables. 3 Year limited warranty. |
| Form Factor | Rack/Tower convertible (2U) |
| Weight (kg) | 25.3 |
| Weight (lb) | 55.8 |
| Battery Type | Sealed Lead-Acid (SLA) |
| Manufacturer | Cyber Power Systems (USA) Inc. |
| Sub-Category | Power Equipment |
| Datasheet URL | https://dl4jz3rbrsfum.cloudfront.net/documents/CyberPower_DS_BP48VP2U01.pdf |
| Hot Swappable | Yes |
| Product Title | CyberPower BP48VP2U01 48V/60A 2U Rack/Tower Extended Battery Module (8 × 12V/7Ah SLA) |
| Certifications | CE RCM UL1778 / UL cUL FCC Class B VCCI |
| Output Current | 60 A |
| Output Voltage | 48 VDC |
| Input Plug Type | IEC-320 C14 |
| Rack Height (U) | 2U |
| User Manual URL | https://www.1stop.com/datasheets/cyberpower/BP48VP2U01-USERMANUAL.pdf |
| Battery Quantity | 8 |
| Built-in Charger | Yes |
| Storage Elevation | 0 – 50,000 ft (0 – 15,239 m) |
| What's in the box | Extended Battery Module Faceplate User Manual Rack Mounting Kit Tower Mounting Kit BM Cable 2 × IEC C13–C14 Cables |
| Input Voltage Range | 100 VAC – 240 VAC |
| Operating Elevation | 0 – 10,000 ft (0 – 3,048 m) |
| Rated Input Current | 10 A |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Battery Cell Voltage | 12 V |
| Shipping Weight (kg) | 11.11 |
| Shipping Weight (lb) | 24.5 |
| Battery Capacity (Ah) | 7 Ah |
| Input Frequency Range | 50 Hz – 60 Hz |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Typical Recharge Time | 6 Hours |
| Dimensions (WxHxD) (cm) | 43.43 x 8.64 x 41.15 |
| Dimensions (WxHxD) (in) | 17.1 x 3.4 x 16.2 |
| Dimensions (WxHxD) (mm) | 434 x 86 x 411 |
| Replacement Battery Pack | RB1270X4H RBP0128 |
| User Replaceable Battery | Yes |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Compatibility (UPS models) | PR750LCDRTXL2U PR750RTXL2U PR1000LCDRTXL2U PR1000RTXL2U PR1500LCDRTXL2UA PR750RTXL2UC PR1000RTXL2UC |
| Environmental Certification | RoHS Compliant |
| Operating Relative Humidity | 0 – 95% (non-condensing) |
| Shipping Dimensions (WxHxD) (cm) | 53.34 x 26.67 x 62.23 |
| Shipping Dimensions (WxHxD) (in) | 21.0 x 10.5 x 24.5 |
| Replacement Battery Pack Quantity | 2 |
