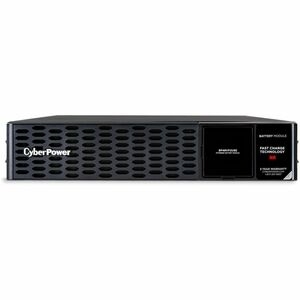

CyberPower Xl Battery Expansion Pack 48VDC 70A 50cm- Selected Models For Pr1500Ertxl2U/Pr2000Ertxl2U/Pr3000Ertxl2U- (Bp48Vp2U02)-2 Yrs Adv. Replacement Wty BP48VP2U02
SKU
253002
Brand
MPN
BP48VP2U02
Warranty
Standard Manufacturer's Warranty
$929.00
Buy Now And Earn 929 Reward Points!
QUICK OVERVIEW
(BP48VP2U02)-2 Yrs Adv. Replacement WTY BP48VP2U02
CyberPower XL Battery Expansion Pack 48VDC 70A 50cm- Selected Models for PR1500ERTXL2U/PR2000ERTXL2U/PR3000ERTXL2U- (BP48VP2U02)-2 Yrs Adv. Replacement WTY
| SKU | BP48VP2U02 |
|---|---|
| Brand | CyberPower |
| Color | Black |
| Model | BP48VP2U02 |
| Weight | Net_weight_kg: 30.03 Net_weight_lb: 66.2 Shipping_weight_kg: 36.47 Shipping_weight_lb: 80.4 |
| Battery | Features: [ "Battery Equalization Technology", "Fast Charge Technology", "Built-in charger" ] Quantity: 8 Chemistry: Sealed Lead-Acid (SLA) Cell Voltage: 12 V Cell Capacity: 9 Ah Hot Swappable: true User Replaceable: true Typical Recharge Time: 6 Hours Replacement Battery Cartridge: RB1290X4J Replacement Battery Cartridge Quantity: 2 |
| Amperage | 70 A |
| Category | Power and Rack Equipment |
| Features | 48 VDC / 70 A output 2U rack/tower convertible form factor 8 × 12 V / 9 Ah sealed lead-acid batteries Hot-swappable and user-replaceable batteries Built-in charger with Fast Charge Technology Battery Equalization Technology Toolless battery panel access Expandable (supports adding additional EBMs via DC plug-and-play connectors) |
| Material | Metal enclosure |
| Warranty | 3 Year Limited Warranty |
| DC Voltage | 48 VDC |
| Dimensions | Notes: Dimensions listed as W x H x D Depth_in: 19.7 Depth_mm: 500 Width_in: 17.1 Width_mm: 434 Height_in: 3.4 Height_mm: 86 |
| Rack Units | 2U |
| Description | The CyberPower BP48VP2U02 is a 2U rack/tower convertible Extended Battery Module (EBM) that increases UPS runtime for compatible CyberPower UPS systems. The unit delivers 48 VDC at 70 A using eight sealed lead-acid batteries (8 × 12 V, 9 Ah) with hot-swappable, user-replaceable packs and toolless battery-panel access. Integrated Fast Charge and Battery Equalization technologies and a built-in charger speed recharge and help extend battery life. Housed in a rugged metal enclosure, the BP48VP2U02 includes rack and tower mounting hardware, DC connection cable(s) and IEC power cables, and is backed by a limited warranty. Compliant with UL1778, cUL, CE, FCC Class B, VCCI, RCM and RoHS. |
| Form Factor | Rack / Tower (convertible) |
| Product Type | Extended Battery Module (EBM) |
| Sub-Category | Power Equipment |
| Compatibility | PR1000LCDRTXL2UA PR1500LCDRTXL2U PR1500RTXL2U PR1500RTXL2UC PR1500RTXL2UCN PR2000RTXL2U PR2000RTXL2UC PR2000RTXL2UCN PR2200LCDRTXL2U PR2200RTXL2U PR2200RTXL2UC PR2200RTXL2UCN PR3000LCDRTXL2U PR3000RTXL2U PR3000RTXL2UC PR3000RTXL2UCN OR1500LCDRTXL2U OR2200LCDRTXL2U |
| Environmental | Storage Elevation: 0 - 50000 ft (0 - 15239 m) Operating Elevation: 0 - 10000 ft (0 - 3048 m) Storage Temperature: 5 - 113 °F (-15 - 45 °C) Operating Temperature: 32 - 104 °F (0 - 40 °C) Storage Relative Humidity: 0 - 95% (non-condensing) Operating Relative Humidity: 0 - 95% (non-condensing) |
| Product Title | CyberPower BP48VP2U02 48V/70A Extended Battery Module (2U Rack/Tower) |
| Certifications | UL1778 cUL CE FCC Class B VCCI RCM RoHS Compliant |
| Output Current | 70 A |
| Output Voltage | 48 VDC |
| Additional Notes | Metal housing suitable for data center and critical applications Some vendors list optional rail kit CP2Rail02 as alternative packaged accessory |
| Electrical Input | Circuit Breaker: 70 A Input Plug Type: IEC-320 C14 Input Voltage Range: 100 VAC - 240 VAC Input Frequency Range: 50 Hz - 60 Hz Nominal Input Voltage: 120 VAC |
| Shipping Dimensions | Depth_cm: 62.23 Depth_in: 24.5 Width_cm: 55.88 Width_in: 22 Height_cm: 26.67 Height_in: 10.5 |
| Included Accessories | Faceplate User Manual Rack mounting kit (ears/rails) Tower mounting kit BM (DC) cable Two IEC C13–C14 cables |
CyberPower XL Battery Expansion Pack 48VDC 70A 50cm- Selected Models for PR1500ERTXL2U/PR2000ERTXL2U/PR3000ERTXL2U- (BP48VP2U02)-2 Yrs Adv. Replacement WTY
