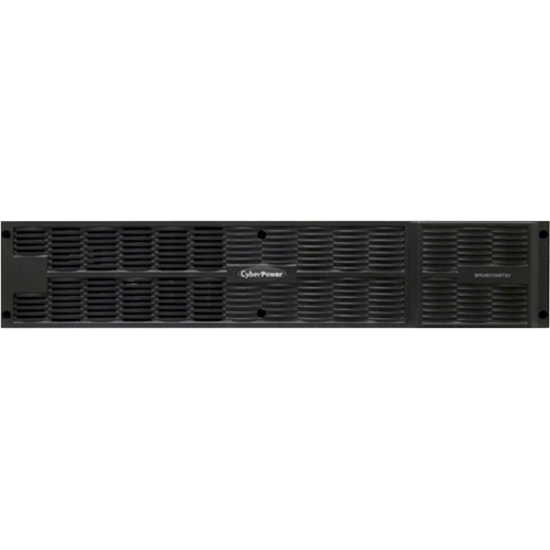

CyberPower Xl Battery Expansion Pack - Selected Models For Pr3000Elcdrt2U- (Bpe48V75Art2U)-2 Yrs Adv. Replacement BPE48V75ART2U
SKU
112205
Brand
MPN
BPE48V75ART2U
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$750.00
Buy Now And Earn 750 Reward Points!
GENERAL
Nominal Output Voltage (Vdc): 48
Rated Output Current (A): 60
BATTERY
Battery Type: Sealed Lead - acid
Battery Quantity (pcs): 8
Single Battery Voltage (V): 12
Single Battery Capacity (AH): 9
Built – in Charger: Yes
Typical Recharge Time (Hours): 6
Expansion Ready: Yes
Compatible UPS Models: PR3000ELCDRT2U/PR1000ELCDRTXL2U/PR1500ELCDRTXL2U/PR2000ELCDRTXL2U
PHYSICAL
Form Factor: Rack/Tower
Enclosure Construction: Metal
Color: Black
Rackmount Rail: Yes
Rackmount Ears: Yes
PHYSICAL SIZE
Dimensions (WxHxD) (in.): 17.05 x 3.46 x 18.9
Dimensions (WxHxD) (mm): 433 x 88 x 480
Weight (lbs.): 68.6
Weight (kg): 31.2
Installed Rack Height (U): 2
SHIPPING DEMENSIONS
Dimensions (WxHxD) (mm): 563 x 275 x613
Net Weight (kg): 37
Nominal Output Voltage (Vdc): 48
Rated Output Current (A): 60
BATTERY
Battery Type: Sealed Lead - acid
Battery Quantity (pcs): 8
Single Battery Voltage (V): 12
Single Battery Capacity (AH): 9
Built – in Charger: Yes
Typical Recharge Time (Hours): 6
Expansion Ready: Yes
Compatible UPS Models: PR3000ELCDRT2U/PR1000ELCDRTXL2U/PR1500ELCDRTXL2U/PR2000ELCDRTXL2U
PHYSICAL
Form Factor: Rack/Tower
Enclosure Construction: Metal
Color: Black
Rackmount Rail: Yes
Rackmount Ears: Yes
PHYSICAL SIZE
Dimensions (WxHxD) (in.): 17.05 x 3.46 x 18.9
Dimensions (WxHxD) (mm): 433 x 88 x 480
Weight (lbs.): 68.6
Weight (kg): 31.2
Installed Rack Height (U): 2
SHIPPING DEMENSIONS
Dimensions (WxHxD) (mm): 563 x 275 x613
Net Weight (kg): 37
| RoHS | Yes |
|---|---|
| Brand | CyberPower |
| Color | Black |
| Model | BPE48V75ART2U |
| Category | Power and Rack Equipment |
| Features | Rack/Tower convertible Built-in charger for EBM Metal housing Power on/off switch (local) User-replaceable rear-panel fuse |
| Description | The CyberPower BPE48V75ART2U is a 2U rack/tower convertible Extended Battery Module (EBM) that provides prolonged runtime for compatible CyberPower UPS systems. It houses eight sealed 12V 9Ah lead-acid batteries in a rigid metal enclosure and connects via plug-and-play DC connectors and heavy-gauge power cord for easy installation. The unit includes a built-in charger to allow EBMs to charge directly from utility power, supports unlimited daisy-chaining for extended run-times, and is designed for data center and critical applications. Rack ears/rails, a local power on/off switch and an accessible rear-panel fuse are provided. Certified to CE, EAC and RCM standards and covered by a 2-year product and battery warranty. |
| Form Factor | 2U, Rackmount / Tower convertible |
| Part Number | 132912 |
| Weight (kg) | 31.2 |
| Battery Type | Sealed lead-acid (SLA) |
| Manufacturer | CyberPower Systems, Inc. |
| Product Type | Extended Battery Module (EBM) |
| Sub-Category | Power Equipment |
| Weight (lbs) | 68.6 |
| Compatibility | PR1000ELCDRTXL2U PR1500ELCDRTXL2U PR2200ELCDRTXL2U PR3000ELCDRT2U |
| Product Title | CyberPower BPE48V75ART2U 48V 2U Extended Battery Module (8 x 12V 9Ah) |
| Certifications | CE EAC RCM |
| Expansion Ready | Yes |
| Storage Elevation | 0 - 49,213 ft (0 - 15,000 m) |
| Enclosure Material | Metal |
| Operating Elevation | 0 - 9,843 ft (0 - 3,000 m) |
| Included Accessories | Heavy-gauge power cord with plug-and-play DC connectors Rackmount rails Rackmount ears |
| Shipping Weight (kg) | 37 |
| Battery Configuration | 3 strings of 4 in series |
| Shipping Weight (lbs) | 81.4 |
| Battery Quantity (pcs) | 8 |
| Daisy-chain Capability | Unlimited EBMs can be daisy-chained |
| Dimensions (WxHxD) (in) | 17.05 x 3.46 x 18.9 |
| Dimensions (WxHxD) (mm) | 433 x 88 x 480 |
| Battery Built-in Charger | Yes |
| Battery User-replaceable | No |
| Rated Output Current (A) | 60 |
| Installed Rack Height (U) | 2 |
| Storage Temperature (°C) | -15 ~ 45 |
| Storage Temperature (°F) | 5 ~ 113 |
| Single Battery Voltage (V) | 12 |
| Warranty - Battery (Years) | 2 |
| Warranty - Product (Years) | 2 |
| Operating Temperature (°C) | 0 ~ 40 |
| Operating Temperature (°F) | 32 ~ 104 |
| Nominal Output Voltage (Vdc) | 48 |
| Single Battery Capacity (Ah) | 9 |
| Typical Recharge Time (Hours) | 6 |
| Shipping Dimensions (WxHxD) (in) | 22.17 x 10.83 x 24.13 |
| Shipping Dimensions (WxHxD) (mm) | 563 x 275 x 613 |
| Storage Relative Humidity (Non-condensing) (%) | 0 ~ 95 |
| Operating Relative Humidity (Non-condensing) (%) | 0 ~ 95 |
CyberPower XL Battery Expansion Pack - Selected Models for PR3000ELCDRT2U- (BPE48V75ART2U)-2 Yrs Adv. Replacement
