Description
Single & Multi Mode Support
Duplex LC Connector
Max Distance 10Km

D-Link?s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link?s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

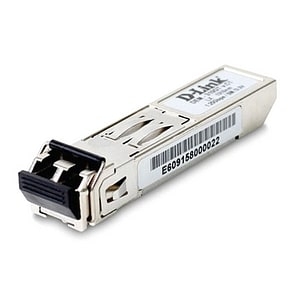

The DEM-310GT is a high performance 1310nm multimode/Singlemode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on multimode/Singlemode fiber for distances of up to 550m/550m/10km on 62.5µm/50µm/9µm respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-310GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.

Product/Performance Specifications

Optical Receiver Sensitivity
-20dBm (max)

Interface Options

Connector Type
LC

Operational Ranges

Support Voltage
3.1-3.5V

Max Voltage
6.0V

Max Current
300mA

Safety Certifications and Environmental Information

Class 1 Laser
EN 60825-1

FDA 21
1040.10 & 1040.11

Physical Specifications

Dimensions (WxDxH)
1.19 x .47 x 2.25in (3.02x 1.19 x 5.71cm)

Warranty and Support Information

Warranty
2 Year Warranty

Support
Free Technical Support

Ordering Information

DEM-310GT
1000BASE-LX SFP Up to 10km

DEM-311GT
1000BASE-SX SFP Up to 220/550m
