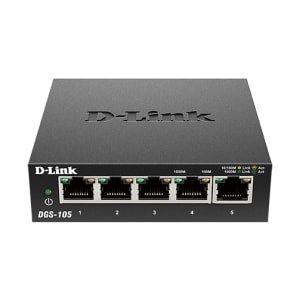

5-Port Gigabit Unmanaged Desktop Switch

DGS-105

The DGS-105 5-Port Gigabit Unmanaged Desktop Switch offers an economical way for SOHO and small and medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.

Description

Rugged Metal Chassis, Desktop/Wall Mount
D-Link Green, Energy Efficient Design
802.1P QoS, Limited Lifetime Warranty

Effortless High Speed Networking

With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-105 5 Port Gigabit Switch is ideal for transferring files quickly. Featuring easy access front Ethernet ports with bi-color LED indicators per port to quickly distinguish link status. The switch features IEEE 802.1p QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming. Additionally the switch features a Kensington Security Slot on the rear panel where users can fasten the unit to a table or desk.

Think Green

The DGS-105 is a plug-and-play networking switch that offers D-Links Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and only using as much power as is necessary. Working together these innovative features drastically reduce power consumption and heat dissipation, resulting in extended life and substantial cost savings.

Environmentally Friendly

The DGS-105 Gigabit switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. Built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmental friendly.

Features

Number of Ports
5 Ports

Type of Ports
10/100/1000 Gigabit Ports

Green Technology Energy Savings
Eco-friendly technology, reduced power consumption

MAC Address Table Size
MAC Address Table Size 2K

Switch Fabric Forwarding Capacity
Switching Capacity 10 Gbps

IEEE 802.1p QoS

IEEE 802.3x Flow Control

ANSI/IEEE 802.3 Nway Auto-Negotiation

Energy-Efficient Ethernet (EEE)

Supports Jumbo Frames

Supports Cable Diagnostics Function

Plug-and-Play

Technical Specifications

Switching Fabric

10Gbps

Standards

IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1pQoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol

CSMA/CD

Data Transfer Rates

Ethernet:

10 Mbps (half duplex), 20 Mbps (full duplex)

Fast Ethernet:

100 Mbps (half duplex), 200 Mbps (full duplex)

Gigabit Ethernet:

2000 Mbps (full duplex)

Topology

Star

Network Cables

10BASE-T:

UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX, 1000BASE-T:

UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

Auto MDI/MDIX adjustment for all ports

LED Indicators

Per port: Link/Activity/Speed
Per device: Power

Transmission Method

Store-and-forward

MAC Address Table

2K

MAC Address Learning

Automatic update

Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

128KB per device

Jumbo Frames

9,000 Bytes

QoS

4 Queues,strict mode

General Specifications

DC Input

External 5V/1 A Level V Power Adapter

Power Consumption

Power On (Standby):

DC input: 0.5 watts
AC input: 1.0 watts

Maximum:

DC input: 2.01 watts
AC input: 3.10 watts

Heat Dissipation
Power On (Standby) AC input: 3.41 BTU/h
Maximum DC input: 6.854 BTU/h

MTBF

1,688,338 hours

Operating Temperature

32 to 130 F (30 to 50 C)

Storage Temperature

-14 to 158 F (10 to 70 C)

Operating Humidity

10% to 90% RH non-condensing

Storage Humidity

5% to 90% RH non-condensing

Dimensions

3.9 x 3.8 x 1.1 inches(100 x 98 x 28 mm)

Weight

10.08 ounces(286 grams)

Certifications

FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB

Warranty

Warranty

Limited Lifetime

Order Information

DGS-105

5-Port Unmanaged Gigabit Switch
